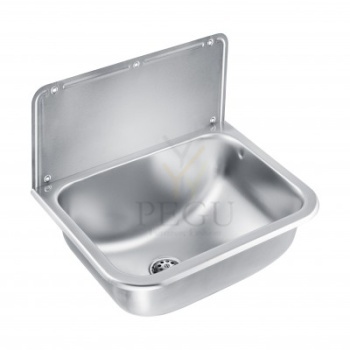

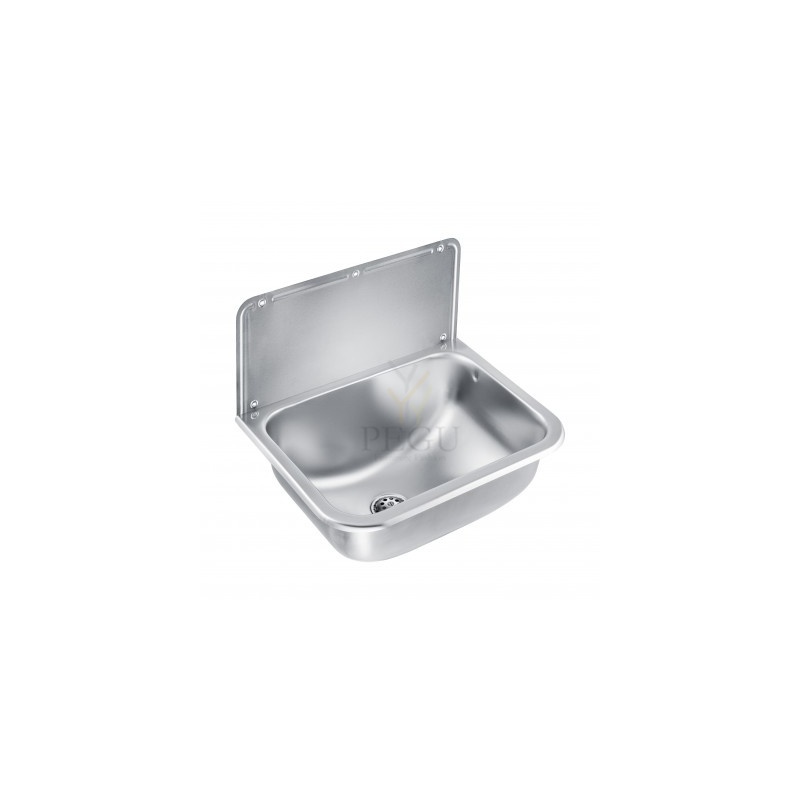

Intra GUB1 R/V teras valamu, pritsmisplekiga 455x340x412mm
Kaubamärk:
Ühik: tk
Tarneaeg: 14 -21 päeva
Proovi kupongikoodi PEGU-KEVAD ! Vali toode täishinnaga, lisa see ostukorvi ja sisesta kupongikood ostu sooritamisel! Kupongikoodi kasutamise aeg on piiratud!
Lugupeetud PEGU.EE veebipoes külastajad!
Tere tulemast meie internetipoes! Me ei ole lihtsalt iseteeninduse kassa. Kui teil on vaja nõu või abi toote valimisel, võtke meiega julgesti ühendust kas e-mailiga või messendzeriga, telefoni teel. Oleme alati valmis pakkuma teile personaalset teenindust! Täname külastuse eest!
PEGU.EE meeskond
Valamu R/V terasest
Garaazi/koristusruumi jaoks
DESCRIPTION
MONOBLOCO S21 WC pan with cistern
Ref. 110390
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 815 x 620mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 21kg.
10-year warranty.
TECHNICAL FEATURES
MONOBLOCO S21 WC pan with cistern
Ref. 110390
Height | 815mm |
---|---|
Length | 620mm |
Width | 370mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
353,80 €
automatic washing system for soles with rotary brushes - 230V, 50Hz
RMP 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections in the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above floor level. Large pieces of dirt are collected by a sieve, which can be easily cleaned. The sieve and brush can be taken out without using a tool.
The RMP 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.
Package contents
- body of the washing machine
- removable grid
- electronics with photocell
- rotary brush
- hand brush
- jerican holder
- priming hose
- adjustable supporting legs
- central stop button
Radius of sensor | 0,5 m |
Water inlet | G 1/2“ |
Water pressure | 0,1 – 1,0 MPa |
Outlet | G 6/4” |
Electricity protection | IP 55 |
Power supply | 230 V, 50 Hz |
Power requirement | 370 W |
Water temperature | max. 42°C |
Weight | 41 kg |
- Set up water inlet as per picture
- Set up outlet G 6/4” via effluvial cover
- Set up cable for power supply – 230 V, 50 Hz
Intra seinale kinniatav majandusvalamu VK 655x505x250mm, R/V teras
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
Pissuaari mehhanism infra-red paigalduse karbiga, adaptoriga 230V/AC
SLP 02NZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
Order number | 42023 |
Code | SLP 02NZ |
Supply specification
Technical information
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
