Intra koristaja seinapealne L1 R/V teras valamu,  pritsmisplekiga 490x390x245mm Zoom

Intra koristaja seinapealne L1 R/V teras valamu, pritsmisplekiga 490x390x245mm

Tootekood: I-L1
Kaubamärk:
Ühik: tk
Tarneaeg: 14 -21 päeva
Hind: 496,00 €
446,40 €
Kuumakse alates: 37,94 €
Kogus: - +

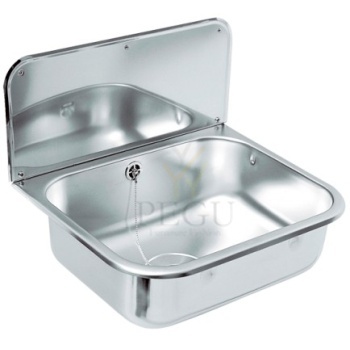

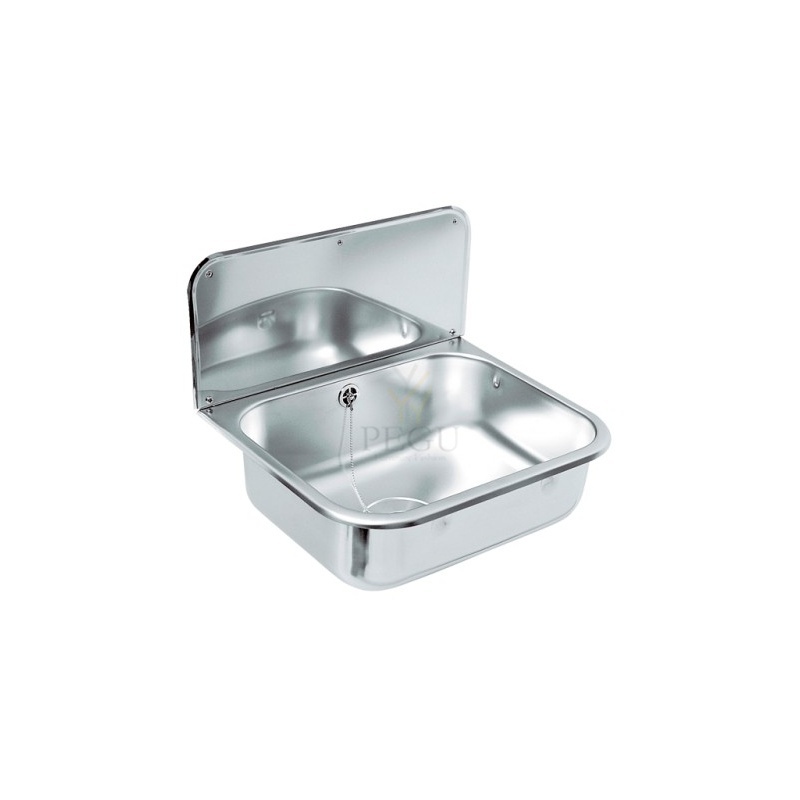

Intra koristaja seinapealne L1 R/V teras valamu

pritsmisplekiga 490x390x245mm

Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" waste with plug and overflow.

Failid

Sarnased tooted

Köögisegisti Damixa Pine kõrge G-tila kroom

1706600

Tootekood: D1706600 ,   Tarneaeg: 7 päeva ,   Viimistlus:
157,34 € (10%)
174,82 €

Valamu äravool labori valamule 1 1/2" BSP x 70mm Broen Lab 97B0073


SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black
Net weight: 0.2 kg
Dimensions: Ø73, 1½” BSP (tolerance ± 1mm)
Including adjustable screw on nutø
Tootekood: B-97B0073 ,   Tarneaeg: 2-3 nädalad ,   Viimistlus:
20,33 €

Külma või eelsegatud vee laborikraan F-300MM

Broen Lab 25340161001-52B


S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340161001-52B ,   Tarneaeg: 3-7 päeva ,   Viimistlus:
273,41 €

SOS Silmadušš stop -start

Broen Lab 17927009


Ögondusch för bakkant av ho

Ögon/ansiktsdusch med bänkfäste. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon- & ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck. Aktiveras automatiskt då den för hand fälls ned över diskho, stängs när den fälls tillbaka.

• Min. arbetstryck: 1,5 bar
• Bänkmontage
• POLYCOAT står emot de flesta kemikalier
• FLOWFIX: 14 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 4,5 kg
• Anslutning: inv. DN15

Artikel nummer: 17 927 009
RSK nummer: 755 9685

Tootekood: B-17927009 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
964,56 €

AZP Brno adapter 1-3 punkte ZAC 1-20




ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
106,72 €
