Inva käetugi FROST, 780mm, harjatud N1961

Mediclinics käetugi parem sinale/põrandale, roostevaba teras AISI304 harjatud

 BSD020CS

General description

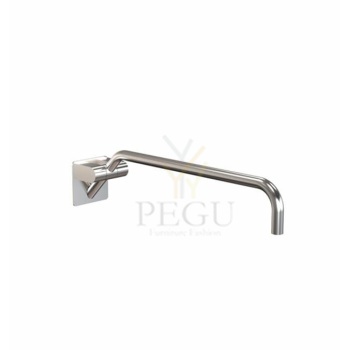

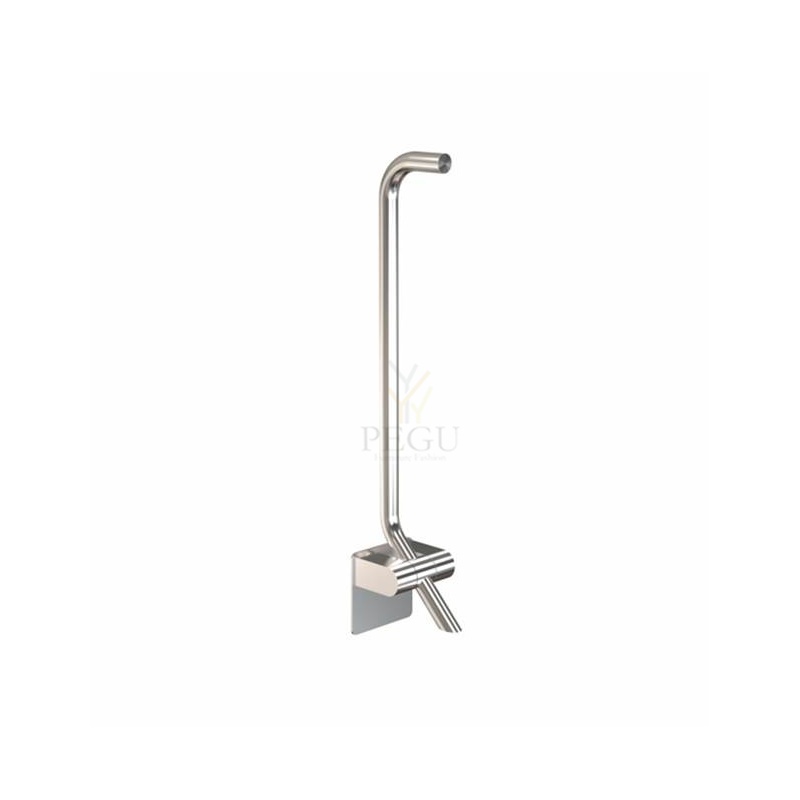

•   Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.

•   With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.

•   These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced

  mobility. Models suitable for public use.

•   Well suited for keeping bathrooms and public enclosures barrier-free.

•   Highest durability and great resistance to rusting.

•   Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.

•   Supplied with plugs and screws to fix the bar to a brick wall.

  Components and materials

  •   BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.

  •   BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.

  •   BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.

  •   BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.

  •   TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.

  •   CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.

  •   SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.

Mediclinics käetugi seinale kinnitatav kolme punktiga , R/V teras AISI304 poleeritud

BFD600C

General description

•   Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.

•   With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.

•   Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.

•   Highest durability and rusting resistance.

•   Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.

•   These grab bars are supplied with a kit to fix the bar to a brick wall.

  Components and materials

•   BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.

•   BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.

•   BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.

•   BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.

•   TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.

•   CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.

•   SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
