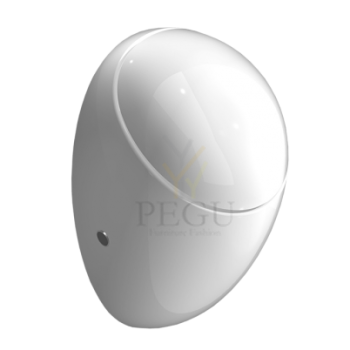

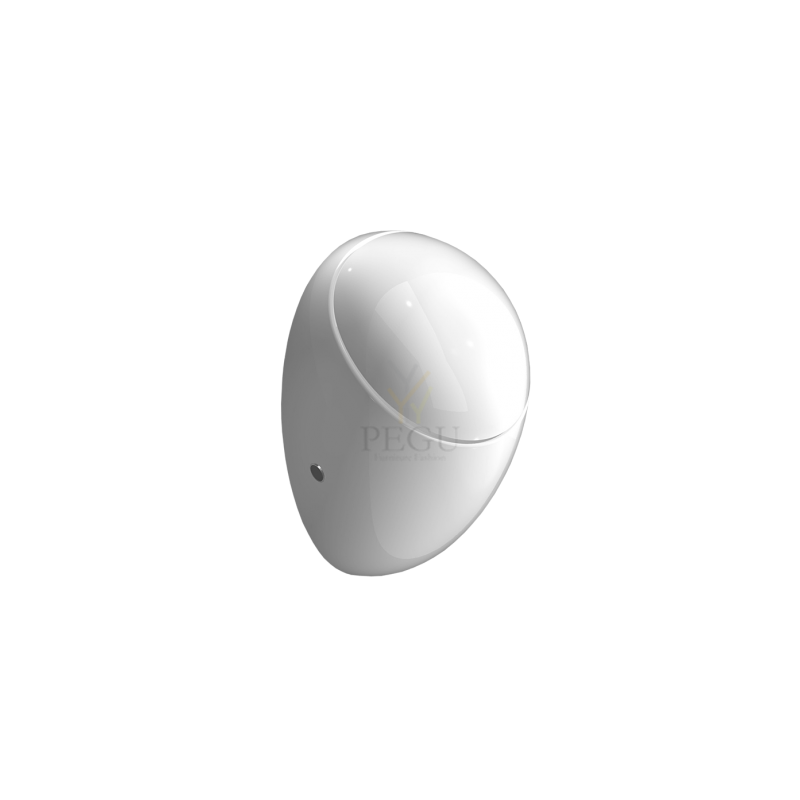

Keraamiline HOME kaanega pissuaar Alessi LAUFEN radariga Sanela, 24V DC

Tootekood: SA-SLP24R
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
2586,00 €
Kuumakse alates: 220,24 €
Kogus: - +

LP 24R



Urinal Alessi with cover with a radar flushing unit, 24 V DC



Characteristics

  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01244
Code SLP 24R


Supply specification

SLP 24R - Supply No. 01244 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon, plastic cover

Technical information

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing

Video



Failid

Kokku sobivad tooted

Adapter 220/24V DC 1-2 segistile, 1-3 pissuaare

Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.

Tootekood: SA-SLZ01Y ,   Tarneaeg: 14 päeva
129,00 €
