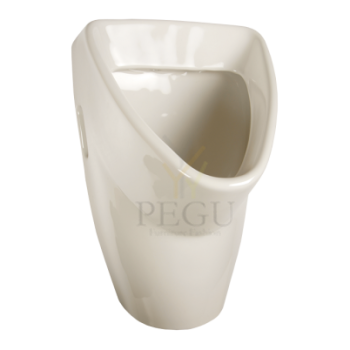

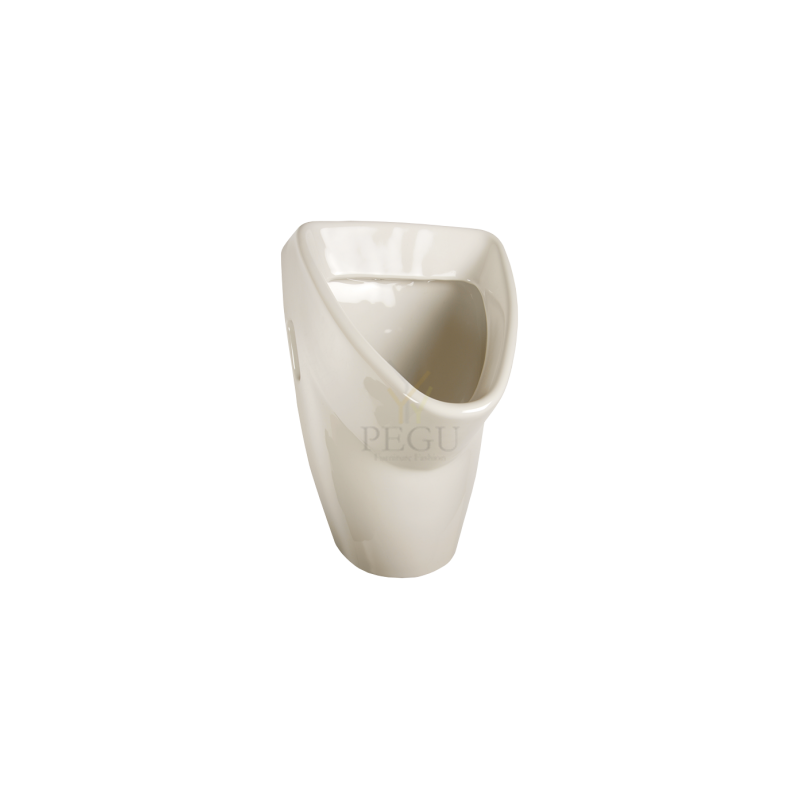

Keraamiline pissuaar Livo radariga Sanela, integreeritud adapter 230V/ AC

Tootekood: SA-SLP31RZ
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
976,00 €
Kuumakse alates: 82,96 €
Kogus: - +
   - või -

Keraamiline pissuaar Livo radariga Sanela,  integreeritud adapter 230V/ AC

SLP 31RZ



Urinal Livo with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01315
Code SLP 31RZ


Supply specification

SLP 31RZ - Supply No. 01315 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber seal, siphon, mounting set, paper drill template, power supply

Technical information

Operating voltage:230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Video



Failid

Sarnased tooted

Pissuaarikraan 1/2-1/2" 6 sek

Isesulguva mehhanismiga, kroom

Ühendustoru on komplektis

Tootekood: P31713 ,   Tarneaeg: 7 päeva
167,20 € (5%)
176,00 €

Kollektiivne pissuaari renn 1800 mm roostavabast terasest

Tootekood: PURM-1800 ,   Tarneaeg: 3-4 nädalad
1715,00 €

COMBINATION PAPER TOWEL-, SENSOR - SOAP DISPENSER 950ML BOTTLE AND WASTE BIN WP 500E

298 x 1348 x 120 mm
ca. 250 paper towels / sensor with 950 ml soap bottle / 11 l



  • Combination consisting of a sensor liquid soap dispenser, paper towel dispenser and
    a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
  • All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
    Further available surfaces: see below.
  • Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
  • Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
  • Also refillable with large container using the plug-in tank as an option.
  • Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
  • Designed for approx. 250 standard paper towels in zigzag fold.
    Paper size (folded): 240-250 mm x 100-115 mm.
  • Inspection slots to indicate fill level.
  • Accessible for refilling through lockable front flap with fall protection.
  • Waste bin equipped with removable mesh basket.
    Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
  • Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
  • eModule battery-powered with two 1.5 V Baby/LR14 batteries.
    Power supply available as an option.
  • Wear parts and front panels can be replaced as modules.
  • Installation dimensions: 300 x 1350 x 110 mm
  • Mounting: With eight screws in wall opening through fixing holes in the side walls.
  • Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.
  • Weight (in kg): 15,8
Tootekood: WAG-WP500e ,   Tarneaeg: 14-21 päeva
1361,83 € (5%)
1433,50 €

TECHNICAL FEATURES

LISO urinal divider for wall-mounting
Ref. 100590

Height 700mm
Length 25/50mm
Width 350mm
Thickness 1.5mm
Finish 304 polished satin stainless steel
Tootekood: DE-100590 ,   Tarneaeg: 14-30 päeva
756,00 €

RMO 02



automatic washing system for wellingtons

RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

  • body of the washing machine
  • removable grid
  • electronics with photocell
  • three rotary brushes
  • jerican holder
  • priming hose
  • adjustable supporting legs
  • central stop button
Radius of sensor 0,7 m
Water inlet G 1/2“
Water pressure 0,1 – 1,0 MPa
Outlet G 6/4”
Electricity protection IP 55
Power supply 230 V, 50 Hz
Power requirement 370 W
Water temperature max. 42°C
Weight 95 kg
  • Set up water inlet as per picture
  • Set up outlet G 6/4” via effluvial cover
  • Set up cable for power supply – 230 V, 50 Hz



Tootekood: AZP-RMO 02 ,   Tarneaeg: 3-5 nädalat
16293,00 €
