Loputussüsteem pissuaarile aegreleega 230V/AC antivandaalne

Tootekood: SA-SLP01Z
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
399,00 €
Kogus: - +
   - või -

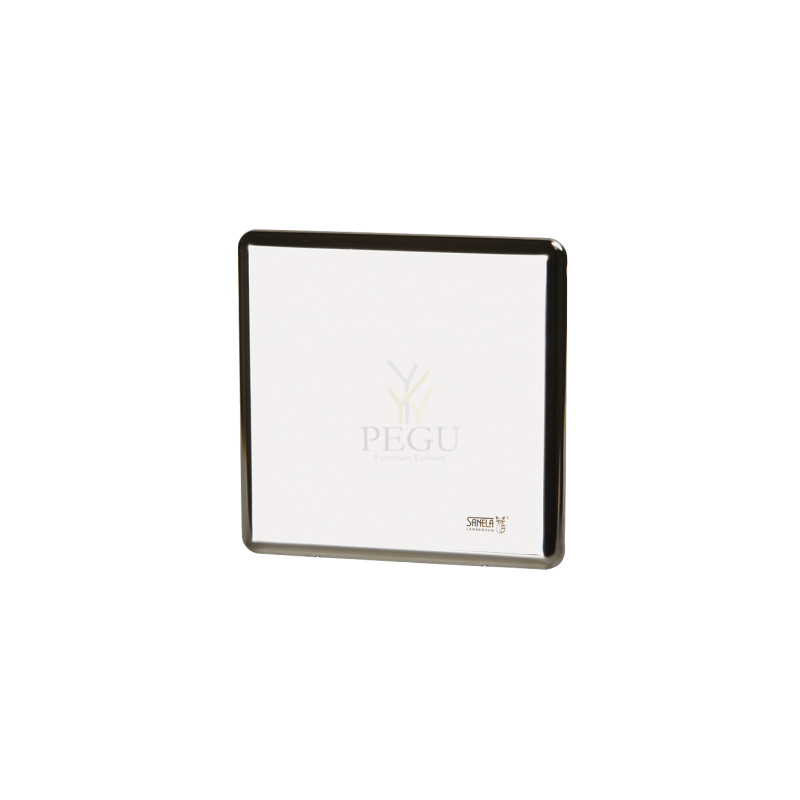

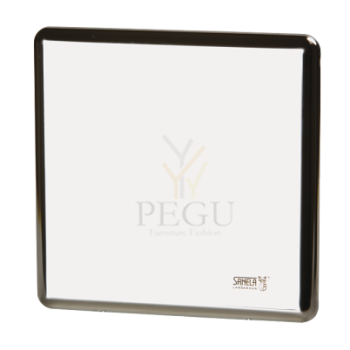

SLP 01Z



Time-controlled flushing unit, 230 V AC



Characteristics

  • vandal-proof
  • time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
  • adjustable flushing time 0,5 - 15,5 s, standard 5 s
  • parameters adjustment by remote control SLD 04
  • adjustable flushing interval 10 min - 3 days,          standard 1 h
  • after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
Order number 01011
Code SLP 01Z


Supply specification

SLP 01Z - Supply No. 01011 stainless steel cover with electronics, stainless steel mounting box with brass screw coupling, power supply, remote control SLD 04

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
