LVI disain roostevaba trapikaas 197x197x4 TETRIS 3316951

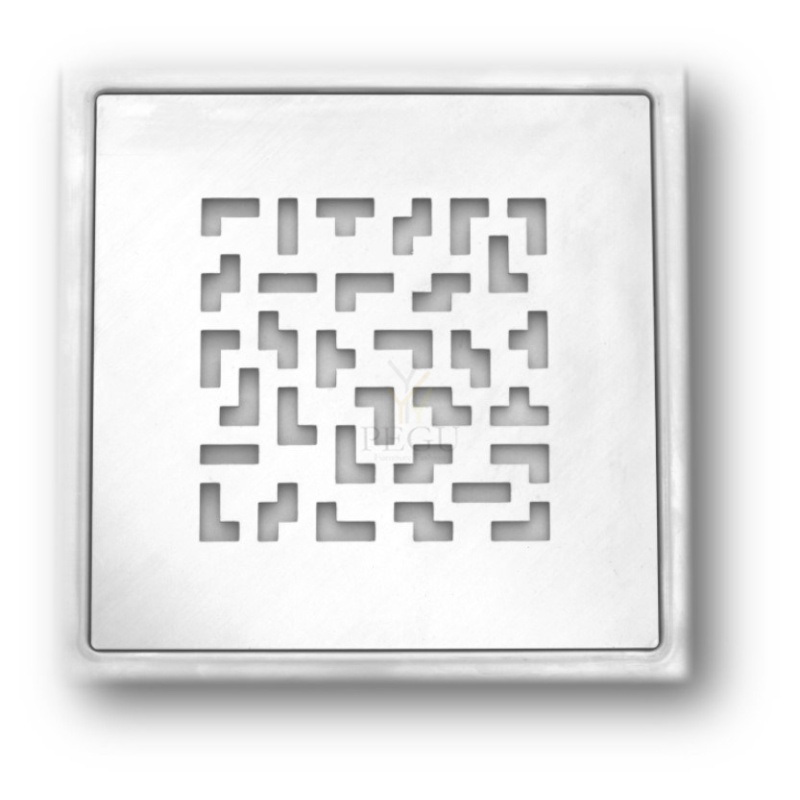

LVI disain roostevaba trapikaas 197x197x4 TÄHKÄ Must 3316966

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.

Lattiakaivon kannen lisätiedot:

Valmistaja: LVI-Pörssi
Kehyksen ulkomitat: 197 x 197 mm
Korkeus 4 mm
Materiaali: ruostumaton teräs (AISI304)
Väri: Musta

Tootekood: LVI3316966 , Tarneaeg: 14-21 päeva , Viimistlus:

56,83 €

Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega 3315936

Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega

Vieser One untrapped drain DN32/40 with support legs

HVAC No. 3315936

Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap.

Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Technical specifications

Vieser No.

52640

HVAC No.

3315936

EAN

6418685526403

Package (box/pallet)

7/84

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,54 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

0,6l/s

General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating. The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Tootekood: AKV52640 , Tarneaeg: 3-7 päeva

41,00 €

Vieser 51206 Betoonivalu tõsterõngas ümmargusele kaanele 3317318

Vieser Distance ring

HVAC No. 3318314

EAN 6418685512062

To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.

(Above the waterproofing only)

Technical specifications

Vieser No.

51206

HVAC No.

3318314

EAN

6418685512062

Package (box/pallet)

20/480

Package dimensions

15 x 5 x 15 cm

Package weight

0,1 kg

Material

Polypropylene PP

Usage

To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.

General information

(Above the waterproofing only )

Tootekood: AKV51206 , Tarneaeg: 3-7 päeva

12,00 €

Vieser 51190 Hüdroisolatsioonikrae 3319661

Vieser membrane flange

HVAC No. 3319661

EAN 6418685511904

For Vieser floor drains, untrapped drains and extension rings when using waterproofing paint.

Compatible with all Vieser floor drains and extension rings.

Must be attached with the clamping ring supplied with the floor drain or extension ring.

Technical specifications

Vieser No.

51190

HVAC No.

3319661

EAN

6418685511904

Package (box/pallet)

12/288

Package dimensions

40 x 3 x 30 cm

Package weight

0,2 kg

Material

TPE

Usage

Must be attached with the clamping ring supplied with the floor drain, untrapped drain or extension ring.

General information

For Vieser floor drains, untrapped drains and extension rings when using waterproofing paint.
Compatible with all Vieser floor drains and extension rings.

Tootekood: AKV51190 , Tarneaeg: 3-7 päeva

14,00 €

Trapikaas plastraamiga 51254 Vieser Classic 160x160 mm RST 3316255

Trapikaas plastraamiga 51254 Vieser Classic 160x160 mm

Roostevaba teras

Vieser Classic - Stainless steel grating with plastic frame – 160×160

HVAC No. 3316255

For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.

51254

HVAC No.

3316255

EAN

6418685512543

Package (box/pallet)

20/800

Package dimensions

22 x 2 x 18,5 cm

Package weight

0,4kg

Material

Grating: Stainless steel (AISI 304) Frame: ABS

Durability

200kg

Usage

For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

Tootekood: AKV51254 , Tarneaeg: 3-7 päeva

53,00 €
