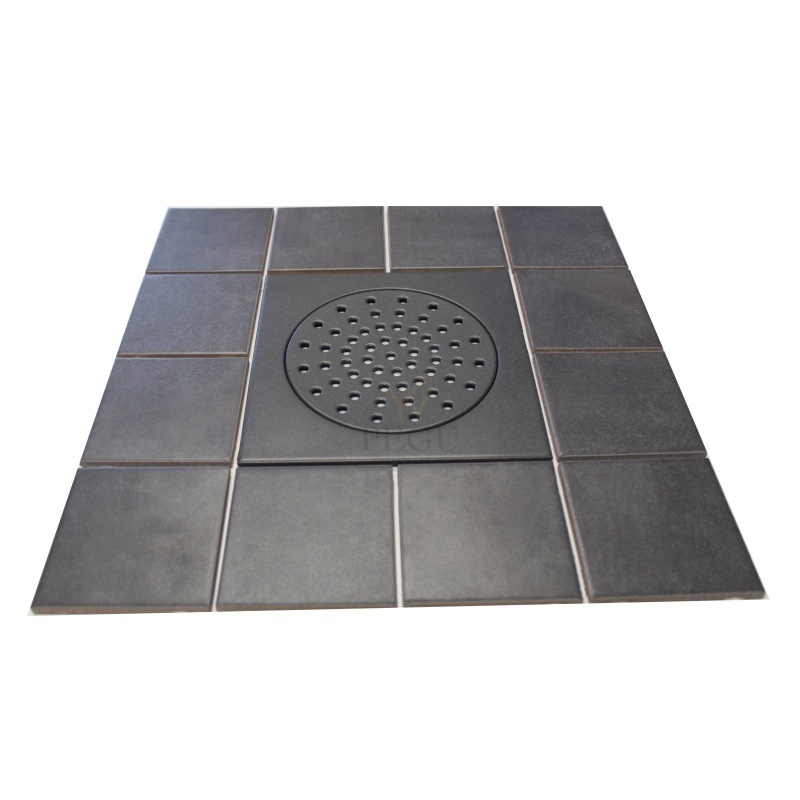

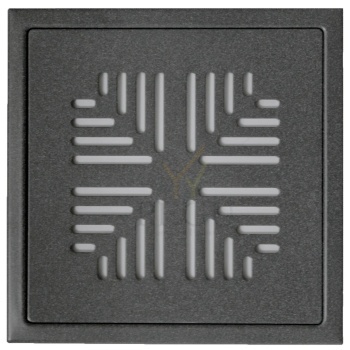

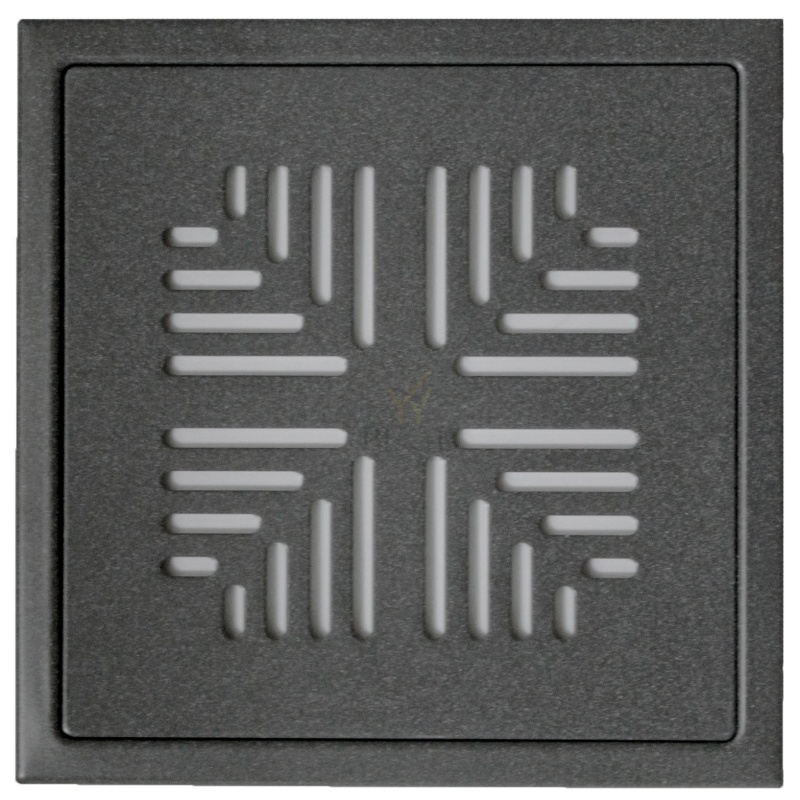

LVI disain roostevaba kaas 197x197x4 TÄHKÄ Antrasiit

Vieser One 52601 Horisontaaltrapp 75 3x32/40 tugijalgadega

Vieser One floor drain DN 75 3×32/40 with support legs

HVAC No. 3315931

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

echnical specifications

Vieser No.

52601

HVAC No.

3315931

EAN

6418685526014

Package (box/pallet)

12/96

Package dimensions

24 x 14,5 x 22,5 cm

Package weight

0,9 kg

Material

polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,6l/s

General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52601 , Tarneaeg: 3-7 päeva

47,78 €

Vieser One 6004512 Horisontaaltrapp EXTRA madal 50 1x32 1.2L/sek

Vieser One horizontal drain DN50 1x32 extra low

HVAC No. 3317307

The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.

Technical specifications

Vieser No.

6004512

HVAC No.

3317307

EAN

6430066742325

Package (box/pallet)

10/120

Package dimensions

35 x 25 x 70 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.

Flow

1,2 l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.

Tootekood: AKV6004512 , Tarneaeg: 3-7 päeva

45,75 €

Vieser One 52631 Vertikaaltrapp 75

Vieser One vertical floor drain DN 75

HVAC No. 3315979

Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52631

HVAC No.

3315979

EAN

6418685526311

Package (box/pallet)

15/120

Package dimensions

20 x 25 x 20 cm

Package weight

0,65 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

2,3l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52631 , Tarneaeg: 3-7 päeva

42,70 €

Vieser 51180 Tõsterõngas 12mm

Vieser low model extension ring 12 mm

HVAC No. 3318951

The package contains the extension ring, a white lip seal, a grey clamping ring and a white support ring.

Please note:

a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.

The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.

A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.

Tootekood: AKV51180 , Tarneaeg: 3-7 päeva

35,58 €

Trapikaas plastraamiga 51241 Vieser Modren 197x197 mm RST

Trapikaas plastraamiga 51241 Vieser Modren 197x197 mm

Roostevaba teras

Vieser Modern - Stainless steel grating with plastic frame – 197×197

HVAC No. 3315952

For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.

51241

HVAC No.

3315952

EAN

6418685512413

Package (box/pallet)

20/480

Package dimensions

26 x 2 x 22 cm

Package weight

0,6kg

Material

Grating: Stainless steel (AISI 304) Frame: ABS

Durability

200kg

Usage

For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

Tootekood: AKV51241 , Tarneaeg: 3-7 päeva

57,95 €
