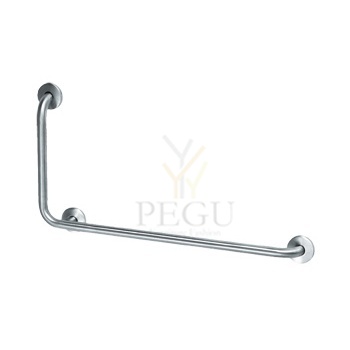

Mediclinics invakäetugi 90" vasak R-V teras AISI304 poleeritud

Tootekood: MBAI090C
Kaubamärk:
Ühik: tk
Tarneaeg: 14 -21 päeva
Hind: 124,00 €
117,80 €
Kogus: - +
   - või -

General description

L454 x L869 mm



  •   Grab bar, 90o angle to the right (BAD090C & BAD090CS) or to the left (BAI090C & BAI090CS) with snap flange cover, made of stainless steel AISI 304, for showers, baths and changing rooms.

  •   These grab bars are very useful and highly recommended to achieve barrier-free accessibility both residential and public spaces.

  •   Concealed screw mounting flanges.

  •   Highest durability and rusting resistance.

  •   Mounting hardware for brick wall is included for easy installation.

    Components and materials

  •   BAD090C & BAI090C: AISI 304 stainless steel, bright finish.

  •   BAD090CS & BAI090CS: AISI 304 stainless steel, satin finish.

  •   TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along

    the bends.

  •   CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes

    for wall mounting.

  •   SNAP FLANGE COVER: three units made of stainless steel AISI 304, 1.5 mm thick and Ø 82 mm. Each cover snaps over mounting

flange to conceal mounting screws.

Failid

Sarnased tooted

Käetugi 738mm ületõstetav

R/V teras AISI304 harjatud

d 32mm

toru paksus 1,5mm

Pelavajutav äärikukate d 85mm

Tootekood: MBG0900CS ,   Tarneaeg: 7-14 päeva
174,80 € (5%)
184,00 €

The supporting armrest provides assistance to those with limited strength and mobility.

It increases the safety in all areas of the bathroom - such as by the wash basin, the toilet or in the shower. Nova2 Care

Height: 190mm
Width: 145mm
Depth: 780mm
Diameter: Ø32mm
Weight: 6,6 kg.
Designer: Bønnelycke mdd
Material: Stainless steel

Tootekood: FRON1961-W ,   Tarneaeg: 14-21 päeva
379,05 € (5%)
399,00 €

General description

L454 x L869 mm



  •   Grab bar, 90o angle to the right (BAD090C & BAD090CS) or to the left (BAI090C & BAI090CS) with snap flange cover, made of stainless steel AISI 304, for showers, baths and changing rooms.

  •   These grab bars are very useful and highly recommended to achieve barrier-free accessibility both residential and public spaces.

  •   Concealed screw mounting flanges.

  •   Highest durability and rusting resistance.

  •   Mounting hardware for brick wall is included for easy installation.

    Components and materials

  •   BAD090C & BAI090C: AISI 304 stainless steel, bright finish.

  •   BAD090CS & BAI090CS: AISI 304 stainless steel, satin finish.

  •   TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along

    the bends.

  •   CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes

    for wall mounting.

  •   SNAP FLANGE COVER: three units made of stainless steel AISI 304, 1.5 mm thick and Ø 82 mm. Each cover snaps over mounting

flange to conceal mounting screws.

Tootekood: MBAI090CS ,   Tarneaeg: 14 -21 päeva
117,80 € (5%)
124,00 €

General description

  •   Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.

  •   With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.

  •   Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.

  •   Highest durability and rusting resistance.

  •   Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.

  •   These grab bars are supplied with a kit to fix the bar to a brick wall.

    Components and materials

  •   BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.

  •   BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.

  •   BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.

  •   BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.

  •   TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.

  •   CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.

  •   SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.

Tootekood: MBFD600CS ,   Tarneaeg: 7 -14 päeva
144,40 € (5%)
152,00 €

Stützklappgriff mit Grundplatte vario, E-Taster: WC-Schließer, Anschluß verdeckt mit Montageplatte
Länge 725 mm,

aus Aluminium, kratzfeste Pulverbeschichtung mit antibakteriellem
Schutz, lieferbar in den Cavere Farben, mit trigonometrischer Griffkontur zum ergonomischen Abstützen und Greifen, Platz sparend durch zentrische Lagerkonsole, links und rechts einsetzbar, mit robuster und wartungsfreier Gleitlagertechnik, mit einstellbarer Bremse, einfache Montage oder Demontage durch Einhängen in die Grundplatte, Grundplatte aus Edelstahl mit
ausgleichender Wandauflage, verdeckte Verschraubung,nachrüstbar mit Papierrollenhalter 7449 110, max. zul. Belastung: 100 kg,

Belastbar bis 100 kg.

Allgemeine Beschreibung E-Taster: Ø 32 mm, mit Bildzeichen: Farbe blau für WC-Spülung, Farbe rot für die Option Ruftaste, Farbe schwarz für eine frei belegbare Option (neutral). Spiralkabel 4-adrig 0,25 mm² für Steuerspannung bis 24 V.. Stützklappgriff vario, einhängbar, kann mit max. zwei E-Tastern geliefert werden. E-Taster mit der Funktion »Schließer« werden überwiegend für WC-Spülungen eingesetzt, können aber auch mit einer frei belegbaren Option ausgestattet werden. Die Funktion »Öffner« wird überwiegend bei Rufanlagen verwendet.

Das Befestigungsmaterial ist nach den baulichen Gegebenheiten festzulegen und separat zu bestellen.

Tootekood: NB7447873.091 ,   Tarneaeg: 14-21 päeva
585,20 € (5%)
616,00 €
