Mediclinics käetugi vertikaalselt pöörduvad põrandatoega, R/V teras harjatud
Dimensions 825 x 807 x 100 mm
Bar and leg diameter Wall plate thickness Ø 32 mm 3,0 mm
Paper roll dispenser diameter Ø 10 mm
MONOBLOCO 700 PMR WC pan with cistern
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
MONOBLOCO 700 PMR WC pan with cistern
|Finish||Polished satin 304 stainless steel|
Valamusegisti, sisaldab X-ChangeTMühendust
- Artikli number 60715
- Viimistlused Kroom/must
- Keraamiline tööorgan.
- Veesäästu funktsioon Eco-Save.
- Ilma põhjaklapita.
Components y materials

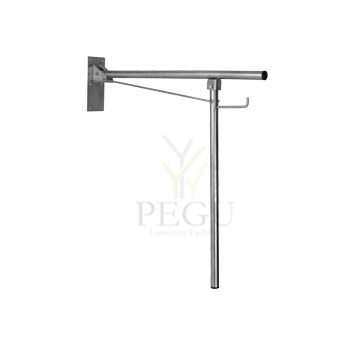

FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.
With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.
Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.
Highest durability and rusting resistance.
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.
These grab bars are supplied with a kit to fix the bar to a brick wall.
Components and materials
BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
