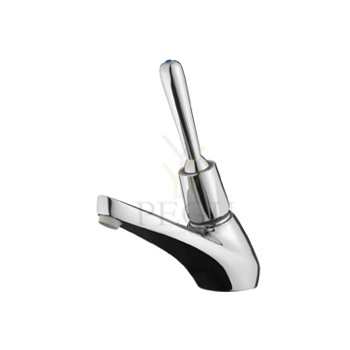

Presto külmavee kraan lasteaed 64652.jpg Zoom

Presto isesulguv valamukraan pika käepidemega kroom 15sek

Tootekood: P64652
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 189,00 €
179,55 €
Kuumakse alates: 15,26 €
Kogus: - +
   - või -

Presto isesulguv valamukraan pika käepidemega kroom 15sek

> Working pressure :

1 to 5 bar

> Flow :

3 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time :

15 seconds (± 5 sec.)

> Operation:

Simple press on the lever to activate the water flow

> Hydraulic supply :

M G 1/2" (15x21) - Cold or premixed water

> Thermal resistance :

Resistant to a temperature of 75°C for 30 minute thermal shock

> Security :

Non-removable, wear-proof red or blue marker

> Delivered with :

1 Nut for 12x14 tube
1 Filter gasket
1 Stainless steel plain washer
1 Brass clamping nut
1 Nitrile plain washer
2 Non-removable, wear-proof coloured marker Instruction manual

> Standards & approvals :

Acoustic class II
Brass body in accordance with EN 1982, EN 12164, EN 12165
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227



Sarnased tooted
9000E Tronic
Kontaktivaba valamusegisti temperatuuriseade kahvaga
Kroom FMM-nr:1641-0000

Kroom

  • Temperatuuriseade nupuga, akutoitel (aku kaasas)
  • Vandalismikindel, kest üleni metallist
  • ECO funktsioon (vett ja energiat säästev õhusti 5 l/min)
  • Aegreleega loputuse lõpetus üleujutamise vältimiseks
  • 30-sekundiline loputusaeg (anduriga)
  • Võimalik välja lülitada 60 sekundiks (näiteks puhastamiseks)
  • Madal voolutarve, pikk eluiga
  • Võimalik kuuma veega läbi loputada, et desinfitseerida legionella vastu
  • IP-klassi andur, IP67
  • Keskkonnasõbralik materjal, pliivaba, niklivaba

    Paigaldamine:
  • Anduri automaatne kalibreering
  • Pärast seadistamist sobivale temperatuurile, on võimalik nupp asendada ehiskaanega
  • Kõiki mudeleid on võimalik kasutada nii 6V aku toitel või 12V vooluadapteriga
  • Võrguvoolu kasutamiseks on tarvis paigaldada vooluadapter 1623-0000 ja toide FMM 1619-4000 või teise võimalusena trafo FMM 1619-3000
  • Pehmed PEX® voolikud koos integreeritud tagasilöögiklappide ja filtritega (roostevabast terasest)
  • Ava läbimõõt Ø 33,5–37 mm

    Seaded:
  • Reguleeritav maksimaalne temperatuur
  • Programmeeritav hügieeniloputuse funktsioon
  • Seadistatav loputusaeg

    Keskselt juhitav mudel:
  • Komplektis kaabel, millega on võimalik juhtida hügieeniloputust
  • Loputus toimub, kui sissevool on suletud
Tootekood: FMA-16410000 ,   Tarneaeg: 7-14 päeva
585,00 €

Vooluhulga piiraja

12 l/min (3bar)

1401

Veesääst 30% (3 bar)

RST vee vooluhulga regulaator dušisegistile või peaduššile (½” ühendus). Toodetud Saksamaal. Pakendis 1 tk.

Tootekood: RSTJ-1401 ,   Tarneaeg: 7 päeva
12,20 €



1162

Veesääst 60% (konstant)isoflow.

Aeraator segisti jooksutorule M22x1 (sisekeere). Roostevabast terasest sõel. Toodetud Saksamaal. Pakendis 1 tk.

Tootekood: RSTJ-1162 ,   Tarneaeg: 7 päeva
7,63 €

Vajutava nupuga dušši segisti

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar



Tootekood: P35814 ,   Tarneaeg: 14-21 päev
421,80 € (5%)
444,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €
