Trapikaan 51224_2.png Zoom

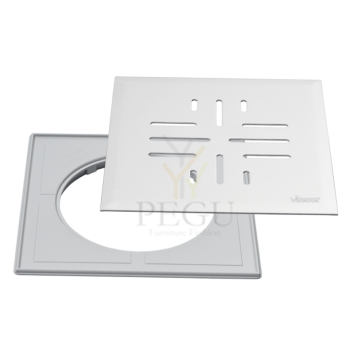

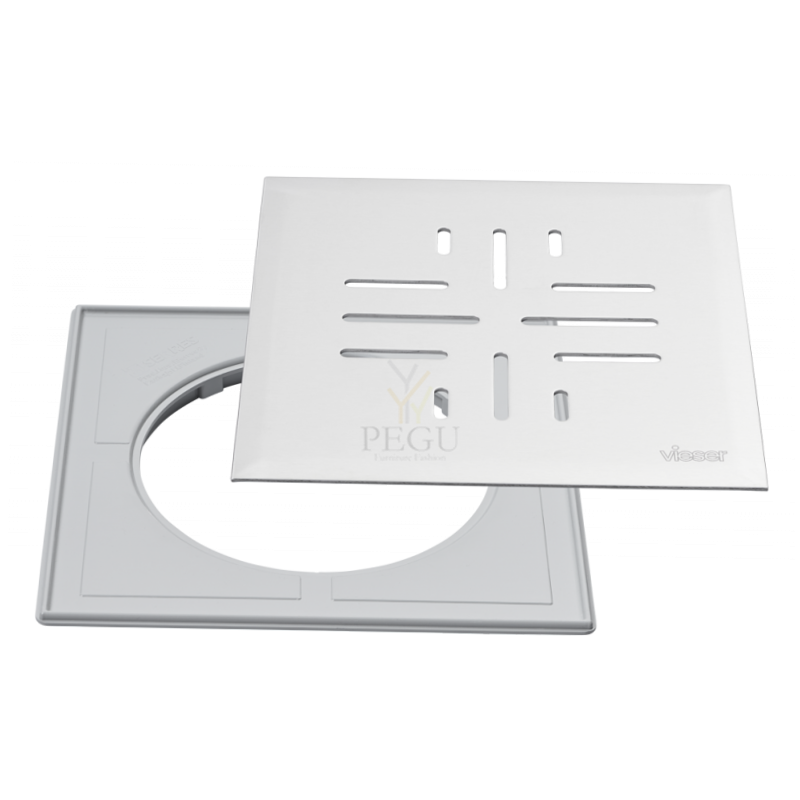

Trapikaas plastraamiga 51224 Vieser Classic+ 197x197 mm RST

Tootekood: AKV51224
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
48,80 €
Kogus: - +
   - või -

Trapikaas plastraamiga 51224 Vieser Classic+ 197x197 mm

Roostevaba teras

Vieser Classic+ with plastic frame197x197

HVAC No. 3316333


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
    (EN 1253) - withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
51224
HVAC No.
3316333
EAN
6418685512246
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg




Sarnased tooted

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316788 ,   Tarneaeg: 7-14 päeva
55,92 €

Vieser One 52600 Horisontaaltrapp 50  3x32/40 tugijalgadega



Vieser One floor drain DN 50 3×32/40 with support legs

HVAC No. 3315930
EAN 6418685526007

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52600
HVAC No.
3315930
EAN
6418685526007
Package (box/pallet)
12/96
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9 kg
Material
polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52600 ,   Tarneaeg: 3-7 päeva
47,78 €

Horisontaalne trapp VIESER 50 mm

Vieser low model floor drain DN 50

HVAC No. 3315971


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.



Technical specifications

Vieser No.
52614
HVAC No.
3315971
EAN
6418685526144
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV52614 ,   Tarneaeg: 3-7 päeva
18,30 €

Trapikaas plastraamiga 51256 Vieser Classic 160x160 mm +d32mm

Roostevaba teras

Vieser Classic Ø32 - Stainless steel grating with plastic frame – 160×160




For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51256
HVAC No.
3316153
EAN
6418685512567
Package (box/pallet)
20/800
Package dimensions
22 x 2 x 18,5 cm
Package weight
0,4kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.


Tootekood: AKV51256 ,   Tarneaeg: 3-7 päeva
54,90 €

Vieser reguleeritav terasraam 51280 197x197 mm RST

Roostevaba teras

Vieser adjustable stainless steel frame 197 x 197

HVAC No. 3316229

  • Adjustable stainless steel frame 197×197 mm
  • Suitable for use with all Vieser 197×197 mm stainless steel gratings
  • To make tilework installation easier, the frame can be adjusted max 15 mm toeach direction. The complete adjustment range is 30 mm
  • Professional’s choice

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor



Technical specifications

Vieser No.
51280
HVAC No.
3316229
EAN
6418685512802
Package (box/pallet)
15/600
Package dimensions
22,5 x 1,5 x 22 cm
Package weight
0,165 kg
Material
Stainless steel (AISI 304)
Usage
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.
General information

The package contains an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.


Interested?
Contact us




Tootekood: AKV51280 ,   Tarneaeg: 3-7 päeva
36,60 €
