Vieser trapikaas 6005478_2.png Zoom

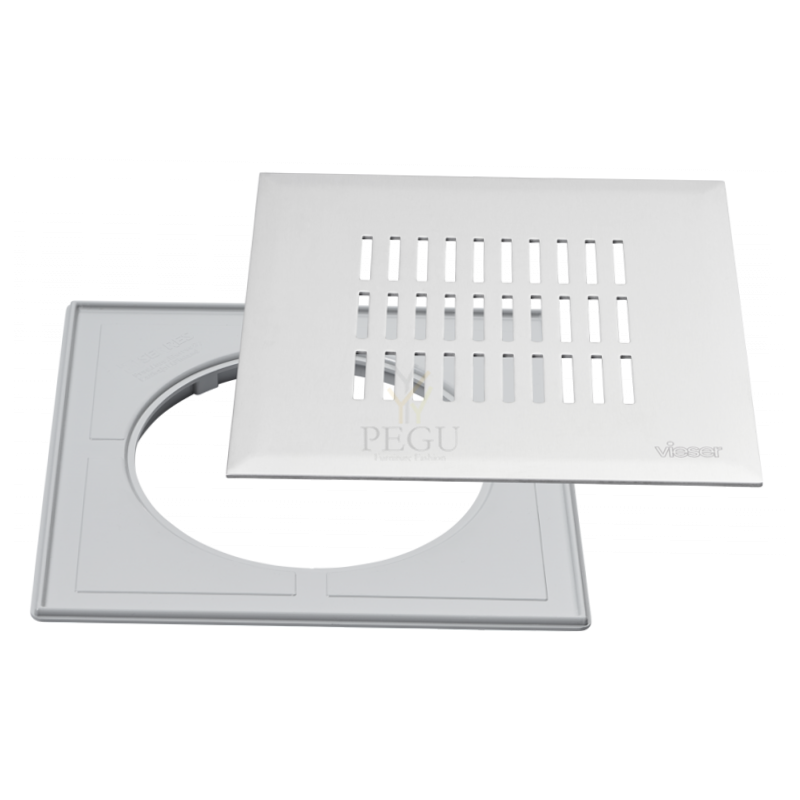

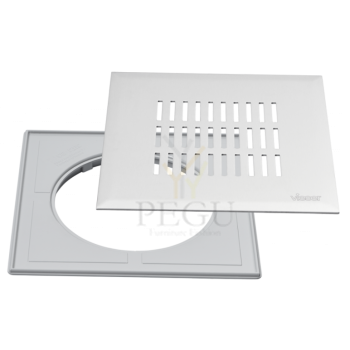

Trapikaas plastraamiga 665478 Vieser LINK 197x197 mm RST

Tootekood: AKV6005478
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
62,02 €
Kuumakse alates: 5,31 €
Kogus: - +
   - või -

Trapikaas plastraamiga 665478 Vieser LINK 197x197 mm RST

Roostavaba teras

Vieser Link with plastic frame197 x 197

HVAC No. 3317312


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Link square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005478
HVAC No.
3317312
EAN
6430066742820
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg


Sarnased tooted

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Antrasiitti
Tootekood: LVI3316976 ,   Tarneaeg: 14-21 päeva
55,92 €

Horisontaalne trapp VIESER 52615 75 mm

Vieser low model floor drain DN 75

HVAC No. 3315972


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.
52615
HVAC No.
3315972
EAN
6418685526151
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,5l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.






Tootekood: AKV52615 ,   Tarneaeg: 3-7 päeva
18,30 €

Vieser 51206 Betoonivalu tõsterõngas ümmargusele kaanele

Vieser Distance ring

HVAC No. 3318314
EAN 6418685512062

To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.

(Above the waterproofing only)

Technical specifications

Vieser No.
51206
HVAC No.
3318314
EAN
6418685512062
Package (box/pallet)
20/480
Package dimensions
15 x 5 x 15 cm
Package weight
0,1 kg
Material
Polypropylene PP
Usage
To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.
General information

(Above the waterproofing only )



Tootekood: AKV51206 ,   Tarneaeg: 3-7 päeva
12,20 €

Trapikaas plastraamiga 51254 Vieser Classic 160x160 mm

Roostevaba teras

Vieser Classic - Stainless steel grating with plastic frame – 160×160

HVAC No. 3316255


For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor



Technical specifications

Vieser No.
51254
HVAC No.
3316255
EAN
6418685512543
Package (box/pallet)
20/800
Package dimensions
22 x 2 x 18,5 cm
Package weight
0,4kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

Tootekood: AKV51254 ,   Tarneaeg: 3-7 päeva
51,85 €

Trapikaas reguleeritava terasraamiga 665483 Vieser Grid 197x197 mm RST


Roostevaba teras


HVAC No. 3317317


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
    (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Grid square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005483
HVAC No.
3317317
EAN
6430066742974
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg
Tootekood: AKV665483 ,   Tarneaeg: 3-7 päeva
88,45 €
