Vieser trapikaas 51291_2.png Zoom

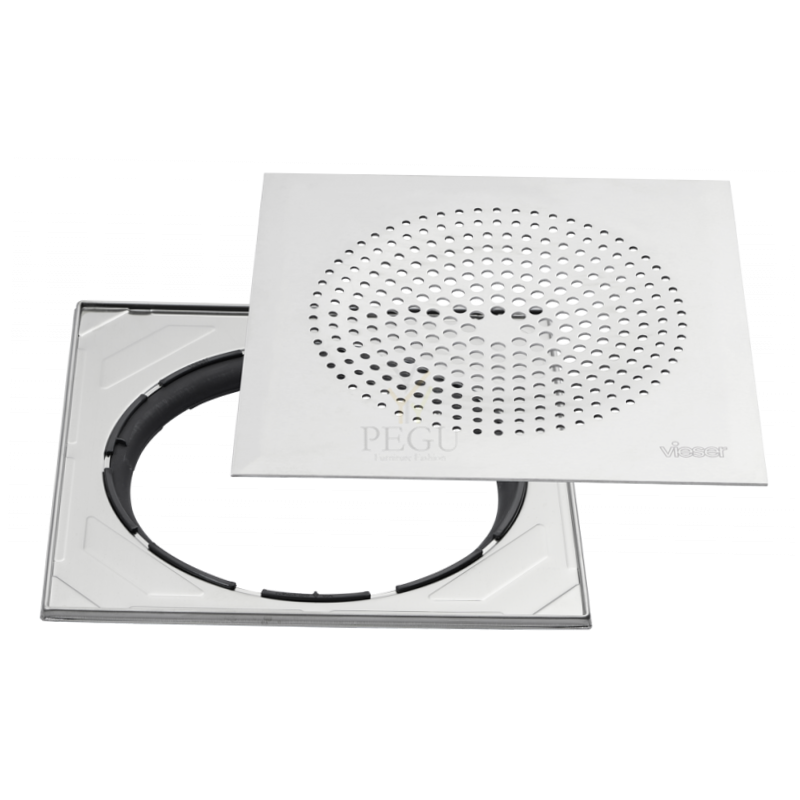

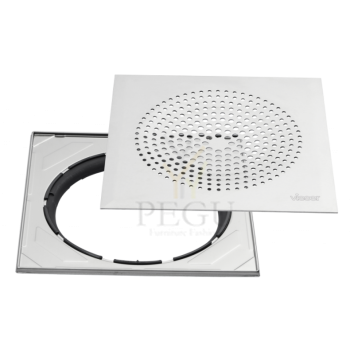

Trapikaas reguleeritava terasraamiga 51291 Vieser Modren 197x197 mm RST

Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
80,60 €
Kuumakse alates: 6,85 €
Kogus: - +
   - või -

Trapikaas reguleeritava terasraamiga 51291 Vieser Modren 197x197 mm RST

Roostevaba teras

Vieser Modern - Stainless steel grating with adjustable stainless steel frame – 197×197

HVAC No. 3315954


The package contains  square Vieser stainless steel grating and an adjustable steel frame.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.

  • Modern grating is our customer survey favourite
  • Modern stainless steel grating and adjustable steel frame 197x197 mm
  • Comes with an easy-to-install adjustable steel frame

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51291
HVAC No.
3315954
EAN
6418685512918
Package (box/pallet)
20/480
Package dimensions
22,5 x 1,5 x 22 cm
Package weight
0,6 kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.

Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
429,93 €

Trapikaas reguleeritava terasraamiga AKV51292 Vieser Classic+ 197x197 mm

Roostevaba teras

 Vieser Classic+ with adjustable steel frame 197×197
HVAC No. 3315955


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
  • (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Classic+ square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
51292
HVAC No.
3315955
EAN
6418685512925
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg



Tootekood: AKV51292 ,   Tarneaeg: 3-7 päeva
74,40 €

Trapikaas plastraamiga 51256 Vieser Classic 160x160 mm +d32mm

Roostevaba teras

Vieser Classic Ø32 - Stainless steel grating with plastic frame – 160×160




For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51256
HVAC No.
3316153
EAN
6418685512567
Package (box/pallet)
20/800
Package dimensions
22 x 2 x 18,5 cm
Package weight
0,4kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.


Tootekood: AKV51256 ,   Tarneaeg: 3-7 päeva
55,80 €

Trapikaas plastraamiga 6005479 Vieser Grid 197x197 mm RST

Roostevaba teras

Vieser Grid with plastic frame 197x197

HVAC No. 3317313


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings

Technical specifications

Vieser No.
6005479
HVAC No.
3317313
EAN
6430066742851
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg

Tootekood: AKV6005479 ,   Tarneaeg: 3-7 päeva
65,10 €

Vieser 6001178 DOT ⌀600mm - Tray renn ümmargune RST


Roostevaba teras


Vieser Dot ⌀600mm - Tray

HVAC No. 3315981


The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately.

Vieser Dot, with its innovative shape and size, represents a new kind of floor drain system that adds the finishing touch to your bathroom’s interior.

  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • With Vieser One drains, you can also make use of three DN32/40 side inlets for the floor drain to facilitate the placement of the drain and the installation of the pipeline.
  • Suitable for both new construction and renovations.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The Vieser Dot floor drain system has a patented solution that enables entirely safe installation and a completely watertight membrane joint. The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate) & (Vieser One and Vieser product certificate when using the Vieser membrane flange)
  • Vieser Dot is a very user-friendly floor drain system. Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Tootekood: AKV6001178 ,   Tarneaeg: 3-7 päeva
880,40 €
