Vieser trapikaan 6005482_2.png Zoom

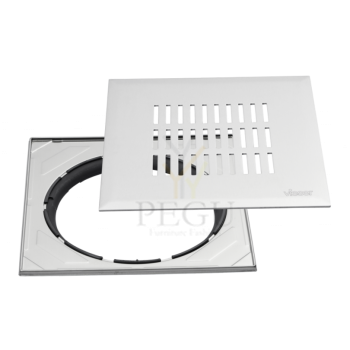

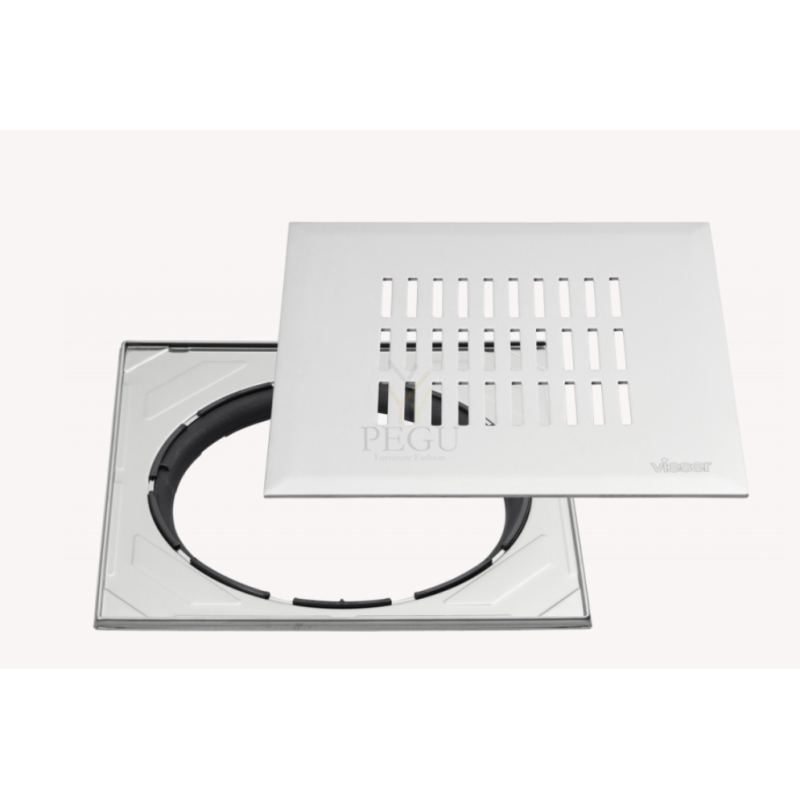

Trapikaas VIESER LINK 6005482 reguleeritava terasraamiga 197x197 RST

Tootekood: AKV6005482
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
88,45 €
Kuumakse alates: 7,54 €
Kogus: - +
   - või -

Trapikaas VIESER LINK 6005482 reguleeritava terasraamiga 197x197

Roostevaba teras

Vieser Link with adjustable steel frame 197x197

HVAC No. 3317316
EAN 6430066742943

NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
    (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Link square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Technical specifications

Vieser No.
6005482
HVAC No.
3317316
EAN
6430066742943
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg



Video



Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316951 ,   Tarneaeg: 7-14 päeva
55,92 €

Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega





Vieser One untrapped drain DN32/40 with support legs



HVAC No. 3315936





Suitable for sewerage systems for regular wastewater.



The Vieser One untrapped drain is part of the Vieser floor drain system.



The untrapped drain can be used with a Vieser extension ringswaterproofing flange or gratings.



The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap.



Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.



Technical specifications

Vieser No.
52640
HVAC No.
3315936
EAN
6418685526403
Package (box/pallet)
7/84
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,54 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
0,6l/s
General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating. The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.



Tootekood: AKV52640 ,   Tarneaeg: 3-7 päeva
39,65 €

Vieser One 52701 põrandatrapi spetsiaalne vesilukk



Vieser One water trap for drain



HVAC No. 3315950




Technical specifications



Vieser No.
52701



HVAC No.
3315950



EAN
6418685527011



Package (box/pallet)
8/320



Package dimensions
13,5 x 11 x 13,5 cm



Package weight
0,1 kg



Material
Polypropylene PP



Usage
Can be installed into any Vieser One floor drain with a water trap also after initial installation.



Tootekood: AKV52701 ,   Tarneaeg: 3-7 päeva
66,08 €

Vieser nurgatrapikaas Corner Core 376 x 376 x 526 RST

Roostavaba teras



Vieser Corner Core triangular floor drain 376 x 376 x 526



HVAC No. 3315980


An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Core adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • Suitable for both new construction and renovations.
  • To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
  • The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
  • Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system - Tiling example

(DWG)Vieser Corner floor drain system - Tiling example



Technical specifications

Vieser No.
52928
HVAC No.
3315980
EAN
6430066741519
Package (box/pallet)
12/144
Package dimensions
410 x 410 x 580
Package weight
1,2kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Installation takes place when the floor is being tiled. The gap between the floor drain and the triangular grating must not be sealed.
General information

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



Tootekood: AKV52928 ,   Tarneaeg: 3-7 päeva
303,98 €
