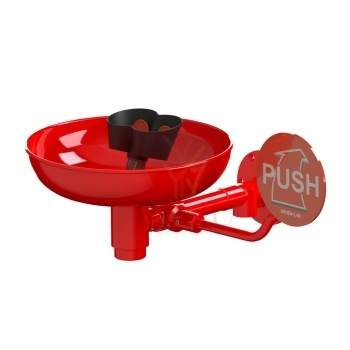

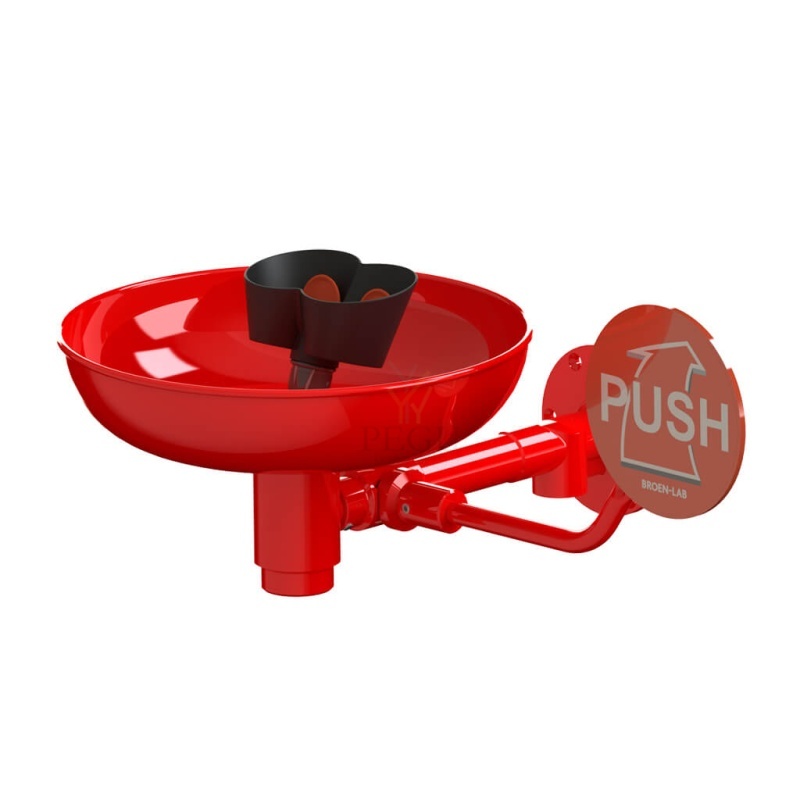

Uus toode SOS silmadušš 2-ne, seinale kinnituv, valamuga 3/4"

Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
1167,84 €
Kuumakse alates: 99,27 €
Kogus: - +
   - või -

Failid

Sarnased tooted

LAB segisti, F-150mm, WPH/WPC (15281009) – Broen Lab

Tehniline laborisegisti koos BALLOFIX® kuulkraaniga

Tehnilised andmed

  • Integreeritud kraan: BALLOFIX® kuulkraan

  • Käepide: Metallist, kaetud BROEN POLYCOAT pulbervärviga
    – märgistus vastavalt EN13792 (meediumi tüüp)

  • Väljalaskeotsik: Täielikult pöörlev

  • Voolikuliitmik: Eemaldatav metallist

  • Mehhanism: Keraamiline

  • Avamine/sulgemine: 180° pööratav (käeliigutusega kang 90°)

  • Temperatuurivahemik: 0–90°C

  • Maksimaalne töörõhk: 10 bar / 147 psi

  • Katsesurve: 1 × töörõhk

  • Kaal: 3 kg


Meediumiga kokkupuutuvad materjalid

  • Metallid: Messing

  • Plastid: POM, PTFE, SPX (vooliku osa)

  • Tihendid: EPDM

  • Määrdeaine: Silikoonipõhine

  • Keraamika: Al2O3 96%

  • Joodis: DIN L-Ag55:Sn


Tellimisteave

Standardkonfiguratsioonide puhul vaata tootekoode allpool.


Lisavalikud:

  • Aerator (õhustaja)

  • Fikseeritud voolikuliitmik

  • Integreeritud tagasilöögiklapp

  • Alternatiivne voolikuühendus või ilma voolikuta

  • Muud sisendühendused (tüüp, pikkus)

  • Riiklikud heakskiidud / sertifikaadid


S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
Solder: DIN L-Ag55:Sn
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
Tootekood: B-25360011039-52B ,   Tarneaeg: 3-4 päeva ,   Viimistlus:
364,89 €

Free-standing eye wash station
Ref. 9201

Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".

TECHNICAL FEATURES

Free-standing eye wash station
Ref. 9201

Height 1050mm
Depth 500mm
Flow rate 20 lpm
Finish Epoxy
Tootekood: DE-9201 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
1123,11 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350401035-52B ,   Tarneaeg: 2-3 nädalad ,   Viimistlus:
598,66 €

Broen 1-le silmadele 45", hädaabi silmadušš, lääbiviik

Min. working pressure: 1.5 bar for all Eye Showers

No. 27 10 003 10 05 011

Weight: Approx. 0.5 kg

Table mounted eye shower with
a single 45° head, incl. 1.5m inlet hose. Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (7 l/min).
Min. working pressure: 1,5 bar.

Tootekood: B-27100031005011 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
472,62 €

Silmadush hädaabidušš Broen 1-e silmale 45" seinakinnitusega

Wall mounted eye wash

Wall mounted eye shower with a one 45° angled heads, incl. 1.5m inlet hose.

Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (14 l/min).



Description

Wall Mount one Eye Wash

SAFETY

Improved trigger lock

Improved activation of the shower

OPERATION

Stay-open dust cap

Light weight

Well-balanced construction

Better spray pattern

RELIABILITY

Easy-to-clean spray head

Anti-limescale design and material choice

Improved functionality

Longer lifetime

Tootekood: B-27100031003011 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
472,62 €
