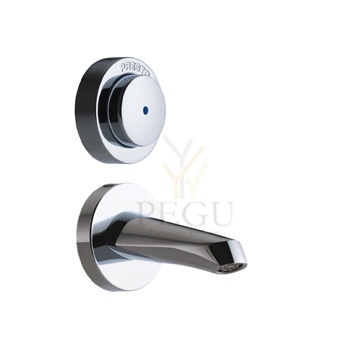

Valamu antivandaalne komplekt 1-200mm seinale 31660

Valamu antivandaalne komplekt 1-200mm seinale 31660

Tootekood: P31660
Kaubamärk:

Ühik: tk
Tarneaeg: 6-7 nädalad

‼️ Kasuta promokoodi SUVI2026 ostukorvis ja saa soodustust – ainult täna!

▼ Loe edasi: ...

✅ Populaarsed tooted Tallinna laos kohe olemas — tarneaeg 1–3 päeva või tule ise järele.

✅ Kui toode on tellimisel, uuri lähemalt — saame tihti pakkuda oodatust kiiremat tarnet: info@pegu.ee

✅ Kõikidele toodetele garantii 2 aastat ja 14‑päevane tagastusõigus.

✅ Automaatne arve e‑postile. E‑arve soovijatel palume lisada märge kommentaaridesse.

ℹ️ Hind sisaldab käibemaksu.

PEGU OÜ — Usaldusväärne ettevõte 2024

kuumaks al. 30,09 €

Hind:

354,00 €

Kuumakse alates: 30,09 €

Valamu antivandaalne komplekt 1-200mm seinale 31660

31660

> Working pressure : 1 to 5 bar

> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time : 15 seconds (± 5 sec.)

> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock

> Security : Patented anti-blocking "S" system to avoid the water to flow continuously

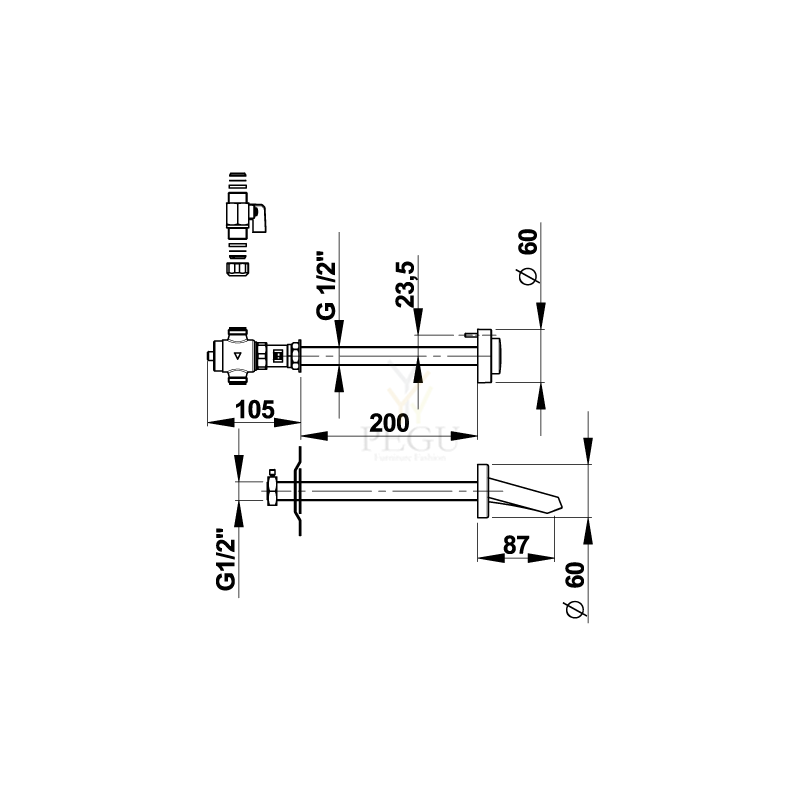

> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922

Failid

31660.pdf

Kokku sobivad tooted

Valamu ventiil antivandaalne Presto 500 S 15 sek 1/2" 31100

31100

Valamu ventiil antivandaalne Presto 500 S 15 sek 1/2"

Tootekood: P31100 , Tarneaeg: 14-21 päeva , Viimistlus:

149,00 €

Peitnupp Presto 18725 1/2" 512S TC, 0,1-20cm Külm vesi (VALAMU,DUSS)

Peitnupp Presto 18725

1/2" 512S TC, 0,1-20cm Külm vesi (VALAMU,DUSS)

Peitnupp Presto 1/2" 512S TC, 0,1-20cm Külm vesi (VALAMU,DUSS)

Tootekood: P18725 , Tarneaeg: 7-14 päeva , Viimistlus:

97,00 €

Sarnased tooted

Sisu Presto dušile Alpa, kroomituid nupp, lühike (35812, 35816) 01017

Sisu Presto dušile Alpa, kroomituid nupp, lühike (35812, 35816)

Dusisegisti Presto varuosa

01017

Sisu

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar

Tootekood: P01017 , Tarneaeg: 7 päeva , Viimistlus:

368,00 €

Joogifontaan, pikk toru 3/8" keere 311QU12

Tootekood: DE-311QU1 , Tarneaeg: 7 päeva , Viimistlus:

188,00 €

Portinox WC pott INS-535-OVC + iste mahagon

Tootekood: PINS-535-OVC+PWC-Wood-mahagon , Tarneaeg: 8 nädalad , Viimistlus:

1824,43 €

AZP Brno adapter 1-3 punkte ZAC 1-20

	ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
	36 VA (ZAC 1/36L)
Electricity protection:	IP 55 (ZAC 1/20, ZAC 1/50)
	IP 20 (ZAC 1/36L)
Weight:	0,8 kg (ZAC 1/20, ZAC 1/36L)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction

ZAC 1/20, ZAC 1/50

Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
Set-up niche for flush mounting – size as per installed source
Distribution to each device is carried out by cable CYKY 2Ax1,5

ZAC 1/36 L

It is installed on the DIN-rail - width of 4 modules

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC 1/20 -

power supply for up to 3 devices - 230V, 50Hz

ZAC 1/50 -

power supply for up to 8 devices - 230V, 50Hz

ZAC 1/36L -

power supply for up to 6 devices - 230V, 50Hz

Tootekood: AZP-ZAC 1-20 , Tarneaeg: 3-4 nädalad , Viimistlus:

106,72 €

Sisu Presto dušile Alpa, kroomituid nupp, lühike (35815, 35813) 01015

Sisu Presto dušile Alpa, kroomituid nupp, lühike (35815, 35813)

01015

Sisu

ALPA

Presto

must

30 sek. töötsükkel 3 bar

Tootekood: P01015 , Tarneaeg: 7 päeva , Viimistlus:

281,00 €
