Delabie Be-line ilukate invatoe kinnitusele matt valge aluminim (seinakinnitusega)
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
"Minu maitsed on lihtsad: parimaga jään kergesti rahule."

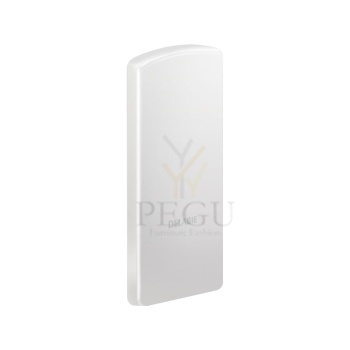

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
Be-Line matte white cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Matte white |
Failid
satiin R/V teras
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
Cavere® paper roll holder, suitable for grab rails,
130 x 115mm, made of Aluminium, scratch-resistant powder coating with antibacterial protection, available in the Cavere® colour range. Can beadded at a later stage, with self-adjusting maintenance-free roll brake.
Supplied with mounting materials.
Exposed shower pack
Ref. DOCMEXP2
Blue powder-coated DOC M Exposed shower pack. 19 items:
2 Drop-down support rails, length 760mm.
3 Grab bars, length 600mm.
2 Grab bars, length 450mm.
1 Lift-up shower seat.
1 Backrest, depth 125mm.
1 Shower curtain rail, 1,200 x 1,200mm.
2 Shower curtains, white PVC.
1 Stainless steel coat hook.
1 SECURITHERM single lever sequential thermostatic exposed shower mixer.
1 Chrome-plated TONIC JET shower head, tamperproof and scale-resistant, with automatic flow rate regulator at 6 lpm.
1 Exposed diverter valve.
1 Multi-mode shower kit, 1.5m hose.
1 Shower hose retaining collar: retains shower hose correctly.
1 Riser pipe, 1m.
CE marked.
DOC M compliant.
