5th Avenue is suitable for most stringent requirements in terms of design and hygiene, a stunning hand-washing system for hotel and residential suites and public lavatories.
Perfect balance between practicality and pleasing aesthetics.
Area of use: public, semi-public, private space.
wall plate selecif yellow rapeseed sorting. sign plate for sorting plastic and metal you. This plate promotes recycling management.
Steel rustproof.
Powder coated steel UV.
Rape yellow RAL: 1021
Collection: collec.
Also available in tri Paper (ref: 56016), various waste (ref: 56019) and glass (ref: 56018).
Are pole mounting: various waste (ref: 56026) Paper (ref: 56028), Plastic / Metal (ref: 56027) and glass (ref: 56028)
Signaalitahvel TUBAG sorteerimiseks sinine RAL5002 Paber
"Minu maitsed on lihtsad: parimaga jään kergesti rahule." - Oscar Wilde
Te olete peaaegu oma eesmärgini jõudnud! Lihtsalt klõpsake tootekaardil ja lisage see ostukorvi, et alustada oma ainulaadse disaini loomist!

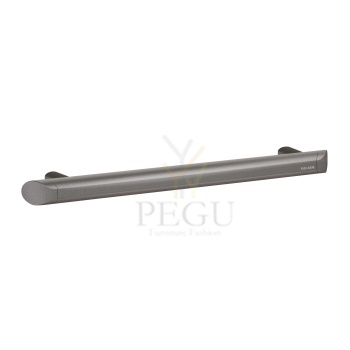

Be-Line® anthracite straight grab bar Ø 35mm, L. 500mm
Ref. 511905C
Be-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
500mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Be-Line® anthracite straight grab bar Ø 35mm, L. 500mm
Ref. 511905C
| Length | 500mm |
|---|---|
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Metallised anthracite powder-coated aluminium |
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
Metallised anthracite shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
White shelf for grab bars for showers
Ref. 511922W
White shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
White shelf for grab bars for showers
Ref. 511922W
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
Nova2 Care
General description
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
Well suited for keeping bathrooms and public enclosures barrier-free.
Highest durability and great resistance to rusting.
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
Käetugi 738mm ületõstetav
R/V teras AISI304
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 85mm
Be-line lift-up shower seat with leg
Ref. 511930C
Be-line removable lift-up for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid seat made from high strength polymer.
Non-slip surface.
Reinforced by a central, hinged leg which folds automatically.
Metallised anthracite finish provides a good visual contrast with the wall.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 443 x 450 x 480mm.
Folded dimensions: 87 x 541mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Be-line lift-up shower seat with leg
Ref. 511930C
| Height | 480mm |
|---|---|
| Depth | 443mm |
| Width | 450mm |
| Finish | Metallised anthracite |
Be-Line drop-down support rail with leg, L. 850mm, white
Ref. 511963W
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 850 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Be-Line drop-down support rail with leg, L. 850mm, white
Ref. 511963W
| Height | 210mm |
|---|---|
| Length | 850mm |
| Width | 120mm |
| Finish | Powder-coated matte white aluminium |
