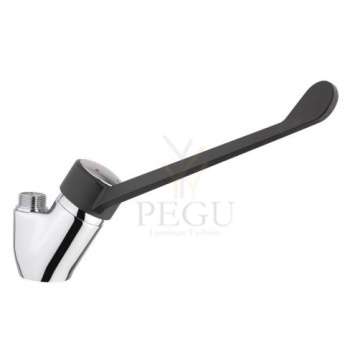

Köögisegisti pikk käepide Idral 09490 3/4"M
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
"Minu maitsed on lihtsad: parimaga jään kergesti rahule."

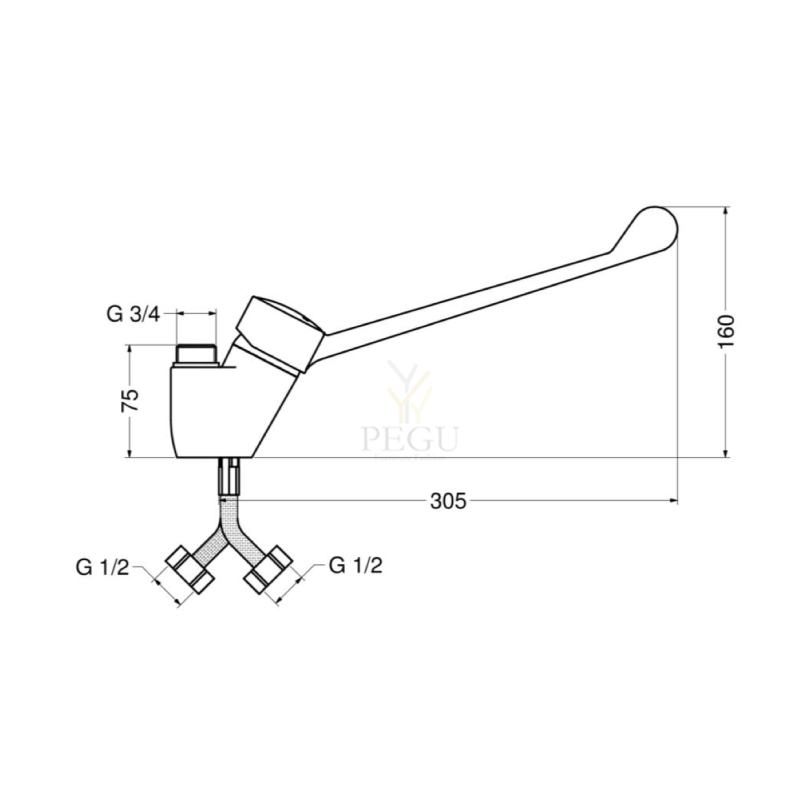

Single hole single lever mixer with side clinic lever. 3/4“ male outlet
COMPOSITION
- Brass chromed tap
- Glass filled nylon clinical lever
- Ceramic disks cartridge
- With stainless steel flexible hoses 1/2" and non-return
valves
OPERATING CHARACTERISTICS
Operating pressure: Min 1 – max 6 bar
Water inlet temperature: 5 – 70 °C
Failid
Dishes pre-rinse shower unit H=1200mm with tap in the middle of the tube For deck mounted mixers/taps
Ceramic disc tap
Extensible “S“ swivel spout 200-300 mm in brass tube Ø 18 mm
Stainless steel spring
Wall fixing kit
Hand shower with rain jet; lever operated; diffuser with shockproof rubber and stop for continuous flow
COMPOSITION
- Chromed brass supply pipe
- Stainless steel spring
- Stainless steel plastic coated flexible hose
- Wall fixing kit
- Shower hand attachment hook
- Tap with ceramic disks headvalve and swinging spout 200 – 300 mm
Showerhand characteristics (art. 09401):
- Brass CW617N internal and chromed parts, plastic PC/ABS external grip
- Anti-limestone diffuser with shockproof rubber protection
- Double interchangeable disk (full flow and “eco” water saving versions)
- Equipped with hook for continuous water flow
- Washable with dishwasher machine up to 90°C
PVD viimistlussed:
PVD:(physical vapor deposition) on kõrgtehnoloogiline molekulaar-protsess mis annab tootele eluaegse garantii tuhmumise vastu.
- Keraamiline tööorgan.
- Põletuskaitsega
- Veesäästu funktsioon Eco-Save.
- Külm start.
- Pööratav jooksutoru.
- 120° pöördepiiraja.
- Kummiaeraator – lihtne puhastada.
Kangsegisti keraamilise töörganiga
Kahes suuna pööratava jooksutoruga.
Toru mõõt: 10 mm
Paigaldusava:30mm, max.35mm
automatic washing system for soles with rotary brushes - 230V, 50Hz
RMP 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections in the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above floor level. Large pieces of dirt are collected by a sieve, which can be easily cleaned. The sieve and brush can be taken out without using a tool.
The RMP 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.
Package contents
- body of the washing machine
- removable grid
- electronics with photocell
- rotary brush
- hand brush
- jerican holder
- priming hose
- adjustable supporting legs
- central stop button
| Radius of sensor | 0,5 m |
| Water inlet | G 1/2“ |
| Water pressure | 0,1 – 1,0 MPa |
| Outlet | G 6/4” |
| Electricity protection | IP 55 |
| Power supply | 230 V, 50 Hz |
| Power requirement | 370 W |
| Water temperature | max. 42°C |
| Weight | 41 kg |
- Set up water inlet as per picture
- Set up outlet G 6/4” via effluvial cover
- Set up cable for power supply – 230 V, 50 Hz
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
