Delabie Be-line ülestõstetav invatugi D42mm L650mm Antracite aluminim 511960C
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
‼️ Kasuta promokoodi KEVAD2026 ostukorvis ja saa soodustust – ainult täna!
▼ Loe edasi: ...
✅ Populaarsed tooted Tallinna laos kohe olemas — tarneaeg 1–3 päeva või tule ise järele.
✅ Kui toode on tellimisel, uuri lähemalt — saame tihti pakkuda oodatust kiiremat tarnet: info@pegu.ee
✅ Kõikidele toodetele garantii 2 aastat ja 14‑päevane tagastusõigus.
✅ Automaatne arve e‑postile. E‑arve soovijatel palume lisada märge kommentaaridesse.
ℹ️ Hind sisaldab käibemaksu.

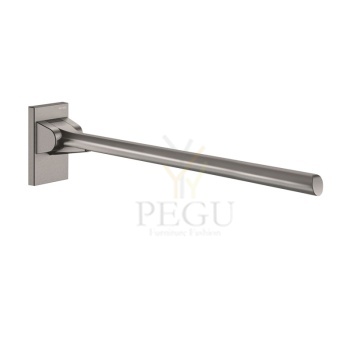

Delabie Be-line ülestõstetav invatugi D42mm L650mm Antracite aluminim 511960C
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 650 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
Failid
Delabie Be-line ilukate invatoe kinnitusele matt valge aluminim (seinakinnitusega) 511950FW
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
Be-Line matte white cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Matte white |
Delabie Be-line ilukate invatoe kinnitusele Antracite aluminim (seinakinnitusega) 511950FC
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
Be-Line metallised anthracite cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Metallised anthracite |
Delabie Be-line ilukate invatoe kinnitusele matt valge aluminim (ilma seinakinnituseta) 511950W
Cover plate for Be-Line drop-down rail
Ref. 511950W
Be-Line matte white cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail
Ref. 511950W
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Matte white |
Delabie Be-line ilukate invatoe kinnitusele Antracite aluminim (ilma seinakinnituseta) 511950C
DESCRIPTION
Cover plate for Be-Line drop-down rail
Ref. 511950C
Be-Line metallised anthracite cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail
Ref. 511950C
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Metallised anthracite |
Mediclinics InvaKäetugi 537mm sirge, harjatud R/V teras BR0400CS
BR0400CS
Käetugi 537mm sirge
R/V teras AISI304
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 81mm
54,00 €
Käetugi 300mm R/V teras AISI 304 satin Wagner Ewar BF600S
satiin R/V teras
Mediclinics Invakäetugi 90" R/V teras AISI304 parem, harjatud
BAD090CS
material:AISI 304 stainless steel | finish:Satin
90º angled grab bar
Solutions with several ergonomics and functionalities and with the possibility of having different materials and finishes. Mediclinics offers professionals a wide range of grab bars for toilets to help persons with reduced mobility use the facilities. Within this range, two product lines are available:
Medinox Series
State of the art design, high durability and easy to maintain. The process used for bending the grab bars guarantees uniformity in the diameter of its curves. Built using AISI 304 stainless steel with a bright and satin finish.
Mediepoxy Series
Solutions manufactured with a corrosion resistant treatment, ideal for very harsh environments, with a low need for maintenance and long durability. The grab bars for toilets are made of steel with an epoxy finish.
Mediclinics grab bars for toilets include a snap flange cover for installation out of sight, offering a perfect visual finish and allowing to be easily blended in with the decoration of the room.
Apart from the grab bars for toilet, Mediclinics provides shower seats made of AISI 304 stainless steel, which are robust, safe and suitable for installation in harsh environments.
143,00 €
Mediclinics invakäetugi 90" vasak R-V teras AISI304 poleeritud BAI090C
BAI090C
General description
L454 x L869 mm
-
Grab bar, 90o angle to the right (BAD090C & BAD090CS) or to the left (BAI090C & BAI090CS) with snap flange cover, made of stainless steel AISI 304, for showers, baths and changing rooms.
-
These grab bars are very useful and highly recommended to achieve barrier-free accessibility both residential and public spaces.
-
Concealed screw mounting flanges.
-
Highest durability and rusting resistance.
-
Mounting hardware for brick wall is included for easy installation.
Components and materials
-
BAD090C & BAI090C: AISI 304 stainless steel, bright finish.
-
BAD090CS & BAI090CS: AISI 304 stainless steel, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along
the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes
for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 1.5 mm thick and Ø 82 mm. Each cover snaps over mounting
flange to conceal mounting screws.
143,00 €
Ülespööratav käetugi, punane nupp 750mm. MUST 091 7447873.091
Stützklappgriff mit Grundplatte vario, E-Taster: WC-Schließer, Anschluß verdeckt mit Montageplatte
Länge 725 mm,
aus Aluminium, kratzfeste Pulverbeschichtung mit antibakteriellem
Schutz, lieferbar in den Cavere Farben, mit trigonometrischer Griffkontur zum ergonomischen Abstützen und Greifen, Platz sparend durch zentrische Lagerkonsole, links und rechts einsetzbar, mit robuster und wartungsfreier Gleitlagertechnik, mit einstellbarer Bremse, einfache Montage oder Demontage durch Einhängen in die Grundplatte, Grundplatte aus Edelstahl mit
ausgleichender Wandauflage, verdeckte Verschraubung,nachrüstbar mit Papierrollenhalter 7449 110, max. zul. Belastung: 100 kg,
Belastbar bis 100 kg.
Allgemeine Beschreibung E-Taster: Ø 32 mm, mit Bildzeichen: Farbe blau für WC-Spülung, Farbe rot für die Option Ruftaste, Farbe schwarz für eine frei belegbare Option (neutral). Spiralkabel 4-adrig 0,25 mm² für Steuerspannung bis 24 V.. Stützklappgriff vario, einhängbar, kann mit max. zwei E-Tastern geliefert werden. E-Taster mit der Funktion »Schließer« werden überwiegend für WC-Spülungen eingesetzt, können aber auch mit einer frei belegbaren Option ausgestattet werden. Die Funktion »Öffner« wird überwiegend bei Rufanlagen verwendet.
Das Befestigungsmaterial ist nach den baulichen Gegebenheiten festzulegen und separat zu bestellen.
