Delabie Be-line ülestõstetav invatugi D42mm L650mm matt valge aluminim
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

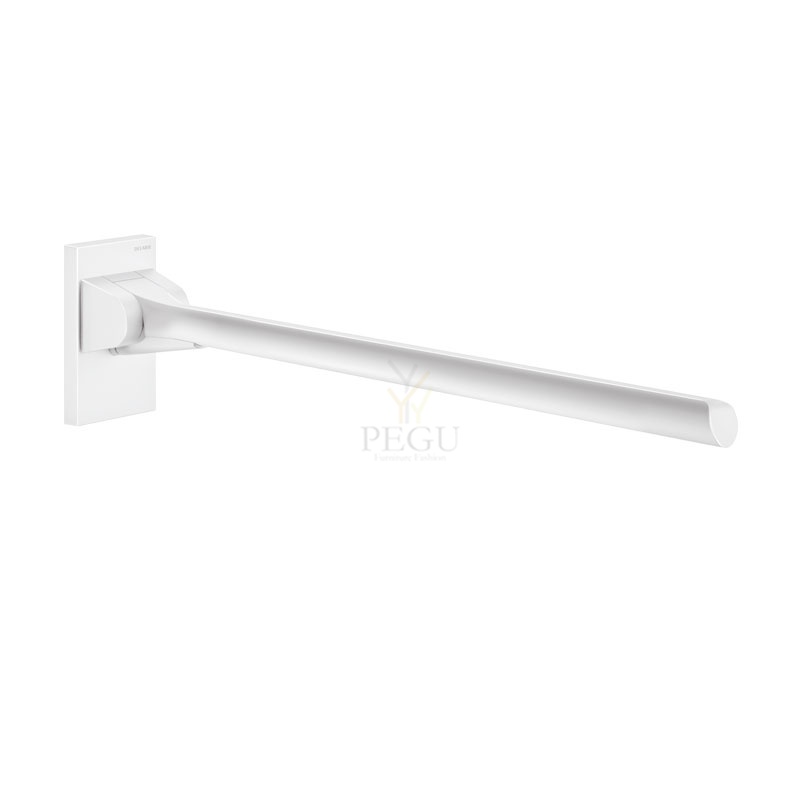

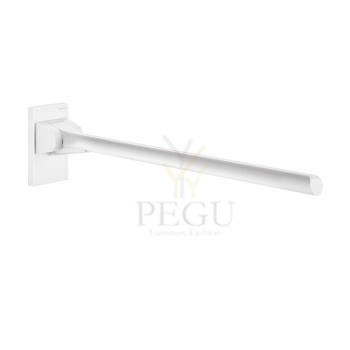

Be-Line drop-down support rail, L. 650mm, white
Ref. 511960W
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 650 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail, L. 650mm, white
Ref. 511960W
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated matte white aluminium |
Failid
DESCRIPTION
Cover plate for Be-Line drop-down rail
Ref. 511950C
Be-Line metallised anthracite cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail
Ref. 511950C
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Metallised anthracite |
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
Be-Line metallised anthracite cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Metallised anthracite |
Cover plate for Be-Line drop-down rail
Ref. 511950W
Be-Line matte white cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail
Ref. 511950W
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Matte white |
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
Be-Line matte white cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Matte white |
