Delabie joogifontään 180100 roostevabast terasest põrandale2.jpg Zoom

Delabie Joogifontöön ILHA H-915mm R-V teras

Tootekood: DE-180100
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
1049,00 €
Kuumakse alates: 89,18 €
Kogus: - +
   - või -

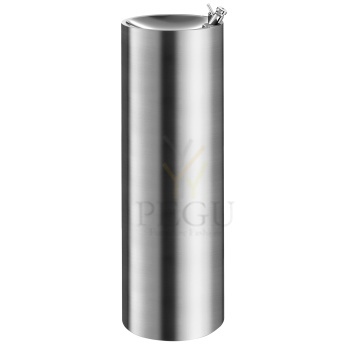

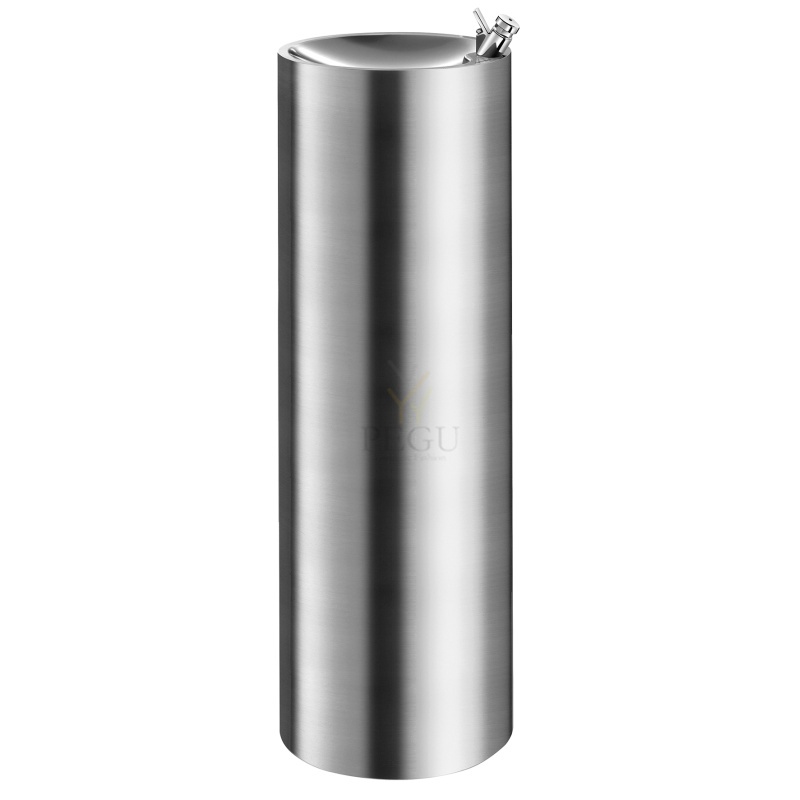

Delabie Joogifontöön ILHA H-915mm R-V teras

Floor-standing ILHA drinking fountain

Ref. 180100

Floor-standing drinking fountain.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 0.8mm.
Height: 915mm.
Supplied with bubbler tap: chrome-plated, instant shut-offand adjustable flow rate, inlet M⅜".
Flat perforated waste, without screws:easy to clean and vandal-resistant.
Recessed vertical water outlet. Waste outlet 1¼".
Supplied with fixing elements.
Weight: 9.6kg.

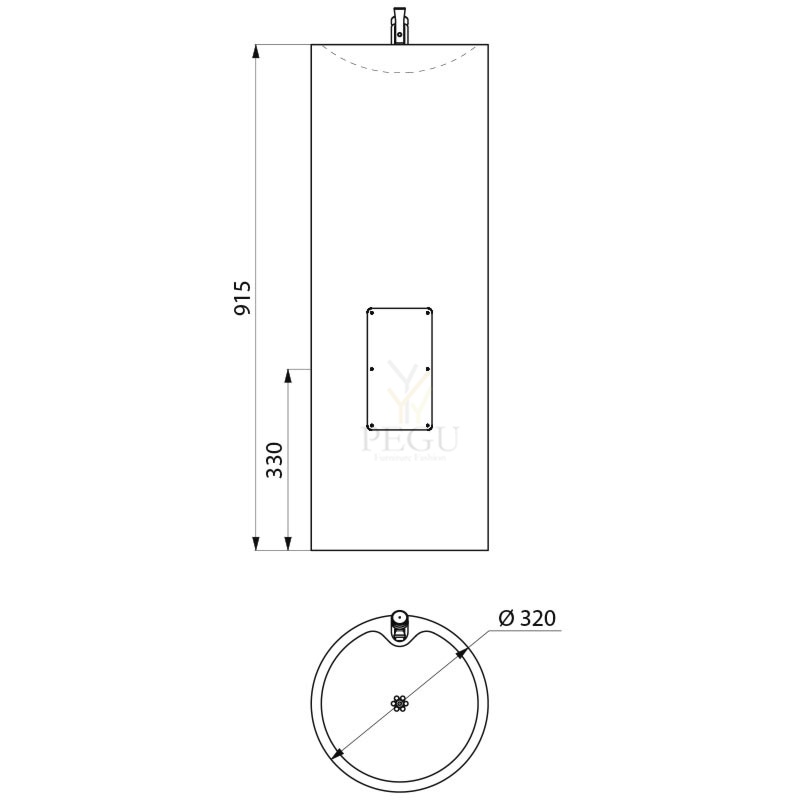

TECHNICAL CHARACTERISTICS

Floor-standing ILHA drinking fountain

Ref. 180100
Height 915mm
Length 320mm
Width 320mm
Thickness 0.8mm
Finish 304 polished satin stainless steel
Sarnased tooted

Dušikomplekt SPORT isesulguv temperatuuri regulaatoriga KSA32/36 15sek

Dushikomplekt

kroom

15 sek töötsükkel

Segistiga+toru+otsik

Tootekood: IDR-KSA32/36 15 sek ,   Tarneaeg: 7-21 päeva
549,00 € (10%)
610,00 €

Dušikomplekt segisti Presto ALPA 35812 isesulguv, 30 sek 3bar, kroom

Ideaalne lahendus spordiklubisse, tootmisse, jõusaali

Vajutava nupuga dušši segisti

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar

Presto ALPA 35812 isesulguv dušikomplekt on täiuslik valik nii avalikesse ruumidesse kui ka spordiklubidesse. Kvaliteetne kroomitud segisti on varustatud 6 l/min voolupiirajaga, mis tagab vee kokkuhoiu ilma mugavust vähendamata. Segisti isesulguv mehhanism lõpetab vee voolu automaatselt 30 sekundi jooksul.

Ohutuse tagab reguleeritav temperatuurilimiiter, mis hoiab ära kuumaveepõletused. Komplektis on ka reguleeritava võrega dušiotsik, toru ja kinnitusklamber. Vastupidav konstruktsioon ja termilise šoki taluvus kuni 75°C muudavad selle ideaalseks igapäevaseks kasutamiseks.



Tootekood: P35812 ,   Tarneaeg: 7-14 päev
607,05 € (5%)
639,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 15 seconds - lever upwards or downwards

> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Delivered with: 2 PEX hoses with swivel nut and NF check valves 1 base gasket 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 Fixing bracket > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Tootekood: P68050 ,   Tarneaeg: 7-14 päeva
328,70 € (5%)
346,00 €

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bar - 4 position-setting Anti water-hammer system

> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards

> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Installation: Cross-partition Wall thickness: 0 to 50 mm

> Delivered with: 2 PEX hoses with swivel nut and NF check valves 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 clamping nut > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Tootekood: P68056 ,   Tarneaeg: 7-14 päeva
361,95 € (5%)
381,00 €
