Delabie antivandaalne valamu COMMISSARIAT roostevaba teras satiin 160330

Tootekood: DE-160330
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 1014,00 €
912,60 €
Kuumakse alates: 77,57 €
Kogus: - +

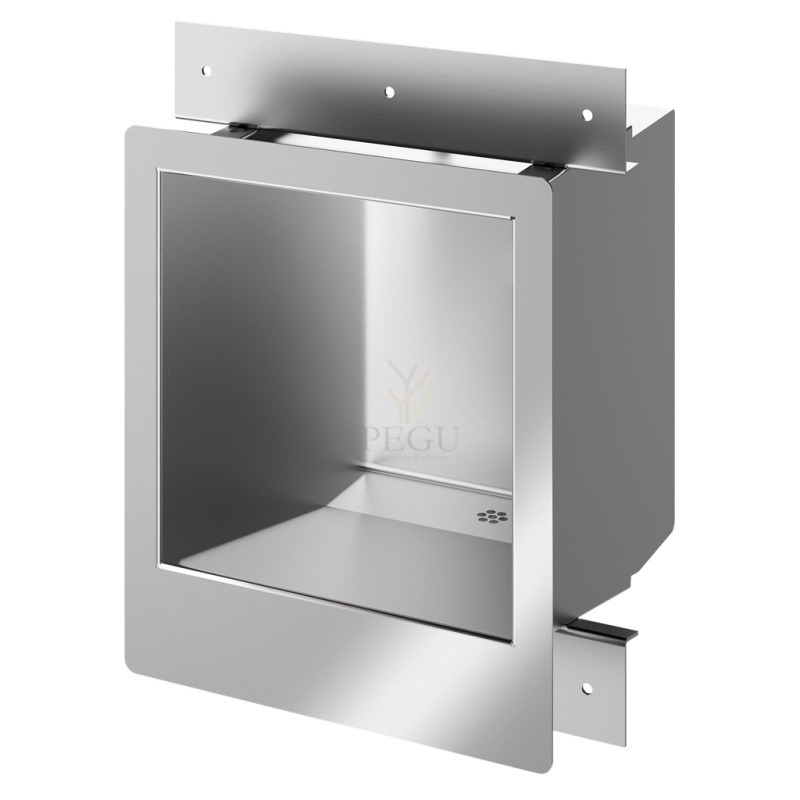

Delabie antivandaalne valamu COMMISSARIAT roostevaba teras satiin 160330

COMMISSARIAT stainless steel washbasin for recessed installation
Ref. 160330

Wall-mounted washbasin, cross wall installation for service ducts.
Interior basin dimensions: 290 x 290 x 350mm.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 2mm.
Rounded edges prevent injury.
Suitable for prisons, police stations, etc.
Vandal-resistant: water inlet and outlet cannot be accessed by user.
Supplied without water controls. We recommend electronic control: ref. 447100.
Weight: 12.5kg.

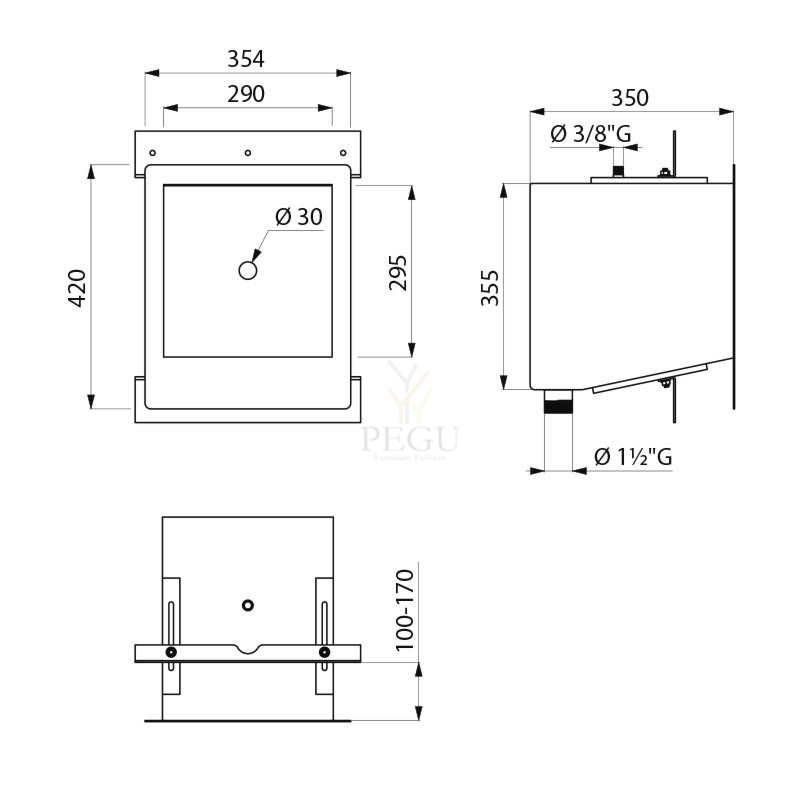

TECHNICAL FEATURES

COMMISSARIAT stainless steel washbasin for recessed installation
Ref. 160330

Depth 350mm
Length 290mm
Width 290mm
Thickness 2mm
Finish Polished satin 304 stainless steel

Failid

Sarnased tooted

Antivandaalne valamu + seebidosaator + termostaat + kätekuivati AZP Brno UM 026.TV INV

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply: 230 V, 50 Hz
IP protection: IP 55
Dimensions (visible from outside): 800 x 800 x 363 mm
Required thickness of wall: min. 100 mm
Outlet: d = 40 mm

Requirements for setting up the construction
  1. Opening in the wal 740 x 740 mm
  2. Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz
  3. Prepared water outlet according to technical scheme


Complete delivery
  • Stainless-steel washbasin with handles
  • Electronic hand dryer
  • Electronic soap dispenser
  • Electronic water tap
  • Through-wall frame with bolts
  • Waste with a stink trap
  • 230V / 12V source for the electronics

Tootekood: AZP-AUM 026.TV INV ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
4370,49 €

Delabie valamu AQUEDUTO 700x440 segistiavaga d35mm  roostevaba teras satiin 121150

AQUEDUTO wall-mounted washbasin
Ref. 121150

Wall-mounted washbasin, 700x440mm
Simple and timeless design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Rounded edges prevent injury.
With Ø 35mm central tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg.

Tootekood: DE-121150 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
1206,00 € (10%)
1340,00 €

Delabie valamu BOB roostevaba teras satiin 120130

Wall-mounted BOB washbasin
Ref. 120130

Wall-mounted washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
With no tap hole.
Supplied with 1 ¼" waste and trap.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Tootekood: DE-120130 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
653,40 € (10%)
726,00 €

Delabie valamu BOB segistiavaga d35mm roostevaba teras satiin 121130

Wall-mounted BOB washbasin
Ref. 121130

Wall-mounted washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Supplied with 1 ¼" waste and trap.
With tap hole Ø 35mm on right side.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Tootekood: DE-121130 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
653,40 € (10%)
726,00 €

Delabie valamu PMR XS 400x390 roostevaba teras satiin 120400

Wall-mounted PMR XS washbasin
Ref. 120400

Wall-mounted washbasin suitable for people with reduced mobility:shallow basin for easy wheelchair access.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 1/4" waste.
With no overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3.9kg.

Tootekood: DE-120400 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
445,50 € (10%)
495,00 €
