Delabie valamu REDO valamu D375mm roostevaba teras satiin 120710
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva

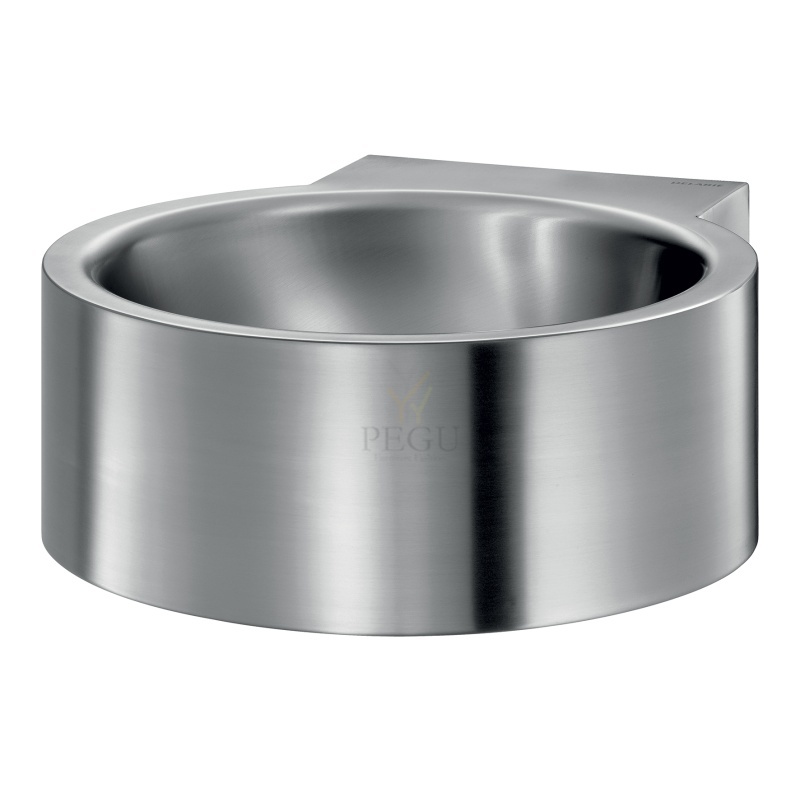

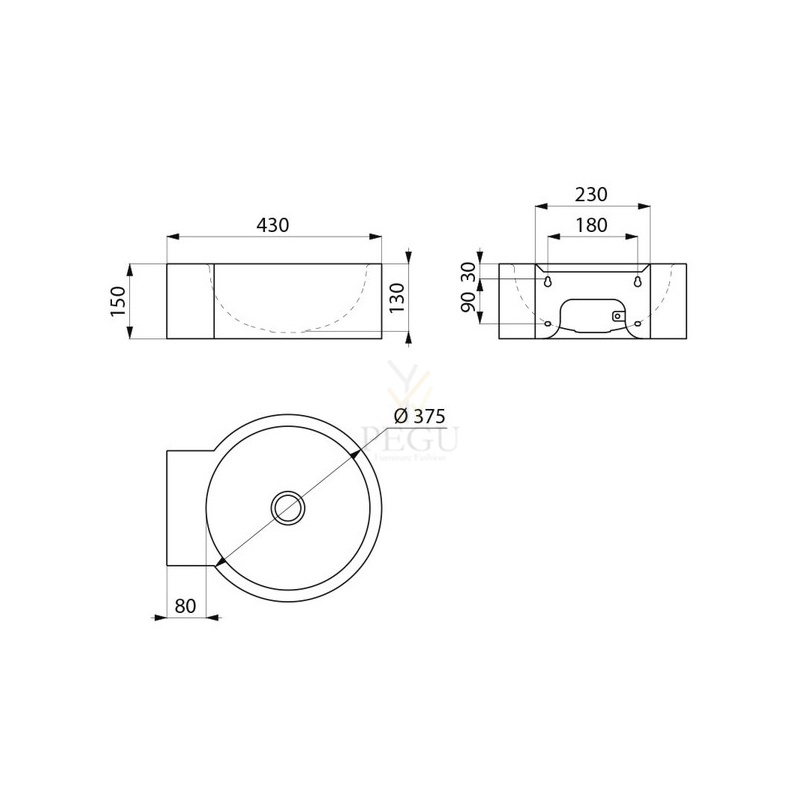

Delabie valamu REDO valamu D375mm roostevaba teras satiin 120710
REDO wall-mounted washbasin
Ref. 120710
Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
Failid
Intra ICON valamu IC1 harjatud, alt paigaldamiseks
General
| Size (mm): | 525 x 334 x 97 |
| Large bowl (mm): | 500 x 310 x 83 |
| Designer: | Halvor Thorsen |
Description
Icon hand wash basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste. Without overflow.
Brushed finish.
Pissuaari mehhanism infra-red paigalduse karbiga, adaptoriga 230V/AC Sanela SLP02NZ
SLP 02NZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
| Order number | 42023 |
| Code | SLP 02NZ |
Supply specification
Technical information
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Joogifontään seinale sensoriga R/V teras AISI316(basseinid) 12V/50Hz
AZP Brno AFO01.YCL
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
Kranikaussi komplekt TEMPOSTOP 1-200mm
Delabie 741943
TECHNICAL FEATURES
TEMPOSTOP time flow tap
Ref. 741943
| Connector | M1/2" |
|---|---|
| Technology | Time flow |
| Length | 200mm |
| Spout length | 75mm |
| Flow rate | 3 lpm |
TEMPOSTOP time flow tap
Ref. 741943
Cross wall time flow tap with swivel spout :
Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M1/2".
Control ≤ 200mm and spout ≤ 230mm cut-size.
Anti-rotating pin and back-nut. AB anti-blocking system.
AB anti-blocking system: water will flow only when the push-button is
Delabie valamu pool uputatud QUADRA 380x380, R/V teras AISI304 120650
Semi-recessed QUADRA washbasin
Ref. 120650
Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
TECHNICAL FEATURES
Semi-recessed QUADRA washbasin
Ref. 120650
| Height | 130mm |
|---|---|
| Length | 380mm |
| Width | 380mm |
| Thickness | 1.2mm |
| Finish | Polished satin 304 stainless steel |
