Dušipaneel Delabie SECURITHERM termostaadiga isesulguv 30 sek ALU

Tootekood: DE-792305
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
850,00 €
Kogus: - +
   - või -

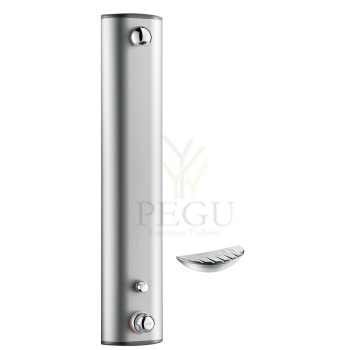

SECURITHERM shower panel
Ref. 792305

Thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mouted, exposed installation.
With top inlet via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
With soap dish.
Concealed fixings.
Filters and non-return valves.

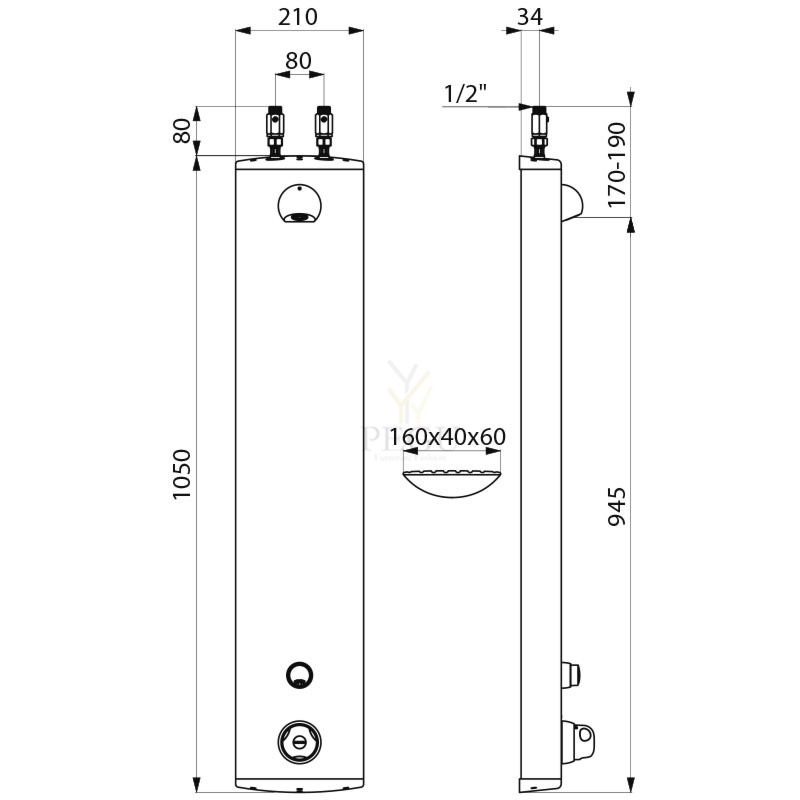

TECHNICAL FEATURES

SECURITHERM shower panel
Ref. 792305

Connector M1/2"
Technology Time flow
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Aluminium
Sarnased tooted
Tootekood: P29003 ,   Tarneaeg: 7-14 päeva
126,00 € (10%)
140,00 €

Characteristics

  • economical aerator, rate of flow 6 l/min
  • function of automatic water stop after 5 minutes of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 45 is destined for cold or premixed water under the washbasin
  • START/STOP program
Tootekood: SA-SLU 45, 24V DC ,   Tarneaeg: 14 päeva
422,00 €



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
254,00 €

> Working pressure : 1 to 5 bar

> Flow : 3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design

> Hydraulic supply : G 3/8" (12x17) - Cold or premixed water > Power supply : Integrated 6V CRP2 lithium battery

> Material and colour finish : Injected molded metal body and cover Body: Chrome finishing Top cover: Black Chrome finishing

> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security : Anti-overflow security time: 30 seconds Anti-blocking system preventing the water to flow continuously

> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 1 Hose with revolving nut 1 Stop valve MM G 3/8" (12x17) 1 Filter gasket 1 Self-adhesive sticker Instruction manual > Standards & approvals : Brass body in accordance with NF EN1982, EN12164, NF EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227

Tootekood: P55393 ,   Tarneaeg: 14-21 päeva
383,00 €

> Working pressure :

1 to 5 bar

> Flow :

1.9 l/min with integrated flow limiter sprayer High quality anti-limescale aerator Anti-water-hammering device

> Hydraulic supply :

G 3/8" (12x17)

> Power supply :

Integrated 6V CRP2 lithium battery in a waterproof case, located inside the tap body.

> Material and colour finish :

Injected molded metal body Chrome plated cover

> Thermal resistance :

Resistant to a temperature of 75°C for 30 minute thermal shocks

> Security :

Maximal limited temperature by ajustable temperature limitor device
The solenoid valve will be closed automatically in case of over flow (>30 seconds), low battery or any damage of detector Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with :

1 Brass clamping nut
1 Gasket and 1 Washer
2 PEX Hoses with revolving nuts and NF check valves 2 Filter gaskets
1 Self-adhesive sticker
Instruction manual

> Standards & approvals :

Brass in accordance with EN1982, EN12164, EN12165
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P55385 ,   Tarneaeg: 14-21 päeva
434,00 €
