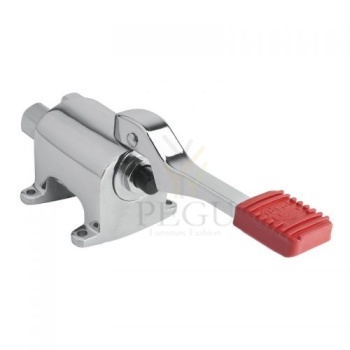

Idral Pedaal segisti progressiivne, põranda
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
✅ PEGU.ee-s valime ainult seda, mida on meeldiv omada kodus.
Nutikad lahendused, kaunis disain ja tõestatud kvaliteet.
Kui valid meie juurest, valid kindlustunde.
Floor mounted single pedal progressive mixer
Opening of the water and progressive mixing by single movement
Cast brass body
Anti-limescale and self-lubricant material valve
Progressive stop without water hammer
Fastenings included
Failid
Dušisesisti isesulguv 30sek 1/2"
Segisti, isesulguv
kroom
30sek töötsükkel
> Working pressure: 1 to 5 bar
> Flow: 1.9 l/min with flow regulator Anti water-hammer system
> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards
> Hydraulic supply: G 1/2'' x 40
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With S® antiblocking system to prevent blocking in continuous flow
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Delivered with: 1 Filter gasket 1 base gasket 1 fixture nut + 1 stainless steel washer 1 Nut for 12x14 tube 1 rubber flat gasket 1 coloured sticker
> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
Bideedush vooliku ja hoidikuga, Valge
EASY series white plastic shower, without tap
Wall support included
Flow limiter 4 l/min
Presto isesulguv valamukraan pika käepidemega kroom 15sek
> Working pressure :
1 to 5 bar
> Flow :
3 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time :
15 seconds (± 5 sec.)
> Operation:
Simple press on the lever to activate the water flow
> Hydraulic supply :
M G 1/2" (15x21) - Cold or premixed water
> Thermal resistance :
Resistant to a temperature of 75°C for 30 minute thermal shock
> Security :
Non-removable, wear-proof red or blue marker
> Delivered with :
1 Nut for 12x14 tube
1 Filter gasket
1 Stainless steel plain washer
1 Brass clamping nut
1 Nitrile plain washer
2 Non-removable, wear-proof coloured marker Instruction manual
> Standards & approvals :
Acoustic class II
Brass body in accordance with EN 1982, EN 12164, EN 12165
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Seinapelne termostaatsegisti inva käepide, isesulguv 900 series
900 series wall mounted thermostatic progressive shower mixer with clinic lever
Clinic lever for easy control
TMV3 thermostatic progressive cartridge
Maximum temperature preset at 38°C, adjustable
Check valves with 9l/min flow limiter
OPERATING CHARACTERISTICS Operating pressure:
Hot water inlet temperature: Cold water inlet temperature:
Minimum differential temperature (hot-mixed):
Outlet water temperature range: Setting tollerance:
Maximum temperature (factory setting):
