Aasia WC, R/V teras AISI 304
| Width | 11 13/16 Inches |
| Depth | 6 Inches |
| Height | 24 1/16 Inches |
| Opening Width | 10 Inches |
| Opening Depth | 6 Inches |
| Opening Height | 9 7/8 Inches |
| Amps | 4 - 4.4 Amps |
| Hertz | 50 - 60 |
| Phase | 1 |
| Voltage | 208 - 240 Volts |
| Wattage | 1,000 Watts |
| ADA Compliant | Yes |
| Drying Time | 17 Seconds |
| Finish | Stainless Steel |
| Hands Free | Yes |
| Installation Type | Built-In |
| RPM | 8,000 |
| Style | Heated |
Contemporary design, ADA compliant recessed hand dryer. 6” deep drying alcove with a curved back and a ceramic water absorbent surface to capture and evaporate water. Type 304 satin-finish, stainless steel. Dryer delivers a 17-second dry time at a mere 70dBA and a sustainable power rating of 1.0kW
115V AC, 8.5 Amp., 50/60 Hz, 1000 Watts, Single Phase, cULus Listed.
208-240V AC, 4.0-4.4 Amp, 50/60 Hz, 1000 Watts, Single Phase, cULus Listed and CE marked.
Akna hüdroometer
Tsink
CE marked on the basis of product tests performed acc. to EN 12221-1 + A1.
Strong material with rounded edges for optimal safety.
Ideal for toilets with limited wall space.
Torsion springs makes it easy to open and close the baby changing station.
Available in black and white as standard, but can be ordered in any RAL colour.
Moreover, the serie consists of matching Björk hand dryers and Björk soap dispensers.
2-year warranty.
| SPECIFICATIONS | |
|---|---|

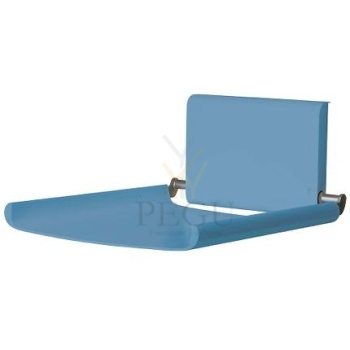

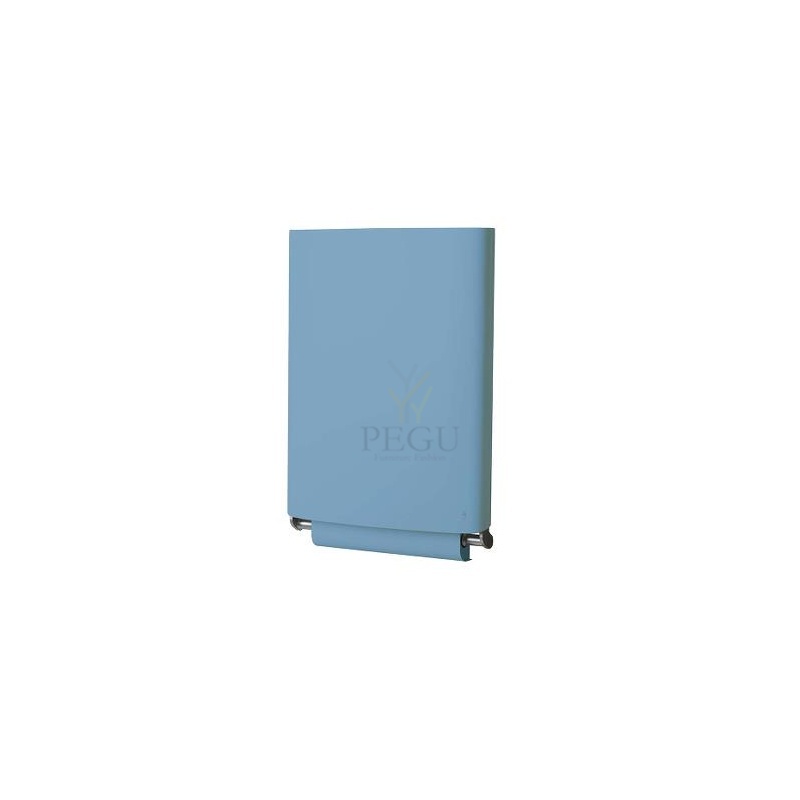

| Product number: | 3210 / EAN no. 5-709818-032108 |
| Technical data: | Wall mounted baby changing station. Optional RAL colour. Carrying capacity max. 80 kg. |
| Dimensions | Closed: H: 771 mm , W: 552 mm, D:100 mm / Open: H: 304 mm, D: 751 mm / Changing surface: L: 700 mm, W: 510 mm |
| Net Weight: | 17 kg |
• Winner of a Red Dot Design Award!
• Drying cycle of only 10-15 seconds.
• Powerful commutator motor with carbon brushes.
• Comes in trendy matt black and classic white as standard.
• Also available in all RAL colours and coated with different prints.
• Top plate in 6 optional standard designs.
• LED light indicates when machine is in use.
• Adjustable sensor range, motor speed and heating setting.
• 5-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3006 / EAN no. 5-709818-030067 |
| Technical data: |
Touch-free hand dryer with matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Infra-red sensor and elektronic timer. Drying cycle: 10-15 sec. IPX1, 230 V, 50/60 Hz, 1600 W, Class I (earthed). 76 dBA.
|
| Dimensions | H: 330 mm, W: 205 mm, D: 183 mm |
| Net Weight: | 6.5 kg |
CE marked on the basis of product tests performed acc. to EN 12221-1 + A1
Strong material with rounded edges for optimal safety.
Ideal for toilets with limited wall space.
Torsion springs makes it easy to open and close the baby changing station.
Available in black and white as standard, but can be ordered in any RAL colour.
Moreover, the serie consists of matching Björk hand dryers and Björk soap dispensers.
2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3200 / EAN no. 5-709818-032009 |
| Technical data: | Wall mounted baby changing station. RAL-colour: 9003, gloss 75. Carrying capacity max. 80 kg. |
| Dimensions | Closed: H:771 mm , W: 552 mm, D:100 mm / Open: H: 304 mm, D: 751 mm / Changing surface: L: 700 mm, W: 510 mm |
| Net Weight: | 17 kg |
• Winner of a Red Dot Design Award!
• Holds approx. 9,5 dl liquid soap (= 800-950 doses).
• Battery-operated. Connection to power supply via a transformer.
• An intelligent sensor automatically sets the best sensor range.
• LED light indicates when dispenser is in use.
• Comes in trendy matt black and classic white as standard.
• Also available in all RAL colours and coated with different prints.
• Top plate in 6 optional standard designs.
• 2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3050 / EAN no. 5-709818-030500 |
| Technical data: |
Touch-free soap dispenser for liquid soap/disinfectant. White-painted steel housing (RAL 9003, gloss 60). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
|
| Dimensions | H: 330 mm, W: 139 mm, D: 127 mm |
| Net Weight: | 2.3 kg |
• Winner of a Red Dot Design Award!
• Holds approx. 9,5 dl liquid soap (= 800-950 doses).
• Battery-operated. Connection to power supply via a transformer.
• An intelligent sensor automatically sets the best sensor range.
• LED light indicates when dispenser is in use.
• Available in all RAL colours.
• Comes in trendy matt black and classic white as standard.
• Also available coated with different prints.
• Top plate in 6 optional standard designs.
• 2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3052 / EAN no. 5-709818-030524 |
| Technical data: |
Touch-free soap dispenser for liquid soap/disinfectant. Steel housing painted in optional RAL colour. Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
|
| Dimensions | H: 330 mm, W: 139 mm, D: 127 mm |
| Net Weight: | 2.3 kg |
