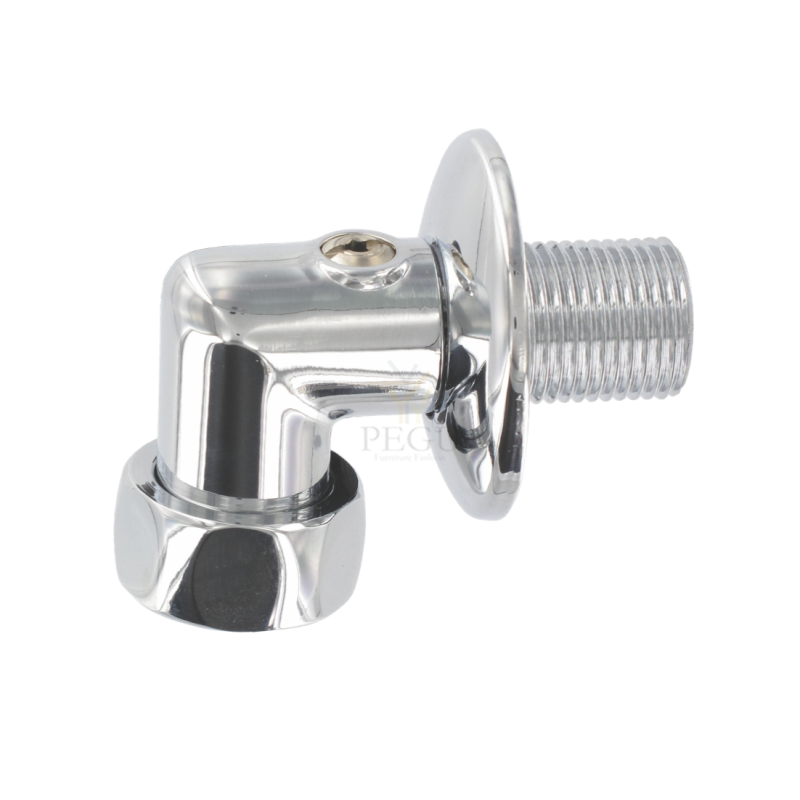

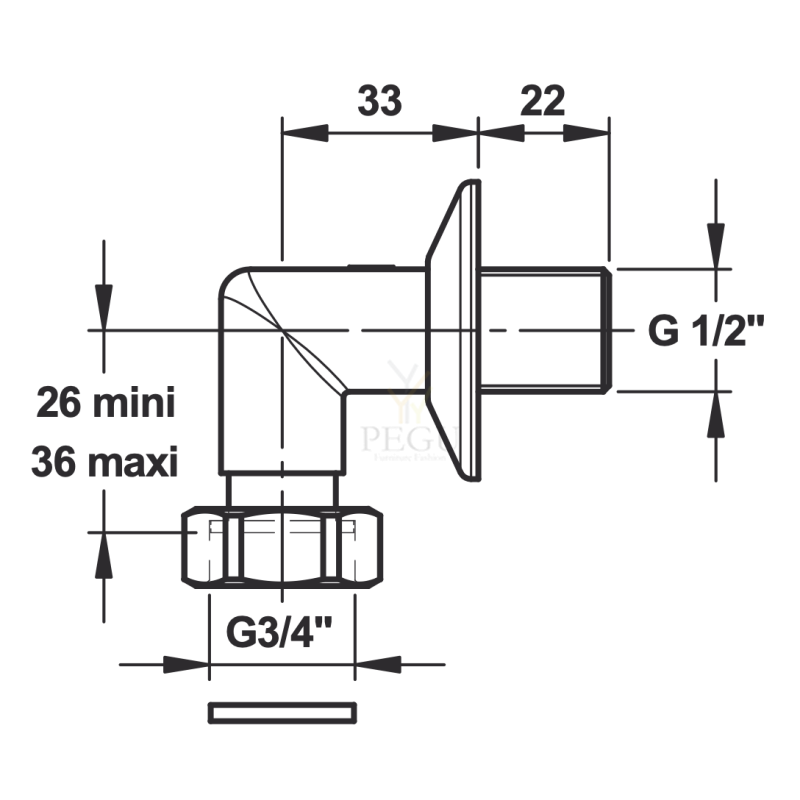

Nurgakraan SK 3/4" -VK 1/2" kroom
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Nurgakraan SK 3/4" -VK 1/2" kroom
TECHNICAL FEATURES
LISO urinal divider for wall-mounting
Ref. 100590
| Height | 700mm |
|---|---|
| Length | 25/50mm |
| Width | 350mm |
| Thickness | 1.5mm |
| Finish | 304 polished satin stainless steel |
Kausi paksus 0-37 mm, 1 1/2"
SLP 82RZ
Urinal WCA with radar flushing unit, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
| Code | SLP 82RZ |
| Order number | 01822 |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting
PREMIX SECURITY
Ref. 731055
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".
PREMIX NANO thermostatic mixing valve
Ref. 732016
Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of hot or cold water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Chrome-plated body, inlets F3/8" and outlet M3/8".
