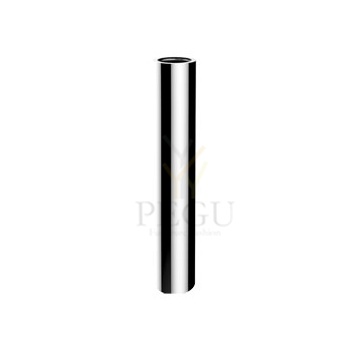

Presto CHEF professionaalne köögisegisti pikendus 300mm P70800/P70802
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Ref: 70836 - Extension
> THE PRODUCT BENEFITS
Easy assembly by screwing
Allows to easily upgrade an already installed tap
> TECHNICAL SPECIFICATIONS > Model:

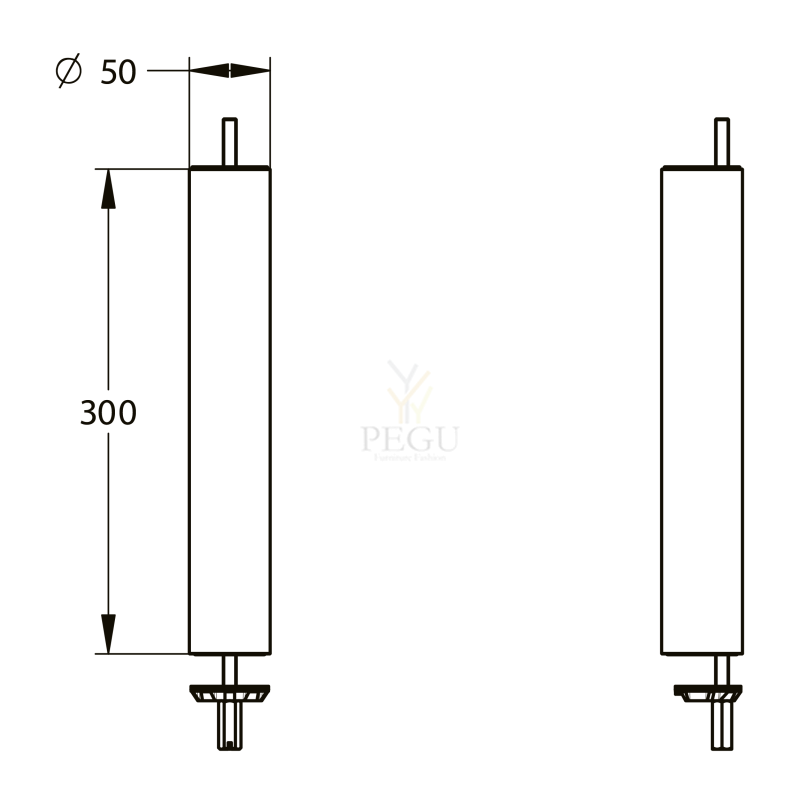

Height of the extension: 300 mm
> Connection:
By screwing
Compatible with references 70800/70802 and all single-hole versions of the PRESTO CHEF range
> Materials :
Chromed brass
Failid
Köögisegisti Damixa Pine kõrge G-tila kroom
VOLA Köögi kangsegisti KV1, Heleroheline RAL6018
Kangsegisti keraamilise töörganiga
Kahes suuna pööratava jooksutoruga.
Toru mõõt: 10 mm
Paigaldusava:30mm, max.35mm
KV6
Hole cut out size: 32 mm.
Pre-rinse set with mixer
Ref. G6632
Complete pre-rinse set with bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- 20 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. G6632
| Connector | F3/8" |
|---|---|
| Height | 1105 - 1225mm |
| Drop height | 90 - 330mm |
| Flow rate | 20 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Pre-rinse set with mixer
Ref. 5626
Complete pre-rinse set without bib tap.
Single hole deck-mounted mixer with slimline control lever.
Supplied with F3/8" flexible hoses and non-return valves.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 5626
| Connector | F3/8" |
|---|---|
| Height | 1105-1225mm |
| Drop height | 340 - 580mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
