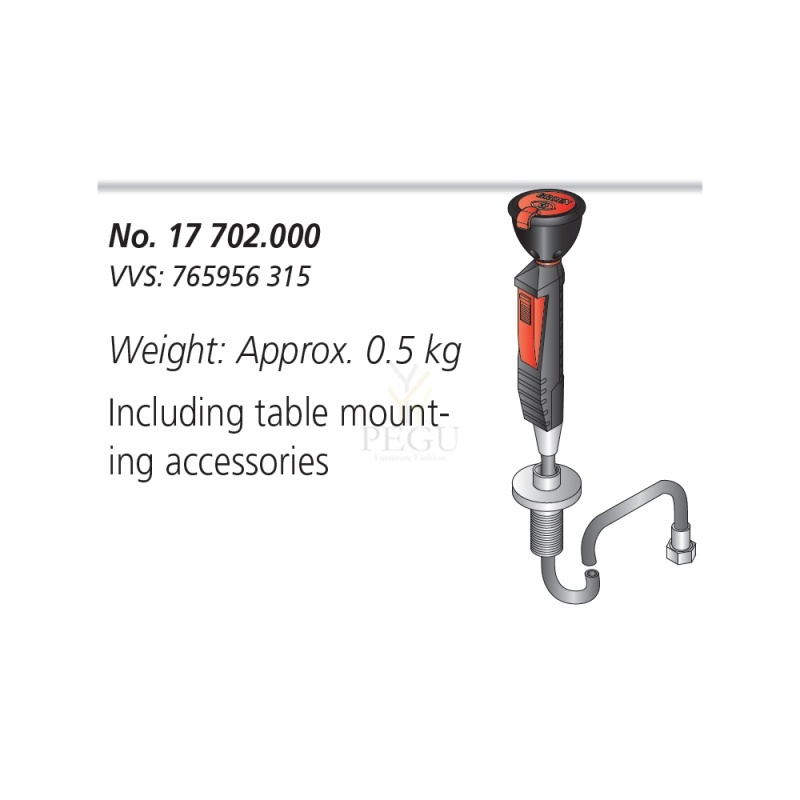

Silmadush läbi pinda kinnitusega Broen Lab 17702000 Zoom

Silmadush läbi pinda kinnitusega Broen Lab 17702000

Tootekood: B-17702000
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
482,79 €
Kuumakse alates: 41,04 €
Kogus: - +

Silmadush läbi pinda kinnitusega Broen Lab 17702000

8 l/min

Sarnased tooted

Külma või eelsegatud vee kraan laboratooriumi F-150MM

Broen Lab 25340011001-52B


S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340011001-52B ,   Tarneaeg: 2-3 nädalad ,   Viimistlus:
254,10 €

Kraan destilleeritud vesi S150mm, recirkulatsioon d25mm WDI

Broen Lab 25330431003


BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Tootekood: B-25330431003 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
608,82 €

Broen Lab Kraan deioniseeritud vesi S150mm, recirkulatsioon d25mm WDC 25330431036


BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Tootekood: B-25330431036 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
604,75 €

SOS Silmadušš hädaabidušš sina sisse uputav, inva disability-Frendly Broen Lab 17152009


SOS Silmadušš hädaabidušš sina sisse uputav, inva disability-Frendly

Ögon/ansiktsdusch med uppsamlingskärl för inbyggnad i vägg
Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon-& ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck.

• Min. arbetstryck: 1,5 bar
• Väggmontage
• POLYCOAT står emot de flesta kemikalier
• FLOWFIX: 14 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 8 kg
• Anslutning: inv. DN15
• Avlopp: 1 1/2"
• Inbyggnaddjup: 90 mm

Kontakta oss för ritning!

Artikel nummer: 17 152 009

Tootekood: B-17152009 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
2631,44 €

Ohutusdušiotsik Delabie 9225, Ø 250 mm, roheline, ABS-plastik 9225

Delabie 9225 on usaldusväärne ja vastupidav ohutusdušiotsik, mis sobib ideaalselt hädaolukorra dušisüsteemide jaoks.
✅ Valmistatud löögikindlast ABS-plastikust
Roheline värv tagab hea nähtavuse
Ø250 mm ümar disain tagab laia ja ühtlase veevoolu
✅ Vooluhulk: 132 l/min 3 bar juures
✅ Veeliitmik: F1"

Tänu tugevale konstruktsioonile ja suurele veevoolule on see ideaalne valik tööstus- ja laborikeskkondadesse, kus on oluline kiire ja efektiivne veega loputus.

Tootekood: DE-9225 ,   Tarneaeg: 3-4 nädala ,   Viimistlus:
106,72 €
