Sisu kraanile Presto MAESTRO G 3/4"
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 7-14 päeva
Müüja: PEGU OÜ
Function

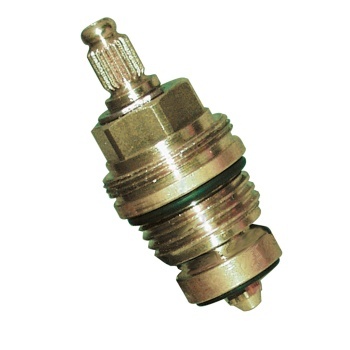

- This 3/4’’ DIN (30x37) DIN valve head can be used to refurbish all professional kitchen tapware in the PRESTO Maestro line Standards and approvals: The PRESTO spare parts contained in this packaging make it possible to maintain the NF and ACS certifications for the finished products they are designed to be used on.
Packaging:
- 1 unit
Material and finish colour
- Nitrile/EPDM elastomer seals
Failid
Pre-rinse set with mixer
Ref. G6633
Complete pre-rinse set without bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. G6633
| Connector | F3/8" |
|---|---|
| Height | 1105 - 1225mm |
| Drop height | 310 - 550mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Twin hole pre-rinse set with mixer
Ref. 5680
Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. 5680
| Connector | M1/2" |
|---|---|
| Height | 1110 - 1230mm |
| Drop height | 345 - 585mm |
| Flow rate | 9 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Ref: 70818 - Column –deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Dimensions:
Maximum fixing height: 632 mm
> Model:
Single-lever mixer with ceramic cartridge
Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Shower flow:
12 L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass
Injected metal hook
Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
NF check valve on the hand shower
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Ref: 70822 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 20L /min at 3 bar
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
Locking hook to avoid musculoskeletal disorder
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-lever mixer with ceramic cartridge with flow rate of 20L / min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black hand shower M 1/2'' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar shower nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
20L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70804 - Wall-mounted mixer tap with 2 holes – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: diameter 22 mm.
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Wall version: facilitates cleaning and promotes optimal hygiene
Product design
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Wall-mounted mixer with spout above
360 ° swivel spout, 250 mm projection, height under spout 226 mm, diameter 22 mm. Spout thickness: 1.5 mm 1/4 turn ceramic head with flow rate 81L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
M1 /2'' M3 /4'' offset fittings supplied with rosettes
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
NF check valves 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
