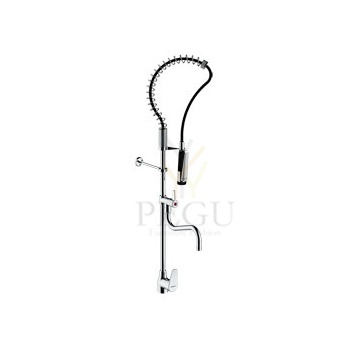

Presto CHEF professionaalne köögisegisti dušiga 1 auk ref.70822
Ref: 70822 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 20L /min at 3 bar
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
Locking hook to avoid musculoskeletal disorder
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes

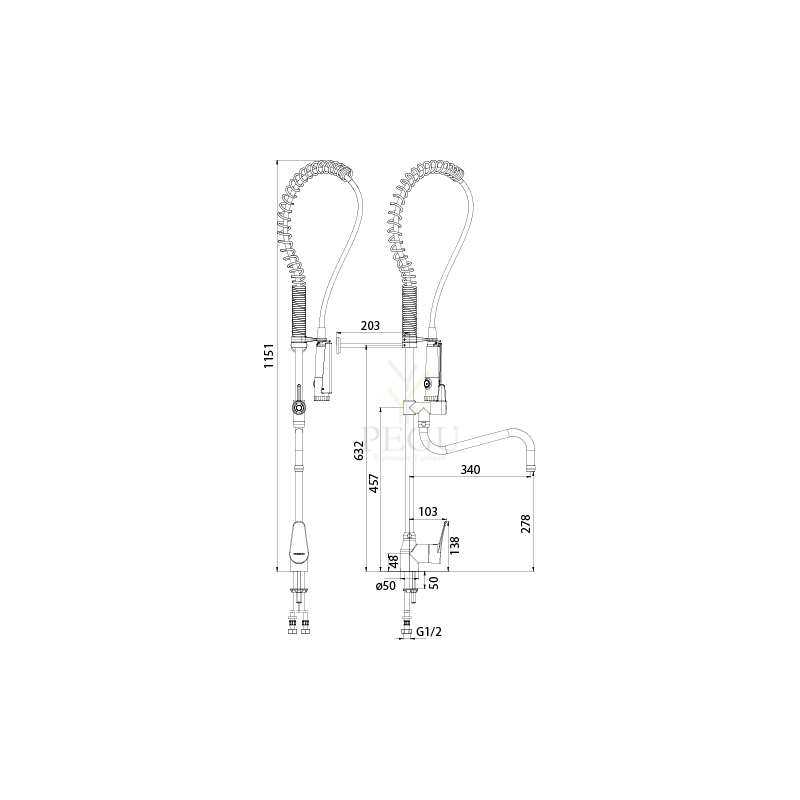

> TECHNICAL SPECIFICATIONS > Model:
Single-lever mixer with ceramic cartridge with flow rate of 20L / min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black hand shower M 1/2'' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar shower nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
20L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Failid
Köögisegisti seinale Damixa Tradition kroom
220,00 €
Mora Izzy Turnie
Fold-down swivel spout for inward-opening windows
Mora Izzy Turnie is a flexible kitchen mixer with a fold-down spout for windows that open inwards. It delivers what other mixers can’t. With the spout folded down, it’s only 9 cm high. What’s more, the spout has a 360° swivel range. That’s what we call harmonious and functional design.
Technical information
- ESS (energy saving system)
- With foldable swivel spout 360°
- Hole diameter Ø28-35mm
816,00 €
Single hole mixer - 100 lpm
Ref. 5610
Deck-mounted single hole mixer H. 315mm L. 300mm with swivelling, tubular spout Ø 22mm.
Star-shaped, brass flow straightener.
Water-free guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 100 lpm at 3 bar suitable for plunge sinks.
Full flow rate within the first 180°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Soldered copper pipe water inlets.
Reinforced fixings.
Single hole mixer - 100 lpm
Ref. 5612
Deck-mounted single hole mixer with extension column for stove tops.
Swivelling, tubular spout Ø 22mm H. 560mm L.300mm.
Star-shaped, brass flow straightener.
Water-free guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 100 lpm at 3 bar.
Full flow rate within the first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings.
Soldered copper pipe water inlets.
Pre-rinse set with mixer
Ref. 5630
Complete pre-rinse set without bib tap.
Deck-mounted single hole mixer with:
- Valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- Reinforced fixing via 2 threaded rods with back-nuts.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 5630
Connector | F3/8" |
---|---|
Height | 1080-1200mm |
Drop height | 315-555mm |
Flow rate | 9 lpm |
Width to the wall | 35-162mm |
Finish | Chrome-plated brass |
