Valamu Fraju sifooni kate, R/V teras

Tootekood: DE-100930
Kaubamärk:
Ühik: tk
Tarneaeg: 1-2 nädalad
Hind: 189,00 €
170,10 €
Kogus: - +
   - või -

TECHNICAL FEATURES

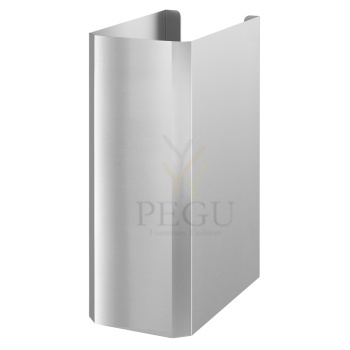

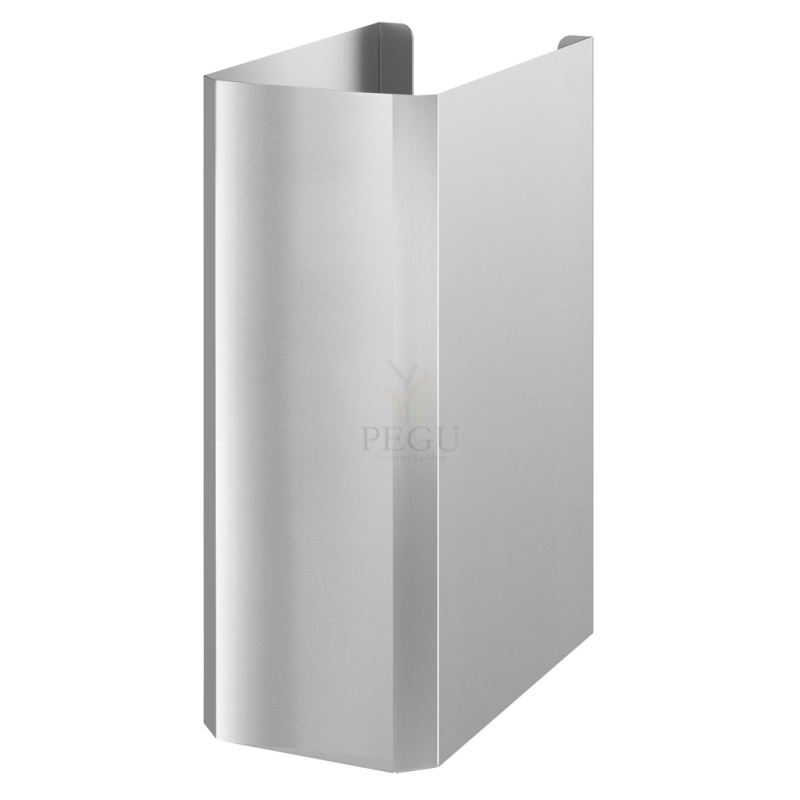

Siphon cover for FRAJU washbasin
Ref. 100930

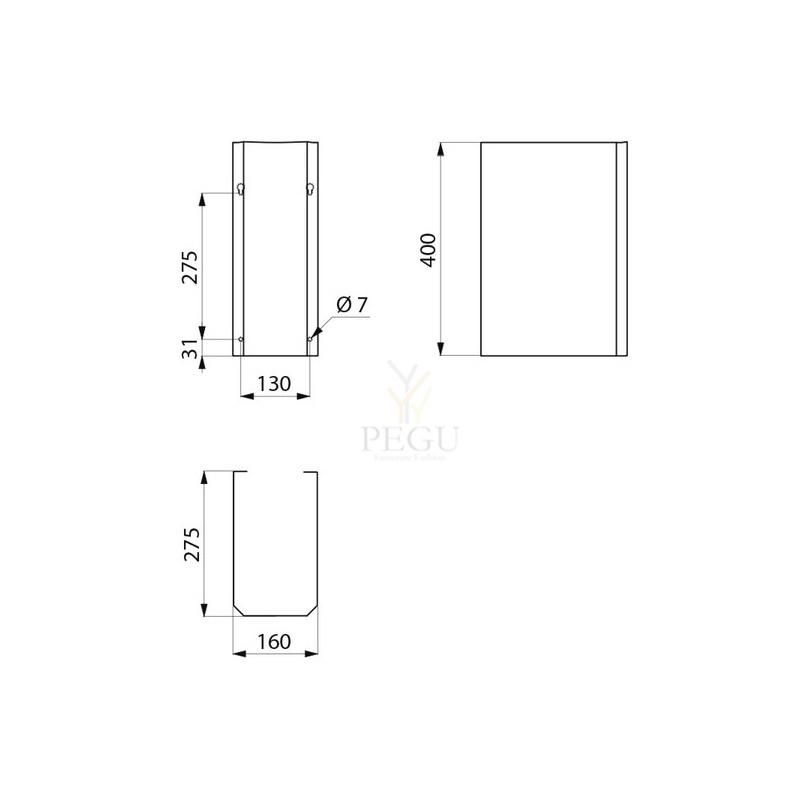

Height 400mm
Length 275mm
Width 160mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Kokku sobivad tooted

FRAJU PMR washbasin
Ref. 120440

Wall-mounted washbasin, 620x505mm.
Suitable model for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5kg.

Tootekood: DE-120440 ,   Tarneaeg: 1-2 nädalad
550,00 €

FRAJU wall-mounted washbasin
Ref. 120430

Wall-mounted washbasin, 540x480mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.65kg.

Tootekood: DE-120430 ,   Tarneaeg: 1-2 nädalad
418,50 € (10%)
465,00 €

FRAJU wall-mounted washbasin
Ref. 121430

Wall-mounted washbasin, 540x480mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
With Ø 35mm central tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.65kg.

Tootekood: DE-121430 ,   Tarneaeg: 1-2 nädalad
418,50 € (10%)
465,00 €
Sarnased tooted
Tootekood: LI9127999 ,   Tarneaeg: 7 päeva
18,24 €
Tootekood: P70575 ,   Tarneaeg: 7 päeva
74,00 €

Pesurenn konsoolidega 1800mm

Tootekood: I-P180V ,   Tarneaeg: 1-4 nädalat
324,00 € (10%)
360,00 €



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
254,00 €

DESCRIPTION

Auto-rewind 304 stainless steel hose reel - Ref. 5675T2

FOR CLEANING FLOORS AND WORK SURFACES

Auto-rewind hose reel with flexible hose L. 15m and guide rollers: Maximum temperature 70°C.
Flow rate 23 lpm at 3 bar.
Maximum pressure 20 bar, 12 bar with trigger-op hand spray. 304 Stainless steel base and drum Ø 390mm.

Order separately: an angled stopcock with integrated vacuum breaker to prevent the back flow of polluted water into the mains supply.

TECHNICAL FEATURES

Auto-rewind 304 stainless steel hose reel
Ref. 5675T2



Connector 3/4"
Height 400mm
Depth 410mm
Length 186mm
Flow rate 14 lpm
Finish 304 Stainless steel

Tootekood: DE-5675T2 ,   Tarneaeg: 14-21 päeva
2445,00 €
