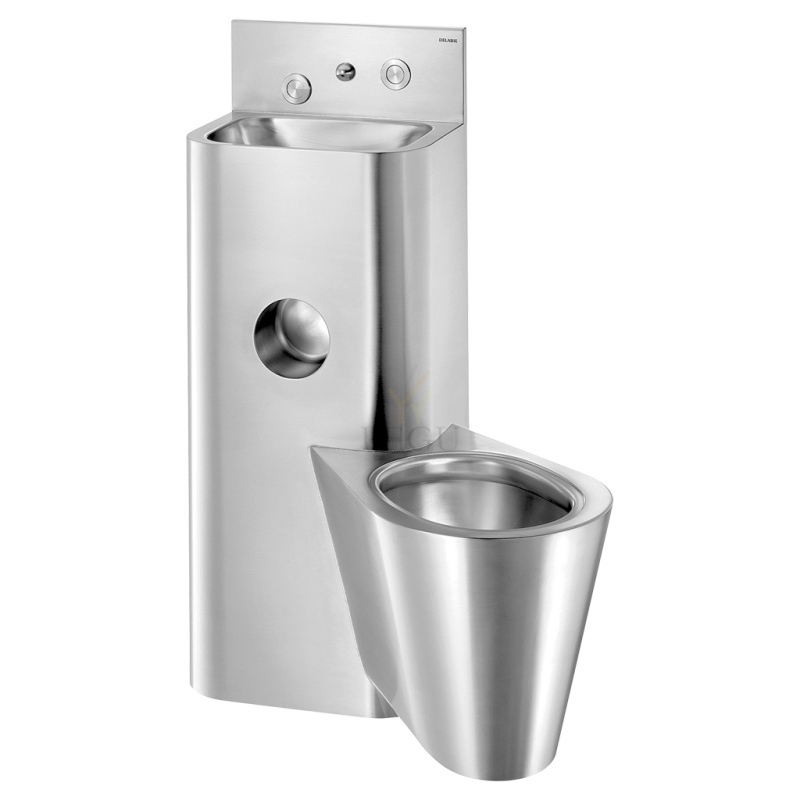

Delabie KOMPACT TC WC+valamu vaskaul põranda antivandaalne R/V teras AISI304

Tootekood: DE-166300
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind:
3611,20 €
Kuumakse alates: 306,95 €
Kogus: - +

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300

Combination unit: washbasin and suspended WC pan on right sidewith recessed toilet roll holder.
Wall-mounted with cross wall installation via a service duct.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlets: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130003]

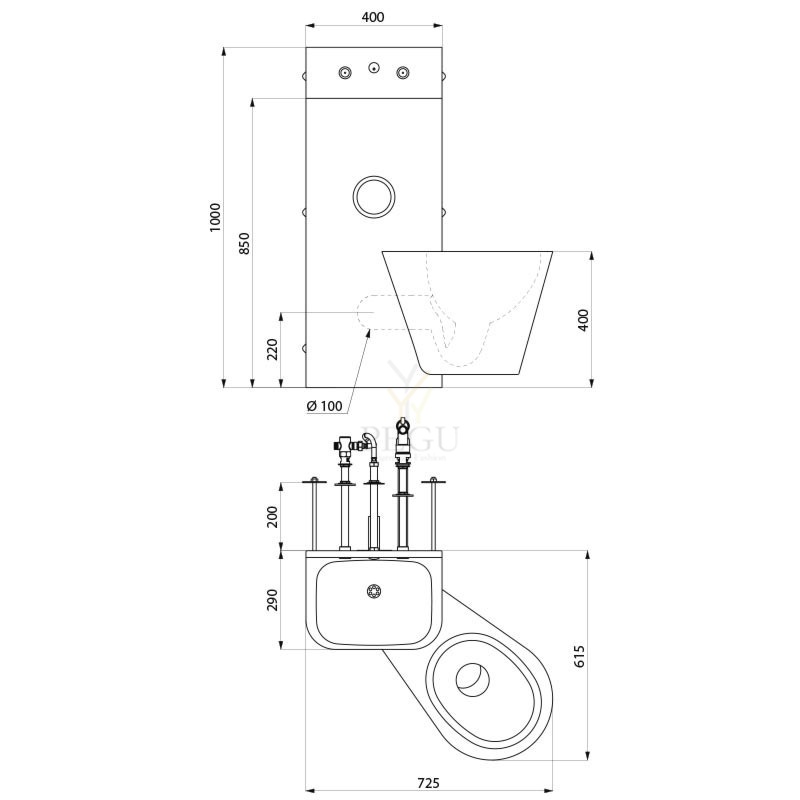

TECHNICAL FEATURES

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166300

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
