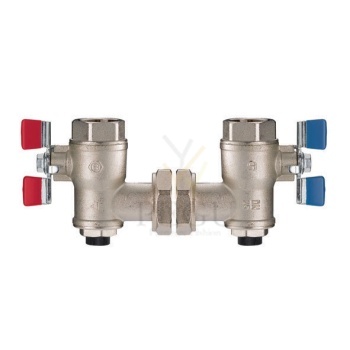

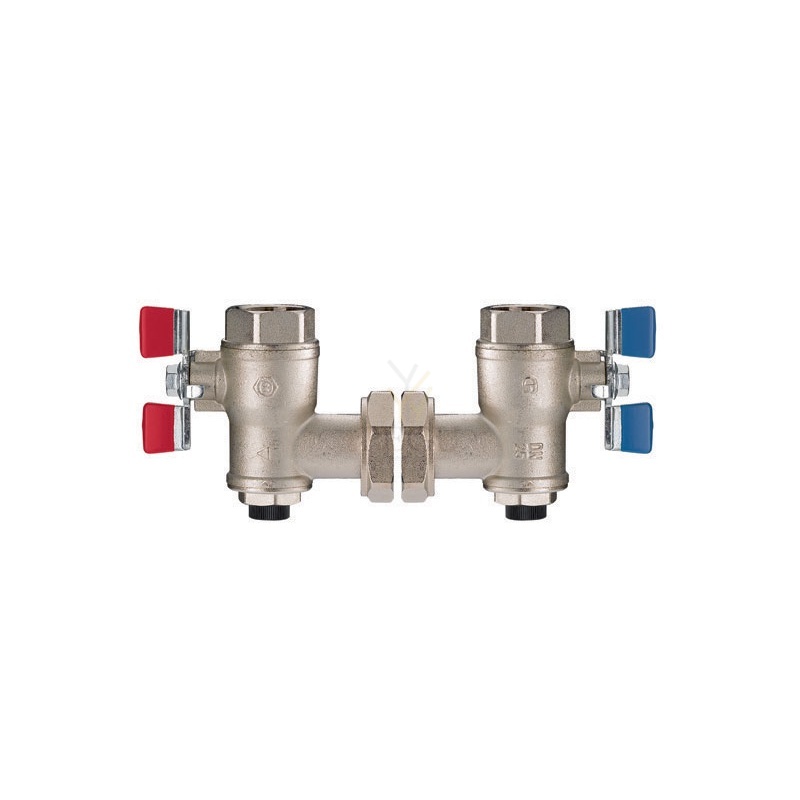

Delabie PREMIX 3/4" termostaadile, 2 x filtriga nurkventiile

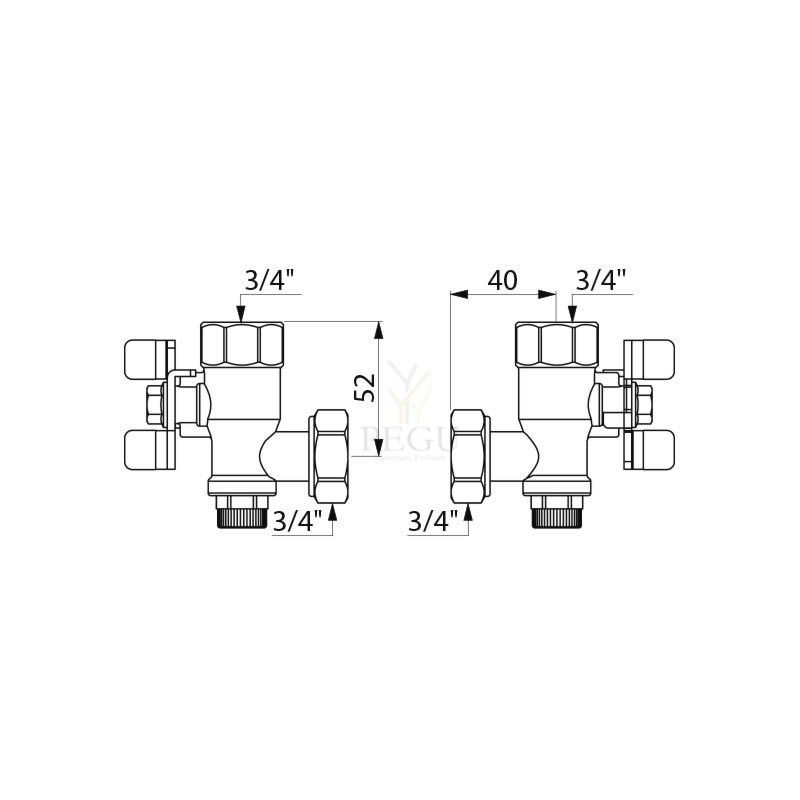

Angled isolating valve
Ball valve with filter and testpoint (to connect pressureand temperature gauges).
Vajutava nupuga dušši segisti
30 sek. töötsükkel 3 bar
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards
> Hydraulic supply: G 1/2'' x 15
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme > Safety: With S® antiblocking system to prevent blocking in continuous flow
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Delivered with: 1 Filter gasket 1 coloured sticker
> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
Ref: 88822 - Shower panel with timed flow PRESTO 50 tapware, with hand-held shower
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Hand-held shower on rail with chrome plated slide
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II with cold water or pre-mixed water
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Non turnable push button Non-removable, wear-proof red marker
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227
Group thermostatic mixing valve for mixed water distribution from 32° - 42°C:
Regulates temperature variations.
Filters and non-return valves can be accessed from the outside without removing the mechanism.
Thermal shock with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure difference at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
