|Water inlet||G 1/2"|
|Water pressure||2 – 6 Bar, recommended 3 Bar|
|Outlet||d = 40 mm|
|Inner dimensions of sink||d = 290 mm|
Delabie seinale kinnituv joogifontään SD R-V teras

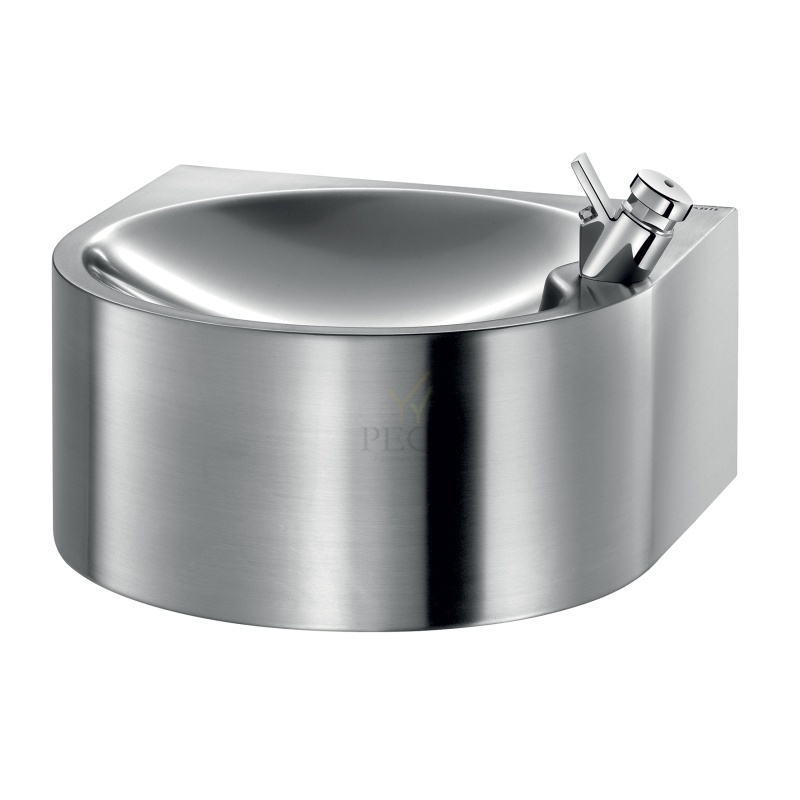

Wall-mounted SD drinking fountain
Wall-mounted drinking fountain.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Supplied with bubbler tap: chrome-plated, instant shut-offand adjustable flow rate, inlet M3/8".
Flat perforated waste, without screws:easy to clean and vandal-resistant.
Recessed horizontal water outlet.
Waste outlet 1¼" trap.
Supplied with fixing elements.Weight: 2.4kg.
Wall-mounted SD drinking fountain
|Finish||304 polished satin stainless steel|
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
Drinking fountain in stainless steel 18/10 for wall mounting. Supplied with supporting bracket, grated waste, wall panel and water bubbler.
Saappaidenpesuallas 7130 on omilla jaloilla seisova allas, joka on suunniteltu käytettäväksi esim. päiväkodeissa kumisaappaiden ja kuravaatteiden huuhteluun sekä teollisuudessa hätäsuihkualtaaksi.
Tuote on kotimainen ruostumattomasta teräksestä valmistettu monikäyttöinen allas. Altaan reunat on pyöristetty turvallisiksi.
Altaan ulkomitat ovat 600x600x350 mm, sisämitat 550x550x250 mm. Allasta valmistetaan myös erikoismitoin.
Altaan mukana toimitetaan pohjaventtiili sekä pohjatulppa helmiketjulla. Altaan jaloissa on säätötassut, joilla se on helppo asentaa suoraan.
AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)
AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl
- stainless steel column and cone with nozzle
- press valve
- anchoring construction
- flexible hose siphon
- connecting hoses
- anchoring material
- Set-up water inlet - pipe G 1/2“
- Set-up drainage d = 40 mm
- Prepared alcove for embedding (concreting) in the base construction
drinking fountain with cooling designed to stand and to be attached to wall
AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
|dimensions||330 x 900 x 365 mm|
|water outlet||d = 40 mm|
|water inlet||G 1/2"|
|water pressure||0,2 – 0,6 MPa, recommended 0,3 MPa|
|power supply||230 V, 50 Hz|
|power input||820 W|
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or electric cable CYKY 3C x 1,5
