17713000.jpeg Zoom

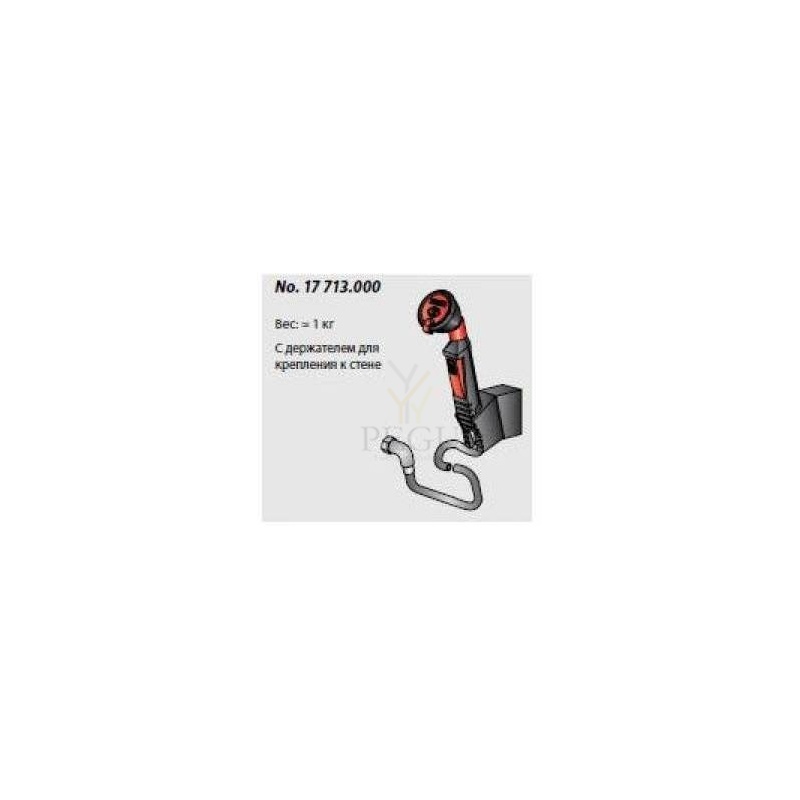

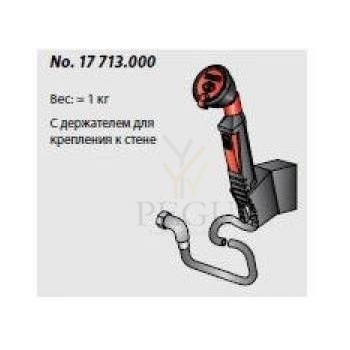

Silmadush Broen , seinakinnitusega

Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
574,26 €
Kuumakse alates: 48,81 €
Kogus: - +
   - või -

8 l/min

Sarnased tooted

Min. working pressure: 1.5 bar for all Eye Showers

Tootekood: B-17744104 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
706,39 €
Silmadele hädaabi dušipost, R/V tras 26l/min

Weight: Approx. 7.5 kg
Eye shower, free standing,
anti-corrosive
Built-in FLOWFIX for
regulation of water fl ow
(26 l/min). Min. working
pressure: 1.5 bar.
Tootekood: B-17961004 ,   Tarneaeg: 14-21 день ,   Viimistlus:
2194,39 €
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
429,93 €
BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Tootekood: B-25330431003 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
608,82 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350441035-52C ,   Tarneaeg: 2-4 nädalad ,   Viimistlus:
813,11 €
