Esileht » Vieser reguleeritav terasraam 51280 197x197 mm RST
Laost otsas

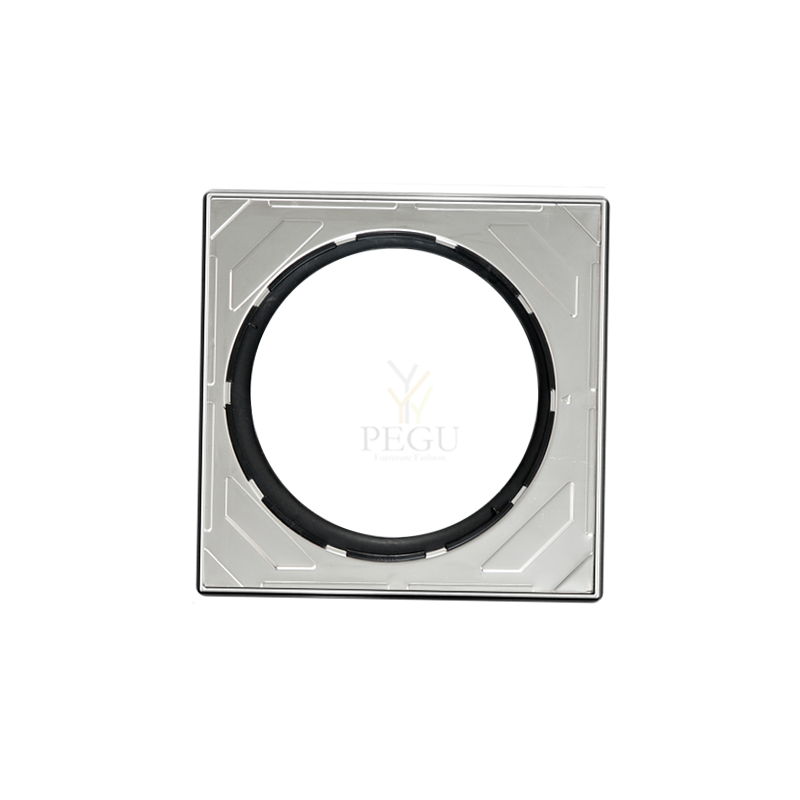

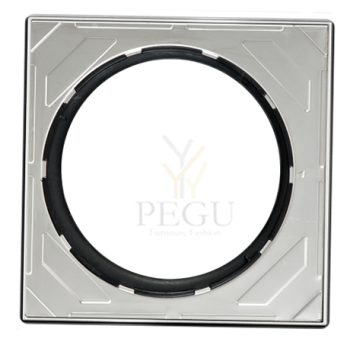

Vieser terasraam 51280_vieser_saadettava_teraskehys_197x197mm.png Zoom

Vieser reguleeritav terasraam 51280 197x197 mm RST

Märkus sisekujundajale ja projekteerijale Projekti spetsifikatsiooni koostamisel palume lisada PEGU ametliku tarnijana.  Vaata tootevalikut PEGU e-poes
Tootekood: AKV51280
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva

✅ PEGU.ee-s valime ainult seda, mida on meeldiv omada kodus.
Nutikad lahendused, kaunis disain ja tõestatud kvaliteet.
Kui valid meie juurest, valid kindlustunde.

Suurepärane valik!

Lisa toode ostukorvi ja vormista tellimus!

Hind:
37,20 €
Kogus: - +

Vieser reguleeritav terasraam 51280 197x197 mm RST

Roostevaba teras

Vieser adjustable stainless steel frame 197 x 197

HVAC No. 3316229

  • Adjustable stainless steel frame 197×197 mm
  • Suitable for use with all Vieser 197×197 mm stainless steel gratings
  • To make tilework installation easier, the frame can be adjusted max 15 mm toeach direction. The complete adjustment range is 30 mm
  • Professional’s choice

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor



Technical specifications

Vieser No.
51280
HVAC No.
3316229
EAN
6418685512802
Package (box/pallet)
15/600
Package dimensions
22,5 x 1,5 x 22 cm
Package weight
0,165 kg
Material
Stainless steel (AISI 304)
Usage
To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.
General information

The package contains an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.


Interested?
Contact us
