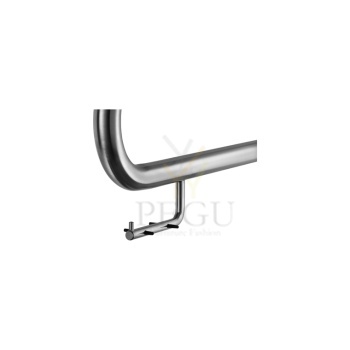

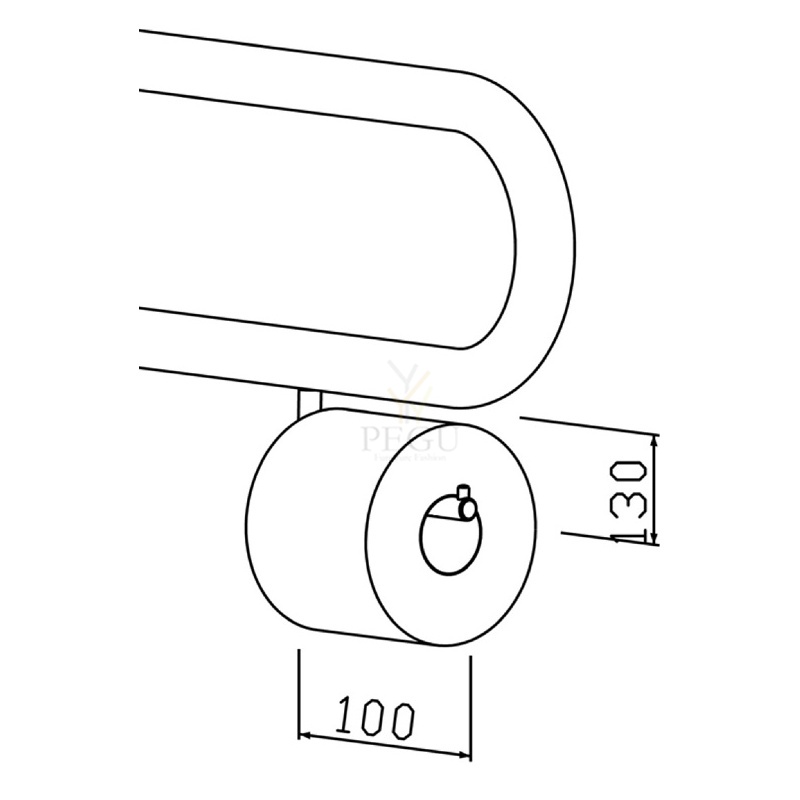

WC paberi hoidel (BF670 käepide jaoks)
Kaubamärk:
Ühik: tk
Tarneaeg: 14 päeva
Failid
The supporting armrest provides assistance to those with limited strength and mobility.
590,00 €
General description
-
Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.
-
With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.
-
Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.
-
Highest durability and rusting resistance.
-
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.
-
These grab bars are supplied with a kit to fix the bar to a brick wall.
Components and materials
-
BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
189,00 €
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
594,00 €
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
Be-Line metallised anthracite cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Metallised anthracite |
141,00 €
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 650 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail, L. 650mm, anthracite
Ref. 511960C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
195,00 €
