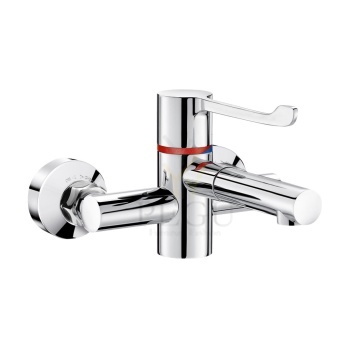

Delabie haigla valamusegisti seinale termostaadiga SECURITHERM BIOCLIP

Tootekood: DE-H9611P
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
652,70 €
Kuumakse alates: 56,08 €
Kogus: - +

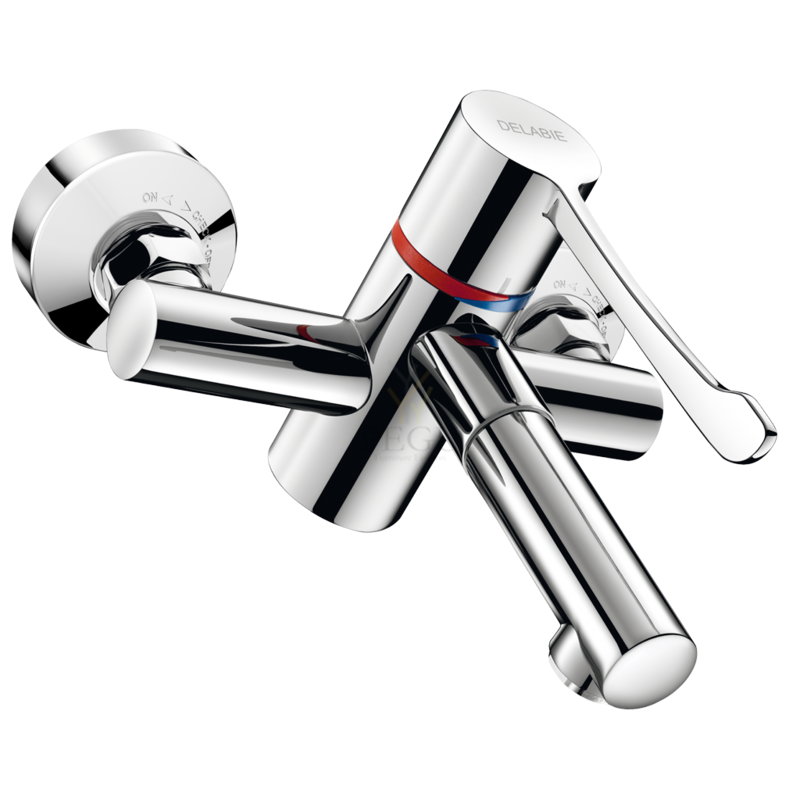

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

Wall-mounted SECURITHERM thermostatic sink mixer.
Sequential: opens and closes with cold water.
Supplied with 2 removable BIOCLIP stainless steel spouts L. 136mm.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Scale-resistant sequential thermostatic cartridge.
Temperature control: cold water up to 40°C. Temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres, supplied with in-line STOP/CHECK connectors ideal for hospitals.
Chrome-plated brass body.

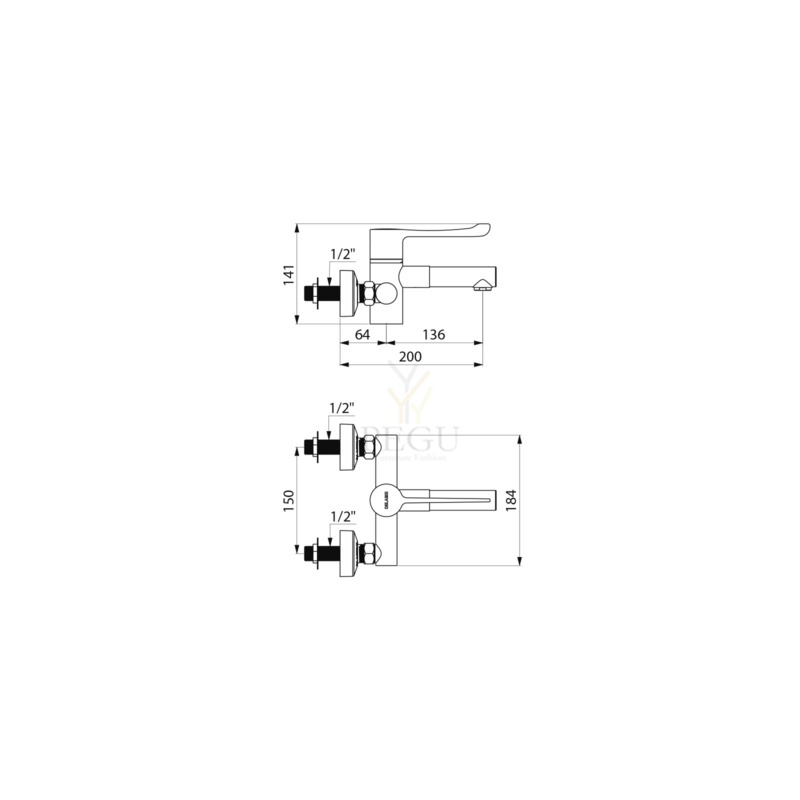

TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P
Connector M1/2"
Technology SECURITHERM BIOCLIP sequential, Securitouch
Height 141mm
Width 184mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter 40°C
Finish Chrome-plated brass
Sarnased tooted
  • Keraamiline tööorgan.
  • Veesäästu funktsioon Eco-Klik.
  • Põhjaklapiga.
  • Pööratav jooksutoru.
  • 120° pöördepiiraja.
Tootekood: D6282100 ,   Tarneaeg: 7 дней
273,48 €
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
Solder: DIN L-Ag55:Sn
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
Tootekood: B-25360131039-52B ,   Tarneaeg: 3-4 päeva
353,80 €
SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black
Net weight: 0.2 kg
Dimensions: Ø73, 1½” BSP (tolerance ± 1mm)
Including adjustable screw on nutø
Tootekood: B-97B0073 ,   Tarneaeg: 2-3 nädalad
18,30 €

Technical information

  • ESS (energy saving system)
  • Ceramic cartridge with soft closing function
  • Adjustable flow control and temperature limiter
  • Eco (energy and water saving constant flow aerator, 5 l/min at 200–600 kPa)
  • Soft PEX® hoses with 3/8" connecting nut (stainless steel braided)
  • Hole diameter Ø34-37 mm
Tootekood: FMO-263001.CA ,   Tarneaeg: 14-21 päeva
591,70 €

SILHOUET

Valamusegisti - Medium


Viimistlus

Must

Seeria

Silhouet

Disainer:

Halskov & Dalsgaard



Tootekood: D7493061 ,   Tarneaeg: 7-14 päeva
324,82 € (10%)
360,92 €
