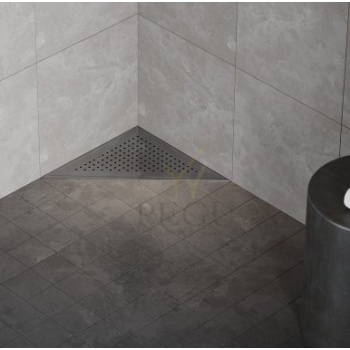

Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST

Tootekood: AKV6005080
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
303,98 €
Kuumakse alates: 25,99 €
Kogus: - +
   - või -

Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST

Roostavaba teras

Vieser Corner Modern triangular floor drain 376 x 376 x 526

HVAC No. 3317311



An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Modern adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • Suitable for both new construction and renovations.
  • To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
  • The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
  • Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system - Tiling example

(DWG)Vieser Corner floor drain system - Tiling example



Technical specifications

Vieser No.
6005080
HVAC No.
3317311
EAN
6430066742790
Package (box/pallet)
12/144
Package dimensions
410 x 410 x 580
Package weight
1,2 kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Installation takes place when the floor is being tiled. The gap between the floor drain and the triangular grating must not be sealed.
General information

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system





Kokku sobivad tooted

Horisontaalne trapp VIESER 50 mm

Vieser low model floor drain DN 50

HVAC No. 3315971


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.



Technical specifications

Vieser No.
52614
HVAC No.
3315971
EAN
6418685526144
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV52614 ,   Tarneaeg: 3-7 päeva
18,30 €

Horisontaalne trapp VIESER 52615 75 mm

Vieser low model floor drain DN 75

HVAC No. 3315972


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.
52615
HVAC No.
3315972
EAN
6418685526151
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,5l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.






Tootekood: AKV52615 ,   Tarneaeg: 3-7 päeva
18,30 €

Vieser One  6004308   Nurgatrapp 75 45° 3x32/40

Vieser One floor drain 45° DN75 3 x 32/40 (without support legs)

HVAC No. 3317303


Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
6004308
HVAC No.
3317303
EAN
6430066742172
Package (box/pallet)
15/120
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,4 l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.





Tootekood: AKV6004308 ,   Tarneaeg: 3-7 päeva
39,65 €

Vieser One  6004309 Nurgatrapp 75 45°

Vieser One floor drain 45° DN75 (without support legs)

HVAC No. 3317304


Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.
6004309
HVAC No.
3317304
EAN
6430066742196
Package (box/pallet)
18/144
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9kg
Material
Polypropylene PP
Usage
The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.
Flow
1,4 l/s
General information

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.


Tootekood: AKV6004309 ,   Tarneaeg: 3-7 päeva
39,65 €

Vieser One 52600 Horisontaaltrapp 50  3x32/40 tugijalgadega



Vieser One floor drain DN 50 3×32/40 with support legs

HVAC No. 3315930
EAN 6418685526007

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52600
HVAC No.
3315930
EAN
6418685526007
Package (box/pallet)
12/96
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9 kg
Material
polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52600 ,   Tarneaeg: 3-7 päeva
47,78 €

Vieser One 52601 Horisontaaltrapp 75 3x32/40 tugijalgadega



Vieser One floor drain DN 75 3×32/40 with support legs

HVAC No. 3315931


Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

echnical specifications

Vieser No.
52601
HVAC No.
3315931
EAN
6418685526014
Package (box/pallet)
12/96
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9 kg
Material
polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,6l/s
General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52601 ,   Tarneaeg: 3-7 päeva
47,78 €

Vieser One 52610 Horisontaaltrapp 75

Vieser One floor drain DN75 (without support legs)



Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Vieser One floor drain is compatible with Vieser design floor drains:



Tootekood: AKV52610 ,   Tarneaeg: 3-7 päeva
36,60 €

VIESER ONE 52612 trap 50 3X32/40 külg väljajooks

Vieser One floor drain DN50 3×32/40 (without support legs)

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52612

Package dimensions
23 x 14,5 x 22 cm
Package weight
0,9 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52612 ,   Tarneaeg: 7-14 päeva
36,60 €

Vieser One 52630 Vertikaaltrapp 75  3x32/40

Vieser One vertical floor drain DN 75 3×32/40

HVAC No. 3315935


Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.


The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package contains the floor drain,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52630
HVAC No.
3315935
EAN
6418685526304
Package (box/pallet)
15/120
Package dimensions
20 x 25 x 20 cm
Package weight
0,65 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
2,3l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.









Tootekood: AKV52630 ,   Tarneaeg: 3-7 päeva
42,70 €



Vieser One 52631 Vertikaaltrapp 75

Vieser One vertical floor drain DN 75

HVAC No. 3315979


Suitable for sewerage systems for regular wastewater.

The Vieser One vertical floor drain is part of the Vieser floor drain system.


The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52631
HVAC No.
3315979
EAN
6418685526311
Package (box/pallet)
15/120
Package dimensions
20 x 25 x 20 cm
Package weight
0,65 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
2,3l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.










Tootekood: AKV52631 ,   Tarneaeg: 3-7 päeva
42,70 €

Vieser One 52640 Horisontaalne kuivtrapp 32/40 tugijalgadega





Vieser One untrapped drain DN32/40 with support legs



HVAC No. 3315936





Suitable for sewerage systems for regular wastewater.



The Vieser One untrapped drain is part of the Vieser floor drain system.



The untrapped drain can be used with a Vieser extension ringswaterproofing flange or gratings.



The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap.



Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.



Technical specifications

Vieser No.
52640
HVAC No.
3315936
EAN
6418685526403
Package (box/pallet)
7/84
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,54 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
0,6l/s
General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating. The package contains the untrapped drain, protective lid, support legs, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.



Tootekood: AKV52640 ,   Tarneaeg: 3-7 päeva
39,65 €

Vieser One 52641 Horisontaalne kuivtrapp 32/40



Vieser One untrapped drain DN32/40 without support legs



HVAC No. 3315942



Suitable for sewerage systems for regular wastewater.

The Vieser One untrapped drain is part of the Vieser floor drain system.

The untrapped drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool.

An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

You can download water proofing pictures as a PDF & DWG file.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Vieser untrapped drain is compatible with Vieser design floor drains:





Technical specifications

Vieser No.
52641
HVAC No.
3315942
EAN
6418685526410
Package (box/pallet)
15/180
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,54 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
0,6l/s
General information

The Vieser One untrapped drain is part of the Vieser floor drain system. The untrapped drain can be used with a Vieser extension ring, waterproofing flange or grating.

The package contains the untrapped drain, protective lid, a clamping ring, a seal and a clamping ring installation tool. An untrapped drain does not include a water trap. Untrapped drain must be connected to a floor drain with a water trap or other form of water trap. Can be used in a sauna, for example. Cannot be used under a shower.

Tootekood: AKV52641 ,   Tarneaeg: 3-7 päeva
25,42 €

Vieser One 6004512 Horisontaaltrapp EXTRA madal 50 1x32 1.2L/sek



Vieser One horizontal drain DN50 1x32 extra low



HVAC No. 3317307


The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:



The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.

Technical specifications

Vieser No.
6004512
HVAC No.
3317307
EAN
6430066742325
Package (box/pallet)
10/120
Package dimensions
35 x 25 x 70 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.
Flow
1,2 l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring and a tool for installing the clamping ring.






Tootekood: AKV6004512 ,   Tarneaeg: 3-7 päeva
45,75 €

Vieser One 6004513 Horisontaaltrapp EXTRA madal 50 1x32 jalgadega



Vieser One horizontal drain DN50 1x32 extra low with support legs

HVAC No. 3317308


The lowest floor drain on the market 69 mm

The Vieser One horizontal extra low floor drain is the lowest floor drain on the market, with a flow rate of 1.2 l/s The low structure is a significant benefit in both renovations and new construction.

Thanks to the efficient flow rate, the drain is suitable for use in both showers and bathtubs, and it is compatible with all Vieser drain covers and extension rings. The drain has one 32 mm side inlet.

Water trap based on membrane technology

The water trap is based on innovative membrane technology. The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

Hygienic and quiet

The membrane water trap of the extra low drain is very hygienic, as it does not collect impurities. Dirt is swept away with the water flow. If necessary, the water trap can be removed and lifted up.

The waterless membrane trap is silent in use. It is also an excellent option for spaces that experience problems with the water trap drying out.

The Vieser One floor drain is compatible with Vieser’s traditional gratings and Vieser’s design covers:

The watertightness and proper functioning of Vieser floor drains have been proven through rigorous tests according to the standard EN 1253-2, on which the type approvals granted by RISE are also based.

The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.



Technical specifications

Vieser No.
6004513
HVAC No.
3317308
EAN
6430066742332
Package (box/pallet)
10/80
Package dimensions
35 x 25 x 10 cm
Package weight
0,8 kg
Material
Polypropylene (PP)
Usage
Suitable for regular residential wastewater sewage systems in accordance with the Finnish Ministry of the Environment’s decree on buildings’ water and sewer systems.
Flow
1,2 l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, membrane flange and gratings/covers. The drain has one 32 mm side inlet. The package includes the drain, water trap, casting shield, clamping ring, support legs and a tool for installing the clamping ring.








Tootekood: AKV6004513 ,   Tarneaeg: 3-7 päeva
52,87 €

VIESER ONE trap 52611 75 3X32/40 külg väljajooks

Vieser One floor drain DN75 3×32/40 (without support legs)



Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.
52611
HVAC No.
7110408
Package (box/pallet)
17/136
Package dimensions
23 x 14,5 x 22 cm
Package weight
0,9 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,6l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Tootekood: AKV52611 ,   Tarneaeg: 7-14 päeva
36,60 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
