Dušisegisti seina sisse isesulguv Delabie TEMPOMIX 3 794BOX1+794218 30sek

Tootekood: DE-794BOX1-794218
Kaubamärk:
Ühik: kompl
Tarneaeg: 14 -21 päeva
Hind:
648,00 €
Kuumakse alates: 55,08 €
Kogus: - +
   - või -

DESCRIPTION

TEMPOMIX 3 shower mixer

Ref. 794BOX1-794218

Recessed time flow shower mixer with soft-touch operation:

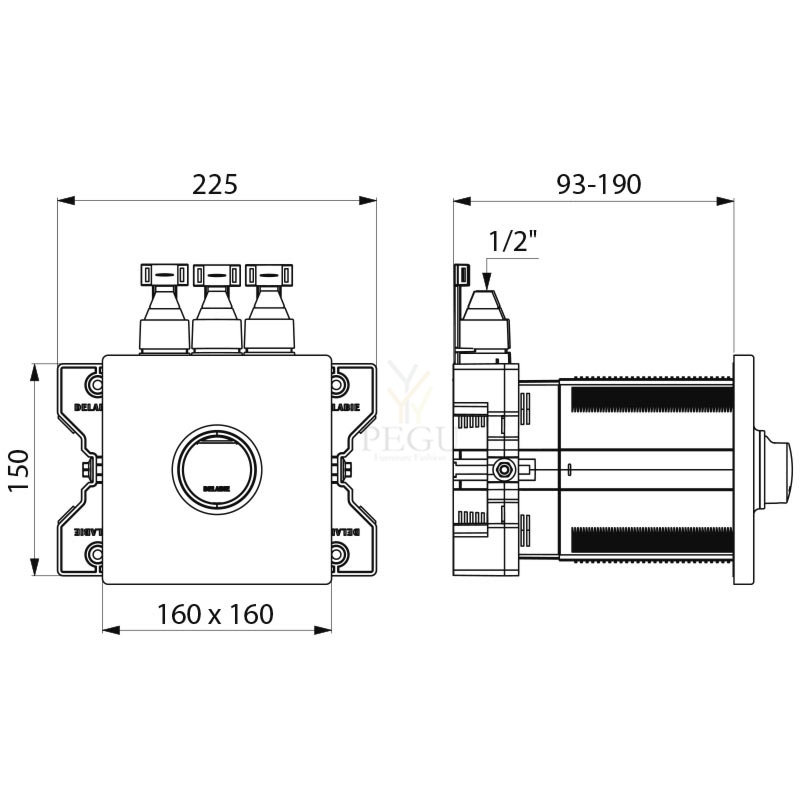

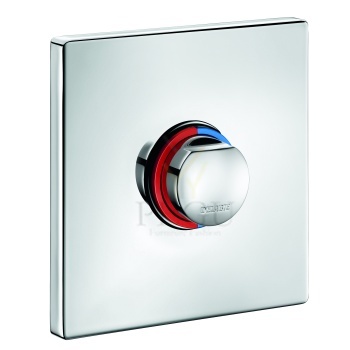

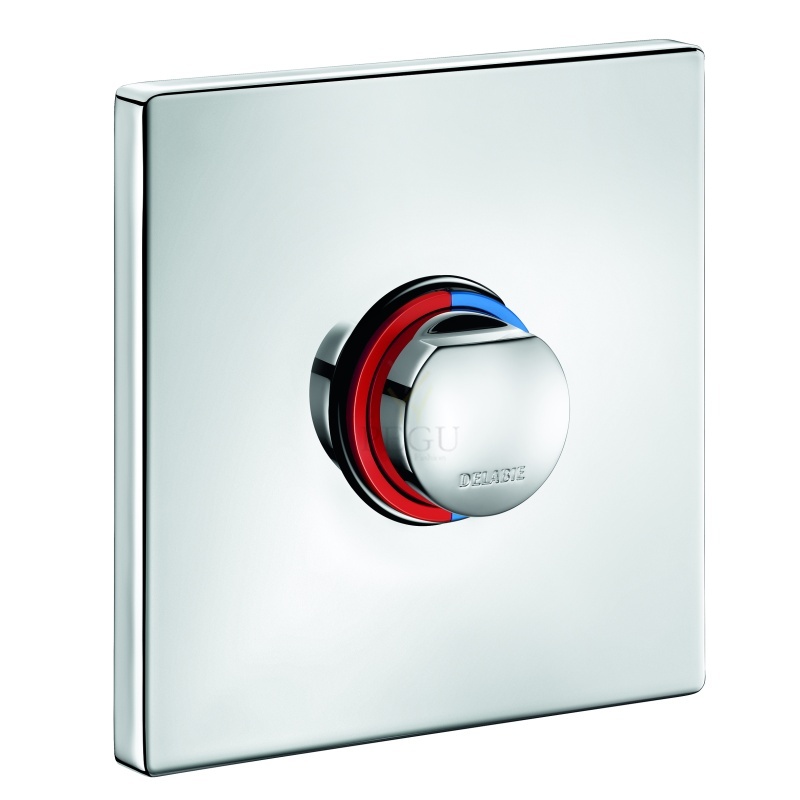

Tamperproof chrome-plated metal wall plate 160 x 160mm.

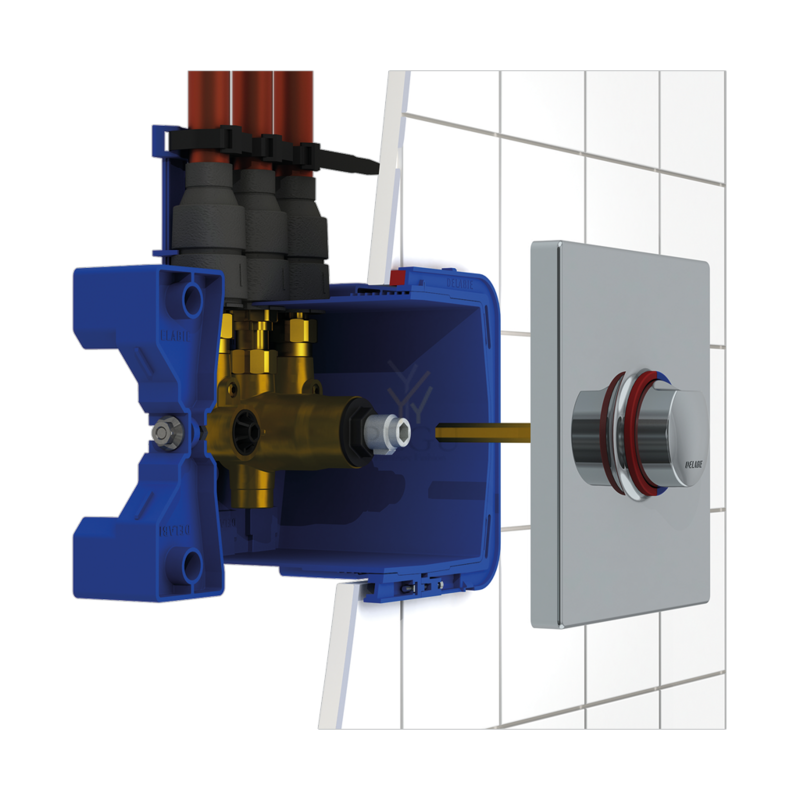

Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.

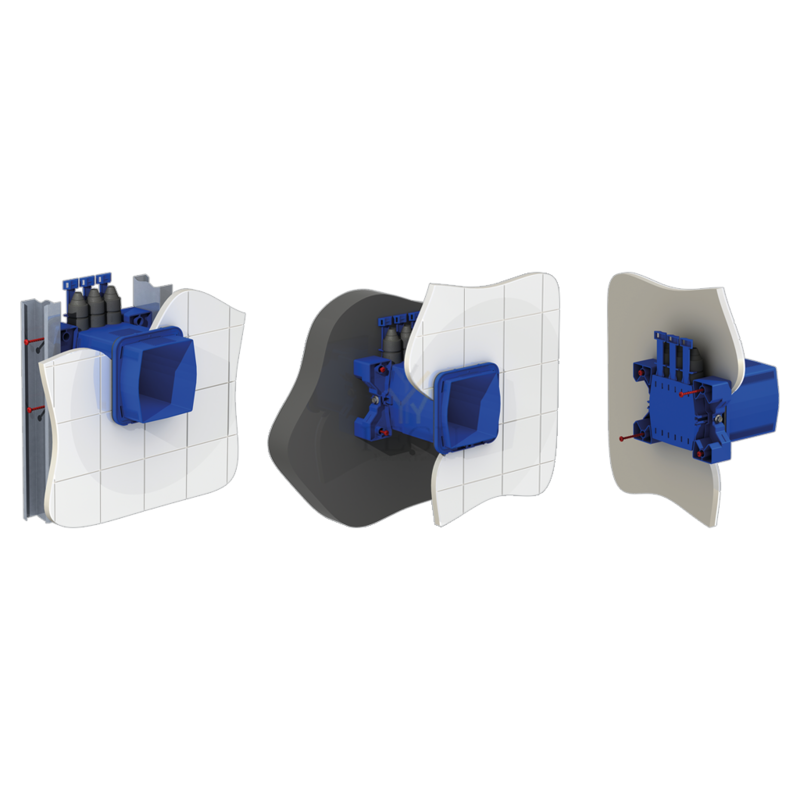

- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 9 lpm at 3 bar.
Sarnased tooted

Peitsegisti 30 sek töötsükkel

Tootekood: P35941 ,   Tarneaeg: 7-14 päeva
564,00 €

Peitsegisti 30 sek töötsükkel

Tootekood: P35190 ,   Tarneaeg: 7-14 päeva
624,00 €

Peitsegisti 30 sek töötsükkel

Antiblock süsteemiga

Tootekood: P35192 ,   Tarneaeg: 7-14 päeva
665,00 €

TEMPOMATIC shower kit
Ref. 452159

Cross wall electronic shower kit:
TEMPOMATIC electronic valve for mixed water supply.
For walls ≤ 155mm.
Power supply by electronic unit with solenoid valve 1/2".
230/12V transformer.
2 operation modes:
- Automatic activation via presence detection.
- Voluntary ON/OFF activation by passing the hand in front of sensor ~10 cm.
Duty flush (~60 seconds every 24 hours after the last use).
Adjustable time flow from 30 to 60 seconds.
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Chrome-plated solid brass.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.

Tootekood: DE-452159 ,   Tarneaeg: 14-21 päeva
546,00 €

TEMPOMIX 3 shower mixer
Ref. 794470

Exposed time flow shower mixer:
TEMPOMIX 3 single control mixer, bottom outlet M3/4" with M1/2" connector.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
For wall-mounted, exposed installation.
Soft-touch operation.
Time flow pre-set at ~30 seconds, can be adjusted from 20 - 30 seconds.
Flow rate 9 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M1/2" offset connectors for 130 - 170mm centres.

Tootekood: DE-794470 ,   Tarneaeg: 14-21 päeva
378,00 €

TEMPOMIX 3 shower kit
Ref. 794450

Exposed time flow shower kit:
TEMPOMIX 3 single control mixer ¾", top outlet.
For wall-mounted, exposed installation.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow pre-set at ~30 seconds, can be adjusted from 20 - 30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant TONIC JET shower head with automatic flow rate regulation.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
Shower column Ø 16mm with reinforced collar (fixing plate and screws included).
M1/2" offset connectors for 130 - 170mm centres.

Tootekood: DE-794450 ,   Tarneaeg: 14-21 päeva
579,00 €

TEMPOMIX shower kit
Ref. 790912

Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).



TECHNICAL FEATURES

TEMPOMIX shower kit
Ref. 790912

Connector 1/2"
Technology Time flow
Flow rate 6 lpm
Tootekood: DE-790912 ,   Tarneaeg: 14 päeva
546,00 €

TEMPOSOFT 2 shower kit
Ref. 749429

Recessed time flow shower kit:
TEMPOSOFT 2 M1/2" time flow valve for mixed water supply.
For recessed installation.
Bright polished stainless steel 304 wall plate Ø 130mm.
Recessing depth can be adjusted from 1 to 5mm.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof ROUND shower head with scale-resistant nozzle and automatic flow rate regulation.
Body and shower head in chrome-plated solid brass.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

Tootekood: DE-749429 ,   Tarneaeg: 14-21 päeva
294,00 €

Vajutava nupuga dušši segisti

ALPA

Presto

kroom-must nupp

30 sek. töötsükkel 3 bar



Tootekood: P35813 ,   Tarneaeg: 7-14 päev
540,00 €

Vajutava nupuga dušši segisti

ALPA

Presto

kroom-must nupp

30 sek. töötsükkel 3 bar



Tootekood: P35815 ,   Tarneaeg: 14-21 päev
546,00 €

DESCRIPTION

TEMPOMIX 3 shower kit
Ref. 794BOX1-794219

Recessed time flow shower mixer with soft-touch operation:
Tamperproof chrome-plated metal wall plate 160 x 160mm.
Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.

Tootekood: DE-794BOX1+794219 ,   Tarneaeg: 14 -21 päeva
780,00 €

SPORTING 2 shower panel
Ref. 714700

Time flow shower panel:
Anodised aluminium and chrome-plated satin finish panel.
Adjustable connector for top or back inlets.
Slimline structure with concealed fixings.
Soft-touch operation.
Automatic mechanical flush with every use.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Tamperproof, scale-resistant fixed shower head with automatic flow rate regulation.
Adjustable spray.
Accessible non-return valve and filter.
Integrated stopcock.
M1/2" connection for mixed water supply.

Tootekood: DE-714700 ,   Tarneaeg: 7-14 päeva
279,00 €
Sarnased tooted

Segisti, isesulguv

kroom

30sek töötsükkel



Tootekood: IDR-08132-30 ,   Tarneaeg: 7-21 päeva
264,00 €

1102

Veesääst 40% (3 bar)

Aeraator segisti jooksutorule M24x1 või M22x1 (üleminek komplektis). Roostevabast terasest sõel. Toodetud Saksamaal. Pakendis 1 tk.

Tootekood: RSTJ-1112 ,   Tarneaeg: 7 päeva
6,00 €

Vajutava nupuga dušši segisti

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar



Tootekood: P35816 ,   Tarneaeg: 14-21 päev
576,00 €

Peitsegisti 30 sek töötsükkel

Antiblock süsteemiga

Tootekood: P35192 ,   Tarneaeg: 7-14 päeva
665,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
90,00 €
