TRAPID JA PÕRANDARESTID

TRAPID JA PÕRANDARESTID

Veetrapid ja põrandarestid on olulised sanitaartehnilised seadmed, mis aitavad tagada hea veekasutuse ning kanalisatsioonisüsteemi toimimise. Need on tavaliselt paigaldatud põrandale või äravooluavadele, et ära hoida vee tagasivoolu ja ummistuste teket ning tagada korralik drenaaž.

Veetrapid on seadmed, mis asuvad vee äravooluavade või sanitaartehniliste seadmete all, näiteks valamud, kraanikausid, dušinurgad, vannid ja WC-potid. Veetrapid takistavad kanalisatsioonilõhnade ja gaaside tagasivoolu ruumi ning aitavad samuti vältida vee tagasivoolu, mis võib põhjustada üleujutusi ja kahjustusi. Veetrapid on saadaval erinevates konstruktsioonides ja suurustes, sõltuvalt konkreetsest paigalduskohast ja nõuetest.

Põrandarestid on äravoolugraafikud või restid, mis paigaldatakse põrandale, et võimaldada vee äravoolu, näiteks dušinurkades, vannitubades, köökides või teistes niisketes ruumides. Need aitavad vältida vee kogunemist ja võimaldavad selle sujuvat äravoolu kanalisatsioonisüsteemi. Põrandarestid on tavaliselt valmistatud vastupidavatest materjalidest, nagu roostevaba teras, messing või plastik, ning neil võib olla erinevaid kujundeid ja disainilahendusi vastavalt paigalduskohta ja kasutusvajadustele.

Kvaliteetsed veetrapid ja põrandarestid on oluline osa nõuetekohasest sanitaartehnilisest paigaldusest, aidates vältida ummistuste teket, kanalisatsioonilõhnade levikut ning vee tagasivoolu ja üleujutuste tekkimist. Need tagavad tõhusa veekasutuse ja kanalisatsioonisüsteemi toimimise, aidates hoida ruumid puhtad, kuivad ja ohutud.



Trapid ja kaaned Vieser

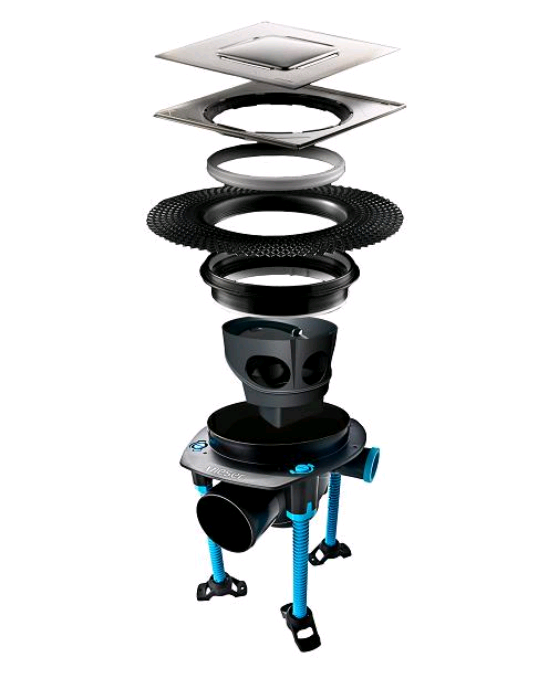

Vieser floor drain system



VIESER KATALOOG 2022





VIESER ONE ERITI MADAL HORISONTAALNE TRAPP







VIESER PÕRANDATRAPI PAIGALDUSJUHEND



Alamgrupid

Järjesta:
Kuva: Nimekirjana / Võrgustikuna

Horisontaalne trapp VIESER 50 mm

Vieser low model floor drain DN 50

HVAC No. 3315971


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.



Technical specifications

Vieser No.
52614
HVAC No.
3315971
EAN
6418685526144
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV52614 ,   Tarneaeg: 3-7 päeva
18,00 €

Horisontaalne trapp VIESER 52615 75 mm

Vieser low model floor drain DN 75

HVAC No. 3315972


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.
52615
HVAC No.
3315972
EAN
6418685526151
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,5l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.






Tootekood: AKV52615 ,   Tarneaeg: 3-7 päeva
18,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316950 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316956 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Punainen
Tootekood: LVI3316979 ,   Tarneaeg: 21 päeva
89,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316784 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316785 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Musta
Tootekood: LVI3316961 ,   Tarneaeg: 21 päeva
75,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316787 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316788 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVR3316952 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316786 ,   Tarneaeg: 7-14 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Antrasiitti
Tootekood: LVI3316976 ,   Tarneaeg: 14-21 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Musta
Tootekood: LVI3316966 ,   Tarneaeg: 14-21 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: Punainen
Tootekood: LVI3316978 ,   Tarneaeg: 14-21 päeva
55,00 €

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.



Lattiakaivon kannen lisätiedot:

  • Valmistaja: LVI-Pörssi
  • Kehyksen ulkomitat: 197 x 197 mm
  • Korkeus 4 mm
  • Materiaali: ruostumaton teräs (AISI304)
  • Väri: teräs
Tootekood: LVI3316951 ,   Tarneaeg: 7-14 päeva
55,00 €

Poripüüdja RST 730 x430 kummikattega

Tootekood: AK4912000 ,   Tarneaeg: 14-21 päeva
555,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
417,00 €

Trapikaas MUST plastraamiga 6005480 Vieser Classic+ 197x197 mm

roostevaba teras

Vieser Classic+ Black with plastic frame 197x197

HVAC No. 3317314


NEW!
Floor drain grating made of durable, Finnish stainless steel. A timeless and elegant redesign now available in black.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005480
HVAC No.
3317314
EAN
6430066742882
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg

Tootekood: AKV6005480 ,   Tarneaeg: 3-7 päeva
72,00 €

Trapikaas plastraamiga 51224 Vieser Classic+ 197x197 mm

Roostevaba teras

Vieser Classic+ with plastic frame197x197

HVAC No. 3316333


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
    (EN 1253) - withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
51224
HVAC No.
3316333
EAN
6418685512246
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg




Tootekood: AKV51224 ,   Tarneaeg: 3-7 päeva
48,00 €

Trapikaas plastraamiga 51241 Vieser Modren 197x197 mm

Roostevaba teras

Vieser Modern - Stainless steel grating with plastic frame – 197×197

HVAC No. 3315952


For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51241
HVAC No.
3315952
EAN
6418685512413
Package (box/pallet)
20/480
Package dimensions
26 x 2 x 22 cm
Package weight
0,6kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.



Tootekood: AKV51241 ,   Tarneaeg: 3-7 päeva
57,00 €

Trapikaas plastraamiga 51254 Vieser Classic 160x160 mm

Roostevaba teras

Vieser Classic - Stainless steel grating with plastic frame – 160×160

HVAC No. 3316255


For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor



Technical specifications

Vieser No.
51254
HVAC No.
3316255
EAN
6418685512543
Package (box/pallet)
20/800
Package dimensions
22 x 2 x 18,5 cm
Package weight
0,4kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

Tootekood: AKV51254 ,   Tarneaeg: 3-7 päeva
51,00 €

Trapikaas plastraamiga 51256 Vieser Classic 160x160 mm +d32mm

Roostevaba teras

Vieser Classic Ø32 - Stainless steel grating with plastic frame – 160×160




For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.

The package contains a square stainless steel grating and a plastic frame.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51256
HVAC No.
3316153
EAN
6418685512567
Package (box/pallet)
20/800
Package dimensions
22 x 2 x 18,5 cm
Package weight
0,4kg
Material
Grating: Stainless steel (AISI 304) Frame: ABS
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and a plastic frame.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.


Tootekood: AKV51256 ,   Tarneaeg: 3-7 päeva
54,00 €

Trapikaas plastraamiga 6005479 Vieser Grid 197x197 mm RST

Roostevaba teras

Vieser Grid with plastic frame 197x197

HVAC No. 3317313


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings

Technical specifications

Vieser No.
6005479
HVAC No.
3317313
EAN
6430066742851
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg

Tootekood: AKV6005479 ,   Tarneaeg: 3-7 päeva
63,00 €

Trapikaas plastraamiga 665478 Vieser LINK 197x197 mm RST

Roostavaba teras

Vieser Link with plastic frame197 x 197

HVAC No. 3317312


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Link square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005478
HVAC No.
3317312
EAN
6430066742820
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg


Tootekood: AKV6005478 ,   Tarneaeg: 3-7 päeva
61,00 €

Trapikaas plastraamiga VIESER LINK MUST 6005481 197x197 RST

Roostevaba teras



Vieser Link Black with plastic frame 197x197



HVAC No. 3317315


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign now available in black.

  • Type approved based on European standard
    (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Link square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005481
HVAC No.
3317315
EAN
6430066742912
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg





Tootekood: AKV6005481 ,   Tarneaeg: 3-7 päeva
73,20 €

Trapikaas reguleeritava terasraamiga 51229 Vieser Classic+ 197x197 mm +32mm

Roostevaba teras

Vieser Classic+ Ø32 with plastic frame 197x197

HVAC No. 3316193


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ Ø32 square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round



Technical specifications

Vieser No.
51229
HVAC No.
3316193
EAN
6418685512291
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg
Tootekood: AKV51229 ,   Tarneaeg: 3-7 päeva
76,00 €

Trapikaas reguleeritava terasraamiga 51291 Vieser Modren 197x197 mm RST

Roostevaba teras

Vieser Modern - Stainless steel grating with adjustable stainless steel frame – 197×197

HVAC No. 3315954


The package contains  square Vieser stainless steel grating and an adjustable steel frame.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.

  • Modern grating is our customer survey favourite
  • Modern stainless steel grating and adjustable steel frame 197x197 mm
  • Comes with an easy-to-install adjustable steel frame

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51291
HVAC No.
3315954
EAN
6418685512918
Package (box/pallet)
20/480
Package dimensions
22,5 x 1,5 x 22 cm
Package weight
0,6 kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.

Tootekood: AKV51291 ,   Tarneaeg: 3-7 päeva
78,00 €

Trapikaas reguleeritava terasraamiga AKV51292 Vieser Classic+ 197x197 mm

Roostevaba teras

 Vieser Classic+ with adjustable steel frame 197×197
HVAC No. 3315955


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
  • (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Classic+ square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
51292
HVAC No.
3315955
EAN
6418685512925
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg



Tootekood: AKV51292 ,   Tarneaeg: 3-7 päeva
72,00 €

Trapikaas reguleeritava terasraamiga 665483 Vieser Grid 197x197 mm RST


Roostevaba teras


HVAC No. 3317317


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
    (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Grid square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005483
HVAC No.
3317317
EAN
6430066742974
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg
Tootekood: AKV665483 ,   Tarneaeg: 3-7 päeva
87,00 €

Trapikaas VIESER LINK 6005482 reguleeritava terasraamiga 197x197

Roostevaba teras

Vieser Link with adjustable steel frame 197x197

HVAC No. 3317316
EAN 6430066742943

NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
    (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Link square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Technical specifications

Vieser No.
6005482
HVAC No.
3317316
EAN
6430066742943
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg



Tootekood: AKV6005482 ,   Tarneaeg: 3-7 päeva
87,00 €

Vertikaalne trapp VIESER 51125 50 mm

Vieser vertical drain DN 50

HVAC No. 3312350


Suitable for sewerage systems for regular wastewater.

The Vieser vertical floor drain is part of the Vieser floor drain system.

The package contains Vieser vertical floor drain, a water trap, a protective lid, a clamping ring, a seal and a white plastic grating

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

Technical specifications

Vieser No.
51125
HVAC No.
3312350
EAN
6418685511256
Package (box/pallet)
8/192
Package dimensions
20 x 12 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,3l/s
General information

The package contains Vieser vertical floor drain, a water trap, a protective lid, a clamping ring, a seal and a white plastic grating

Vieser vertical floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Tootekood: AKV51125 ,   Tarneaeg: 3-7 päeva
18,00 €

Vieser 51130 Hüdroisolatsioonikrae

Vieser membrane flange

HVAC No. 3319661
EAN 6418685511904

For Vieser floor drains, untrapped drains and extension rings when using waterproofing paint.

Compatible with all Vieser floor drains and extension rings.

Must be attached with the clamping ring supplied with the floor drain or extension ring.



Technical specifications

Vieser No.
51190
HVAC No.
3319661
EAN
6418685511904
Package (box/pallet)
12/288
Package dimensions
40 x 3 x 30 cm
Package weight
0,2 kg
Material
TPE
Usage
Must be attached with the clamping ring supplied with the floor drain, untrapped drain or extension ring.
General information

For Vieser floor drains, untrapped drains and extension rings when using waterproofing paint.
Compatible with all Vieser floor drains and extension rings.

Tootekood: AKV51130 ,   Tarneaeg: 3-7 päeva
13,00 €

Vieser 51180 Tõsterõngas 12mm

Vieser low model extension ring 12 mm

HVAC No. 3318951


The package contains the extension ring, a white lip seal,  a grey clamping ring and a white support ring.

Please note:

a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.

The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.

A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.



Tootekood: AKV51180 ,   Tarneaeg: 3-7 päeva
35,00 €

Vieser 51183 Tõsterõngas 18mm

Vieser low model extension ring 18 mm

HVAC No. 3318952


The package contains the extension ring, a white lip seal,  a grey clamping ring and a white support ring.

Please note:

a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.

The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.

A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.



Tootekood: AKV51183 ,   Tarneaeg: 3-7 päeva
35,00 €

Vieser 51205 Tõsterõngas 25-88mm

Vieser extension ring 25-88mm

HVAC No. 3318415


Compatible with all Vieser floor drains. Installed below the waterproofing.

Raises the floor drain by 25–88 mm.

The package contains the extension ring, a grey lip seal and a white clamping ring.



Tootekood: AKV51205 ,   Tarneaeg: 3-7 päeva
13,00 €

Vieser 51206 Betoonivalu tõsterõngas ümmargusele kaanele

Vieser Distance ring

HVAC No. 3318314
EAN 6418685512062

To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.

(Above the waterproofing only)

Technical specifications

Vieser No.
51206
HVAC No.
3318314
EAN
6418685512062
Package (box/pallet)
20/480
Package dimensions
15 x 5 x 15 cm
Package weight
0,1 kg
Material
Polypropylene PP
Usage
To be used as the framework/extension of a round grating in tiled floors. Can only be used above the waterproofing.
General information

(Above the waterproofing only )



Tootekood: AKV51206 ,   Tarneaeg: 3-7 päeva
12,00 €

Vieser 51208 Tõsterõngas külgavadega 3x32 mm

Vieser extension ring with side inlets 3x32mm

HVAC No. 3318452




Technical specifications

Vieser No.
51208
HVAC No.
3318452
EAN
6418685512086
Package (box/pallet)
22/176
Package dimensions
20 x 10 x 20 cm
Package weight
0,3 kg
Material
Polypropylene PP
Usage
To be installed into Vieser floor drains below the waterproofing. Three 32-mm side inlets can be connected to the extension ring.
General information

An extension ring that raises the floor drain by 66-91mm. The package contains the extension ring, a grey lip seal and a white clamping ring.



Tootekood: AKV51208 ,   Tarneaeg: 3-7 päeva
18,00 €

Vieser 51907 põrandatrapi spetsiaalne vesilukk

Vieser water trap for floor drains

HVAC No. 3304916

Can be installed into any Vieser floor drain with a water trap also after initial installation.


Technical specifications

Vieser No.
51907
HVAC No.
3304916
EAN
6418685519078
Package (box/pallet)
8/320
Package dimensions
13,5 x 11 x 13,5 cm
Package weight
0,1 kg
Material
Polypropylene PP
Usage
Can be installed into any Vieser floor drain with a water trap also after initial installation.
General information

The package contains: Vieser water trap for floor drains

Tootekood: AKV51907 ,   Tarneaeg: 3-7 päeva
39,00 €

Vieser 51923 põrandatrapi spetsiaalne vesilukk

A Vieser special water trap prevents the sewer from drying out and eliminates unpleasant odours. Recommended for rooms where the floor drain is used infrequently or is only used temporarily, such as laundry rooms or summer homes. Compatible with Vieser floor drains.

Can be installed into any Vieser floor drain with a water trap also after initial installation. Recommended for rooms where the floor drain is used infrequently or is only used temporarily, such as technical facilities, laundry rooms or summer homes.



Technical specifications

Vieser No.
51923
HVAC No.
3304919
EAN
6418685519238
Package (box/pallet)
20/480
Package dimensions
13,5 x 11 x 13,5 cm
Package weight
0,1 kg
Material
Polypropylene PP
Usage
A Vieser special water trap prevents the sewer from drying out and eliminates unpleasant odours. Recommended for rooms where the floor drain is used infrequently or is only used temporarily, such as laundry rooms or summer homes. Compatible with Vieser floor drains. Can be installed into any Vieser floor drain with a water trap also after initial installation. Recommended for rooms where the floor drain is used infrequently or is only used temporarily, such as technical facilities, laundry rooms or summer homes.
Tootekood: AKV51923 ,   Tarneaeg: 3-7 päeva
39,00 €

Vieser 6001178 DOT ⌀600mm - Tray renn ümmargune RST


Roostevaba teras


Vieser Dot ⌀600mm - Tray

HVAC No. 3315981


The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately.

Vieser Dot, with its innovative shape and size, represents a new kind of floor drain system that adds the finishing touch to your bathroom’s interior.

  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • With Vieser One drains, you can also make use of three DN32/40 side inlets for the floor drain to facilitate the placement of the drain and the installation of the pipeline.
  • Suitable for both new construction and renovations.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The Vieser Dot floor drain system has a patented solution that enables entirely safe installation and a completely watertight membrane joint. The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate) & (Vieser One and Vieser product certificate when using the Vieser membrane flange)
  • Vieser Dot is a very user-friendly floor drain system. Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Tootekood: AKV6001178 ,   Tarneaeg: 3-7 päeva
852,00 €

Vieser 6001186 DOT Kenoby, õlitatud D600MM ümmargune

Vieser Dot Kebony Cover, Oiled

HVAC No. 3315993
EAN 6430066741625


One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Kebony, Oiled. Kebony is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Non-toxic and ecologically produced Kebony is hard, durable and beautiful wood. Kebony® products are based on a patented process that involves impregnating the wood with furfuryl alcohol using high pressure and heat, thereby altering the wood’s molecular structure. The 100% bio-based liquid treatment, primarily based on furfuryl alcohol, is a byproduct of sugar cane production. This makes the wood non-toxic and thus completely safe. Kebony has been granted the Nordic Swan Ecolabel. Kebony is sustainably sourced: 100% radiata pine, sourced from forests that have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.




Tootekood: AKV6001186 ,   Tarneaeg: 3-7 päeva
1116,00 €

Vieser 6001188 DOT Accoya õlitatud D600MM ümmargune



Vieser Dot Cover Accoya, Oiled

HVAC No. 3315995
EAN 6430066741649

One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Accoya, Oiled. Accoya is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Accoya wood, produced under the Accoya trademark, is acetylated radiata pine. Acetylation refers to a process in which wood is treated with acetic anhydride. Accoya is naturally renewable, and it is also more durable than many threatened tropical hardwoods. Accoya has been granted numerous environmental certificates, including the Nordic Swan Ecolabel. All Accoya® wood is procured from well-managed forests that meet environmental requirements and which have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Technical specifications

Vieser No.
6001188
HVAC No.
3315995
EAN
6430066741649
Package (box/pallet)
1/10
Package dimensions
66 x 4,5 x 66cm
Package weight
12,5kg
Material
Accoya, Oiled
The size of the wooden lath in the floor drain cover
32,72mm
The size of the openings in the floor drain cover
4mm
General information

The package contains: The Vieser Dot ⌀600 mm Accoya cover and the Vieser lifting tool to make cleaning the drain easier.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Tootekood: AKV6001188 ,   Tarneaeg: 3-7 päeva
1116,00 €

Vieser 6001190 DOT Accoya vahatatud D600MM ümmargune

Vieser Dot Cover Accoya, Waxed

HVAC No. 3315997
EAN 6430066741663

One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Accoya, Waxed. Accoya is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Accoya wood, produced under the Accoya trademark, is acetylated radiata pine. Acetylation refers to a process in which wood is treated with acetic anhydride. Accoya is naturally renewable, and it is also more durable than many threatened tropical hardwoods. Accoya has been granted numerous environmental certificates, including the Nordic Swan Ecolabel. All Accoya® wood is procured from well-managed forests that meet environmental requirements and which have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Technical specifications

Vieser No.
6001190
HVAC No.
3315997
EAN
6430066741663
Package (box/pallet)
1/10
Package dimensions
66 x 4,5 x 66cm
Package weight
12,5kg
Material
Accoya, Waxed
The size of the wooden lath in the floor drain cover:
32,72mm
The size of the openings in the floor drain cover
4mm
General information

The package contains: The Vieser Dot ⌀600 mm Accoya cover and the Vieser lifting tool to make cleaning the drain easier.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Tootekood: AKV6001190 ,   Tarneaeg: 3-7 päeva
1116,00 €

Vieser extra low flow drain 605861 põrandatrapi spetsiaalne vesilukk membraaniga

Vieser One extra low floor drain membrane water trap

HVAC No. 3317340


The water trap is based on innovative membrane technology.
The traditional water space is replaced with an airtight membrane water trap that opens as the water flows and closes when it stops, preventing sewer gases from entering the room.

The membrane water trap, made from silicone rubber, has a long life and functions reliably in different temperatures and conditions.

echnical specifications

Vieser No.
6005861
HVAC No.
3317340
EAN
6430066743247
Package (box/pallet)
8/320
Usage
Can be installed into any Vieser One extra low floor drains also after initial installation.
General information

Package includes Vieser One extra low floor drain membrane water trap.



Tootekood: AKV6005861 ,   Tarneaeg: 3-7 päeva
41,00 €

Vieser low flow drain 51908 põrandatrapi spetsiaalne vesilukk



Vieser water trap for low floor drains

HVAC No. 3304917


Vieser water trap for low floor drains

HVAC No. 3304917
EAN 6418685519085

Can be installed into any Vieser low model floor drains.


Tootekood: AKV51908 ,   Tarneaeg: 3-7 päeva
39,00 €

Vieser nurgatrapikaas 6005080 Corner Modern 376 x 376 x 526 RST

Roostavaba teras

Vieser Corner Modern triangular floor drain 376 x 376 x 526

HVAC No. 3317311



An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Modern adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • Suitable for both new construction and renovations.
  • To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
  • The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
  • Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system - Tiling example

(DWG)Vieser Corner floor drain system - Tiling example



Technical specifications

Vieser No.
6005080
HVAC No.
3317311
EAN
6430066742790
Package (box/pallet)
12/144
Package dimensions
410 x 410 x 580
Package weight
1,2 kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Installation takes place when the floor is being tiled. The gap between the floor drain and the triangular grating must not be sealed.
General information

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system





Tootekood: AKV6005080 ,   Tarneaeg: 3-7 päeva
299,00 €

Vieser nurgatrapikaas Corner Core 376 x 376 x 526 RST

Roostavaba teras



Vieser Corner Core triangular floor drain 376 x 376 x 526



HVAC No. 3315980


An elegant triangular floor drain grating designed and manufactured in Finland, Vieser Corner Core adds a personal touch and a polished look to your bathroom.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • Suitable for both new construction and renovations.
  • To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.
  • The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an easy-to-use installation template.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate).
  • Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser Corner floor drain system - Tiling example

(DWG)Vieser Corner floor drain system - Tiling example



Technical specifications

Vieser No.
52928
HVAC No.
3315980
EAN
6430066741519
Package (box/pallet)
12/144
Package dimensions
410 x 410 x 580
Package weight
1,2kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Installation takes place when the floor is being tiled. The gap between the floor drain and the triangular grating must not be sealed.
General information

The package contains: A triangular, stainless steel Vieser Corner grating, an adjustable steel frame and an installation template.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain. The total adjustment range is 30 mm.

The Vieser floor drain is sold separately.

Choose the Vieser floor drain that is right for your Vieser Corner floor drain system



Tootekood: AKV52928 ,   Tarneaeg: 3-7 päeva
299,00 €

Vieser One  6004308   Nurgatrapp 75 45° 3x32/40

Vieser One floor drain 45° DN75 3 x 32/40 (without support legs)

HVAC No. 3317303


Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
6004308
HVAC No.
3317303
EAN
6430066742172
Package (box/pallet)
15/120
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,4 l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.





Tootekood: AKV6004308 ,   Tarneaeg: 3-7 päeva
39,00 €

Vieser One  6004309 Nurgatrapp 75 45°

Vieser One floor drain 45° DN75 (without support legs)

HVAC No. 3317304


Suitable for sewerage systems for regular wastewater.

The Vieser One floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.
6004309
HVAC No.
3317304
EAN
6430066742196
Package (box/pallet)
18/144
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9kg
Material
Polypropylene PP
Usage
The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.
Flow
1,4 l/s
General information

The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.


Tootekood: AKV6004309 ,   Tarneaeg: 3-7 päeva
39,00 €
