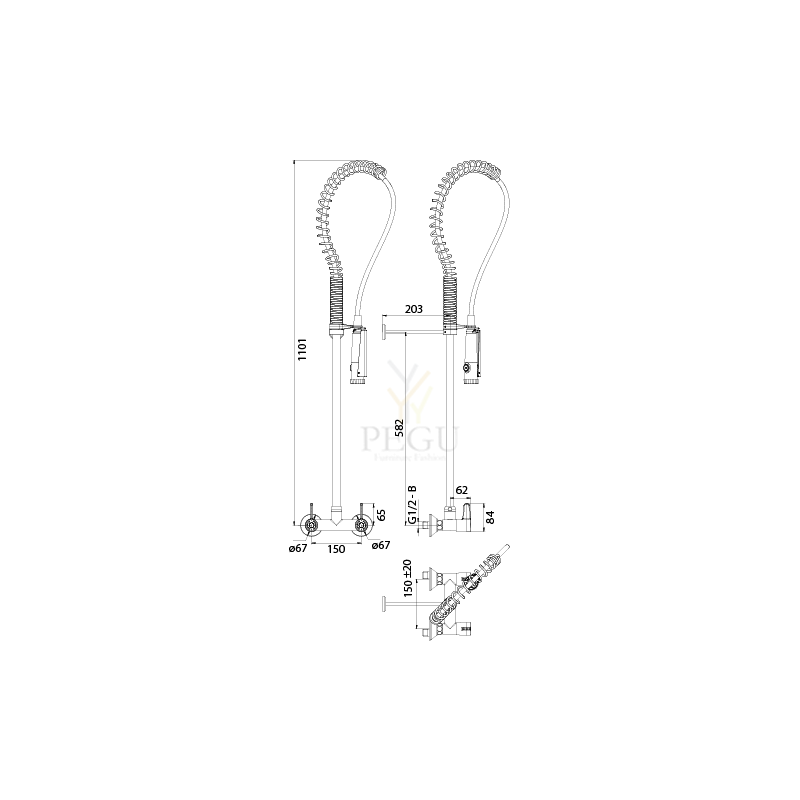

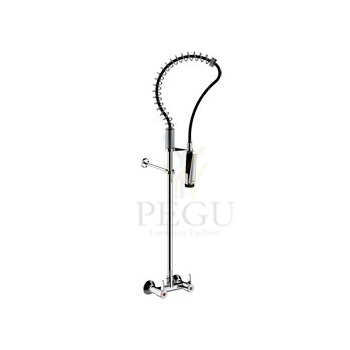

Presto CHEF professionaalne köögisegisti seinale dušiga 2 auk ref.70814

Tootekood: P70814
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
768,00 €
Kuumakse alates: 65,69 €
Kogus: - +
   - või -

Ref: 70814 - Wall-mounted column with 2 holes– rinsing head



> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Wall version: facilitates cleaning and promotes optimal hygiene
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts

> TECHNICAL SPECIFICATIONS > Model:

1/4 turn ceramic head mixer
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow regulated at 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve. Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right

> Recommended working pressure:

1 to 5 bars

> Shower flow:

12L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).

> Delivered with :

Eccentric rosettes
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

Sarnased tooted

Köögisegisti Damixa Space kroom


Proejekteerija ja sisekujundajate valik!

Standard features:

1 handle
120° swivel limitation
Ceramic cartridge
Scalding protection (38oC) Water consumption max. 13 l Eco-Save water saving feature

Tootekood: D100000A ,   Tarneaeg: 7-14 päeva
81,00 € (10%)
90,00 €

Köögisegisti Damixa Rowan kroom, pesumasinakraaniga

  • Artikli number 67071
  • Viimistlused Kroom
  • Standardfunktsioonid
  • Keraamiline tööorgan.
  • Põletuskaitsega
  • Veesäästu funktsioon Eco-Save.
  • Külm start.
  • Pööratav jooksutoru.
  • 120° pöördepiiraja.
  • Kummiaeraator – lihtne puhastada.

Tootekood: D6707100 ,   Tarneaeg: 7-21 päeva
243,00 € (10%)
270,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
417,00 €

Süvistatav kangsegisti pööratava 250 mm jooksutoruga

Keskmine käepide



131M

One-handle build-in mixer with ceramic disc technology.131MUP = Mixer 100. 131MAP = Handle NR28M, 250 mm double swivel spout 030, 60 mm circular flanges 001, 3001.

Ada approved.

Tootekood: Q131M-40 ,   Tarneaeg: 2-4 nädalad
1728,00 €

Köögisegisti Damixa Silhouet pesumasina ventiiliga matt messing

SILHOUET
Kitchen Mixer with Dishwasher Shut off valve brushed brass pvd

Article no.:

7408179

Finish:

Brushed Brass PVD

Series:

Silhouet

Designer:

Halskov & Dalsgaard


EAN no.:

5708516827924



Slim. Scandinavian. Attractive.

With its pure, inviting design Silhouet fits beautifully in the kitchens and bathrooms of today as well as tomorrow. For the bathroom sink, Silhouet is available in three different heights to ensure you can also use it with a tall, tabletop mounted vessel sink. The stylish Silhouet shower system features a showerhead that due to its ultra slim design appears to hover for an even more sophisticated look. Silhouet is the essence of timeless Scandinavian design and outstanding Damixa quality.

Tootekood: D7408179 ,   Tarneaeg: 7-14 päeva
431,10 € (10%)
479,00 €
