Presto CHEF professionaalne köögisegisti seinale dušiga 2 auk ref.70826

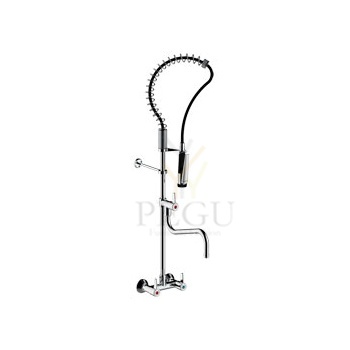

Ref: 70826 - Wall-mounted column with 2 holes– rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns Fast filling of tanks: 30L /min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Wall version: facilitates cleaning and promotes optimal hygiene
Flow straightener to channel water and avoid lateral water splashes

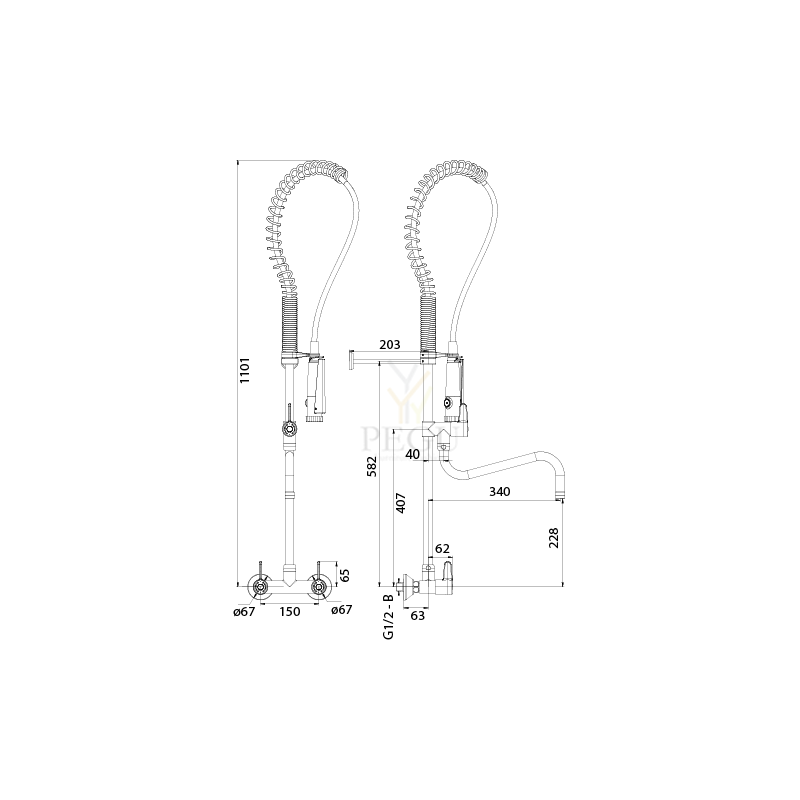

> TECHNICAL SPECIFICATIONS > Dimensions:
Height under spout: 228 mm
Spout projection: 340 mm
Height of the fixing: 582 mm compared to the body EA 150 mm
Wall-mounted two-hole mixer with ceramic head 1/4 turn with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar shower nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
Presto Maesto köögisegisti
Deck-mounted single hole mixer - 45 lpm
Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 195mm L. 200mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixing via two stainless steel rods.
F3/8" PEX flexibles.
Mechanical mixer set and column with retracting hand spray
Mechanical mixer set and column with retracting hand spray.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Swivelling column H. 250mm L. 220mm.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Mixer body and column with smooth interior.
Flow rate 12 lpm at 3 bar.
Sculptured control lever.
Mixed water brass outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose, smooth interior and exterior, low water volume (interior Ø 6mm).
Chrome-plated brass body.
F⅜" PEX flexibles and reinforced fixing via 2 stainless steel rods.
Twin hole pre-rinse set with mixer
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
Twin hole pre-rinse set with mixer
|Height||1110 - 1230mm|
|Drop height||345 - 585mm|
|Flow rate||25 lpm|
|Width to the wall||35 - 162mm|
