Presto CHEF professionaalne köögisegisti seinale ref.70806

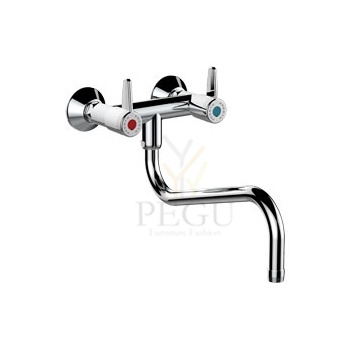

Ref: 70806 - Wall-mounted mixer tap with 2 holes – downward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: diameter 22 mm
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Wall version: facilitates cleaning and promotes optimal hygiene
Ease of cleaning
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:

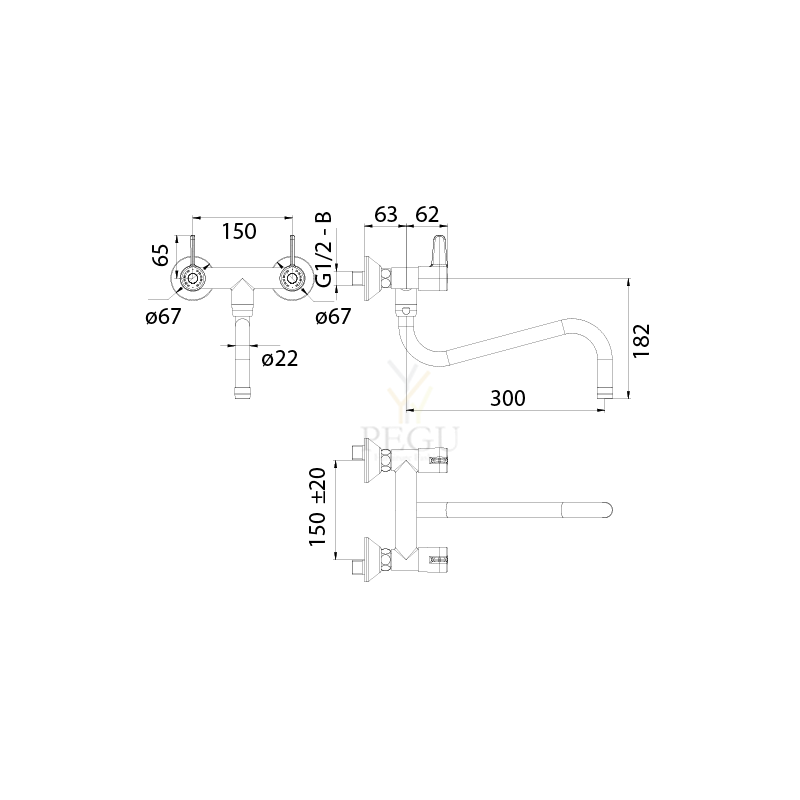

360 ° swivel spout, projection 300 mm, height under "body" 182 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head with flow rate 81L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
Eccentric fittings M 1/2 '' M 3/4 '' supplied with rosettes
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
NF check valves 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Valamu R/V terasest
Utility sink in stainless steel for wall mounting. Including supporting bracket, backstand, taphole right hand side, waste with plug and overflow, screws and plugs.
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
GENOU wall-mounted hand washbasin
Wall-mounted, knee-operated hand washbasin.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
Supplied with swan neck spout and time flow
tap with 7 second time flow.
Supplied with 1 ¼" waste.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Pre-rinse set with mixer
Complete pre-rinse set with bib tap.
Single hole deck-mounted mixer with slimline control lever.
Supplied with F3/8" flexible hoses and non-return valves.
Bib tap with swivelling, tubular spout L. 200mm.
- 16 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism and ergonomic control.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
Pre-rinse set with mixer
|Drop height||340 - 580mm|
|Flow rate||16 lpm|
|Width to the wall||35-162mm|
