Tootegrupid
70824.jpg Zoom

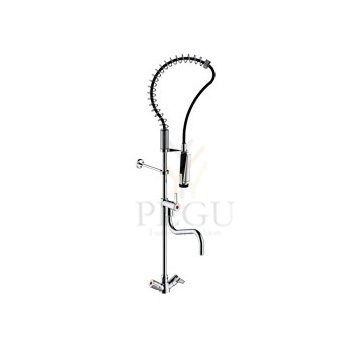

Presto CHEF professionaalne köögisegisti dušiga 1 auk ref.70824

Tootekood: P70824
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 1077,00 €
1023,15 €
Kuumakse alates: 86,97 €
Kogus: - +
   - või -

Ref: 70824 - Column – deck-mounted mixer – rinsing head

> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
Locking hook to avoid MSD (musculoskeletal disorder)
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue pad allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts

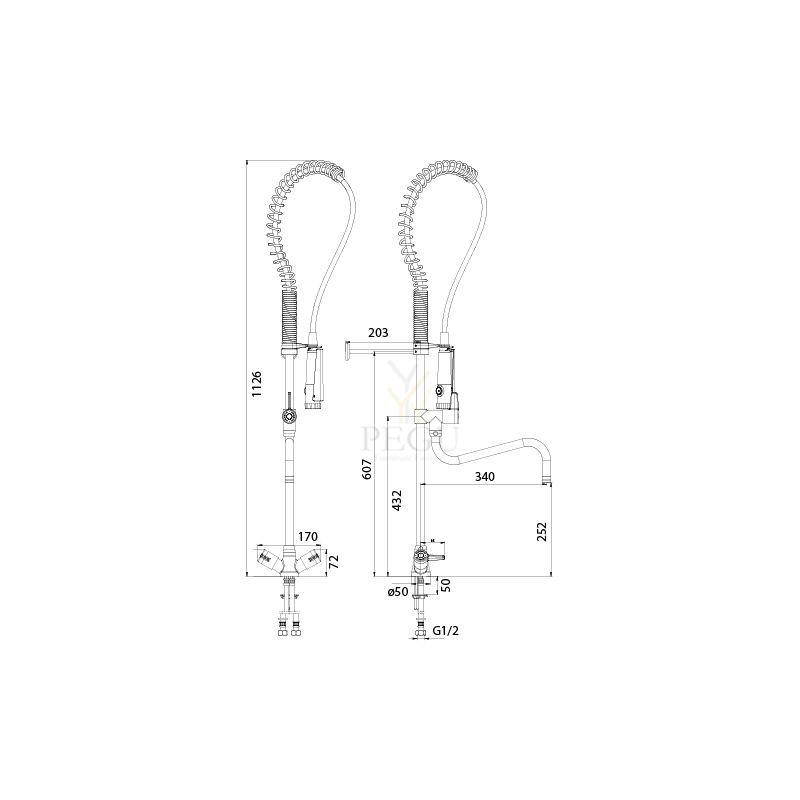

> TECHNICAL SPECIFICATIONS > Model:

Single-turn mixer with ceramic head 1/4 turn with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-scale shower nozzle - Locking hook for continuous flow - integrated NF non- return valve

Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
Interchangeable anti-tartar flow straightener

> Recommended working pressure:

1 to 5 bars

> Flow rate:

30 L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Chromed brass body and spout Injected metal hook
Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock)

> Delivered with :

1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Service operating temperature at 70 ° C maximum continuously

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

Sarnased tooted

Vola Köögi kangsegisti KV1, Oranz RAL 2008

Kangsegisti keraamilise töörganiga

Kahes suuna pööratava jooksutoruga.

Toru mõõt: 10 mm

Paigaldusava:30mm, max.35mm



Tootekood: QKV1-05 ,   Tarneaeg: 2-4 nädala
1319,00 €
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €

Kangsegisti keraamilise töörganiga

Kahes suuna pööratava jooksutoruga.

Paigaldusava:42mm, jooksutorule: 22mm



Tootekood: Q590M-40 ,   Tarneaeg: 2-4 nädalad
1923,00 €

KV6

Two-handle mixer with ¼ turn ceramic disc technology, double swivel spout with M22 aerator.
Hole cut out size: 32 mm.
Tootekood: QKV6-20 ,   Tarneaeg: 14-21 päeva
2009,00 €

Deck-mounted single hole mixer - 45 lpm
Ref. 5640T2

Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 195mm L. 200mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixing via two stainless steel rods.
F3/8" PEX flexibles.

Tootekood: DE-5640T2 ,   Tarneaeg: 7-14 päeva
409,00 €
